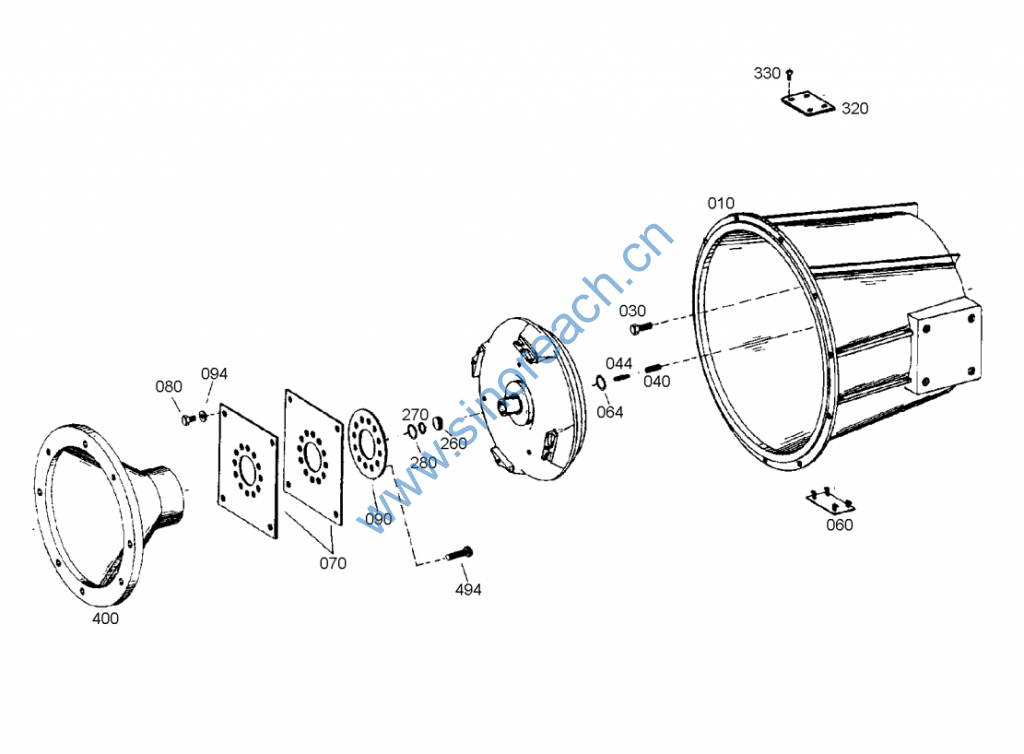

4WG-200 Transmission 4644 130 263 00 ENGINE CONNECT

010 4644 330 385 1 CONN.HOUSING K00569/04 EN-GJL-200 P
030 0636 010 460 14 HEXAGON SCREW M 10 X 50 DIN 931 ALT10.9 0,040 P
040 0631 329 100 2 SLOT.PIN 10 X 40 ISO 8752 ST 0,014 P
044 0631 329 072 2 SLOT.PIN 6 X 40 ISO 8752 ST 0,005 P
060 4139 301 485 1 COVER IN 4139 301 486 ULTRAMID A 0,015 P
064 0634 306 287 1 O-RING 70 X 3 ZFN 744 NBR -70-10 0,002 P
070 4644 330 239 H 2 DIAPHRAGM IN 4644 330 197 C45 BK W 0,440 P
080 0636 016 221 H 4 HEXAGON SCREW M 12 X 18 DIN 933 ALT10.9 0,030 P
090 4644 330 228 1 WASHER IN 4644 330 227 ST50 F500 0,165 P
094 0630 001 049 H 4 WASHER 13 DIN 125 ALT200HV A3 0,006 P
260 4166 330 123 1 WASHER ST37 0,038 P
270 0634 313 260 1 O-RING 25 X 3 ZFN 744 FPM -70-10 0,002 P
280 0630 502 015 H 1 RETAINING RING 30X1,2 DIN 472 0,002 P
320 4644 330 242 1 COVER ST1203 F270 ZFN410 0,260 P
330 0636 015 169 H 4 HEXAGON SCREW M 10 X 12 DIN 933 ALT8.8 0,010 P
400 4644 330 222 1 INTERM.RING GG-25 17,500 P
494 0636 900 127 12 CAP SCREW M 12 X 30 UFK FA.UNBRAKO 0,033 P
