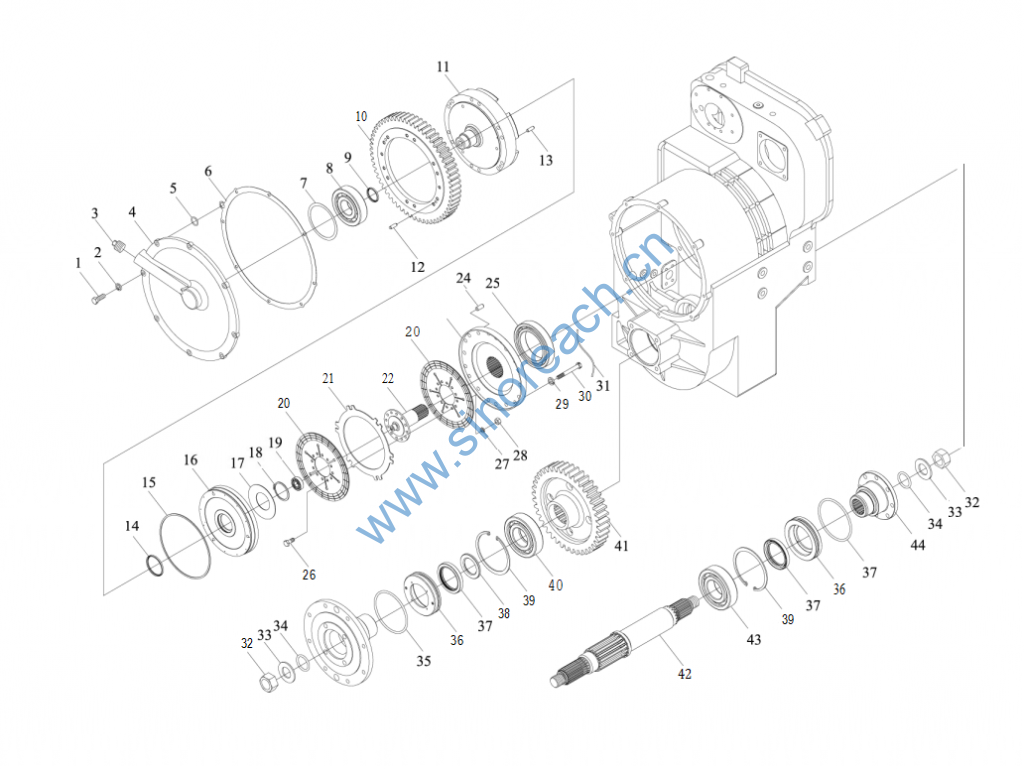

XG951 变速箱 Gearbox

00B1 118   GB5783-86   M10x30  8   Bolt

2 06B0003 GB93—87 10 8 Washer
3 03B0021 403062 1 Plug
4 52A0008 403002B 1 Cover
5 10B0005 GB1235-76 24×2.4 1 O ring
6 15B0002 403001A 1 Gasket
7 55A0012 403517 1 Shim
8 31B0009 GB276—94 641 1 1 Seal
9 11B0002 403102 45x53x5 1 Bearing
10 41A0007 403511 1 gear
11 69A0001 403512A 1 Cylinder body
12 08B0003 GB119—86 10×30 2 Pin
13 66A0002 403516 3 pin
14 11B0001 403101 70x78x5 1 Seal
15 11B0004 403010A 1 Seal
16 50A0001 403508A 1 Piston
17 27B0002 403513 1 Spring
18 07B0014 GB894.1 —86 65 1 Snap ring
19 31B0008 GB276—94 6204 1 Bearing
20 36C0002 403505—506 2 Disc assem
21 55A0011 403507 1 plate
22 62A0003 403502A 1 Shaft
23 59A0001 403501 1 Round plate
24 60A0012 403504 6 Pin
25 31B0007 GB276-94 6022 1 bearing
26 00B0017 GB5783—86 M8x20 12 Bolt
27 06B0009 GB93—87 8 12 Washer
28 03B0005 GB6170—86 M8 12 Nut
29 06B0013 GB93 -87 12 12 Washer
30 01B0022 403503 PJ2 1.25 100 12 Bolt
31 77A0006 2×1200 1 Wire
32 03B0017 GB889—86 M33x1. 5 2 Nut
33 06B0033 403303 2 Washer
34 10B0001 403315 52×5. 7 2 O ring
35 10B0002 GB1235— 76 130×5.7 2 O ring
36 52A0006 403304A 2 Seal base
37 11B0003 GB1387—92 70x95x12 2 Seal
38 54A0012 403305 1 Sleeve
39 07B0034 GB893. 1—92 130 2 Snap ring
40 32B0001 GB283—87 92312 1 Bearing
41 41A0006 40331 1 1 Gear
42 62A0002 403309D 1 Shaft
43 31B0006 GB276—94 6312 1 Bearing
44 58A0060 403301C 1 Flange
