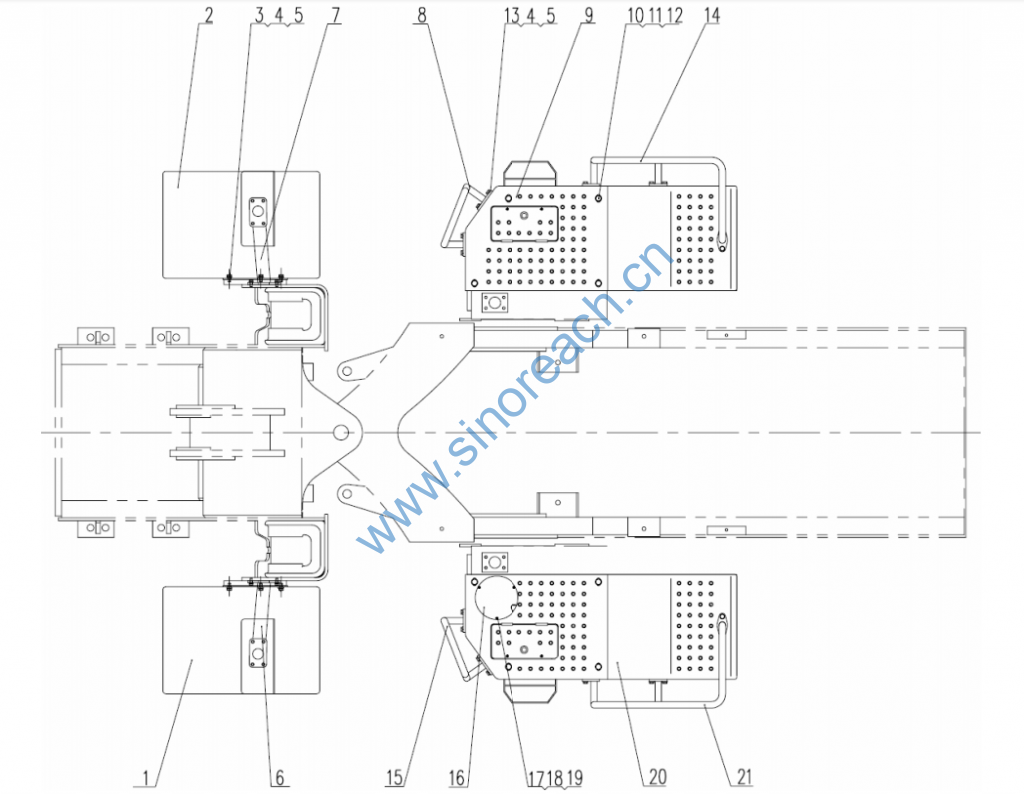

LW500F 台架总成 9103277 Platform Assembly

1 9363450 左挡泥板 Left Fender 1
2 9363446 右挡泥板 Right Fender 1
3 4005066 螺栓 M12X25 Bolt 6 GB5783-86
4 4404010 垫圈 12 Washer 15 GB97.1-85
5 4401009 垫圈 12 Washer 15 GB93-87
6 9338768 左灯架 Left Lamp Protector 1
7 9338773 右灯架 Right Lamp Protector 1
8 9364523 右前护栏 Right Front Armrest 1
9 9364452 右台架 Left Platform 1
10 4005096 螺栓 M16X35 Bolt 8 GB5783-86
11 4404012 垫圈 16 Washer 8 GB97.1-85
12 4401011 垫圈 16 Washer 8 GB93-87
13 4005069 螺栓 M12X40 Bolt 18 GB5783-86
14 9363454 右后护栏 Right Rear Armrest 1
15 9364509 左前护栏 Left Front Armrest 1
16 盖板 Cover 1
17 4202069 螺钉 M5X20 Screw 3
18 4004006 垫圈 5 Washer 3 GB97.1-85
19 4401005 垫圈 5 Washer 3 GB93-87
20 9364516 左台架 Left Platform 1
21 9364516 左后护栏 Left Rear Armrest 1
