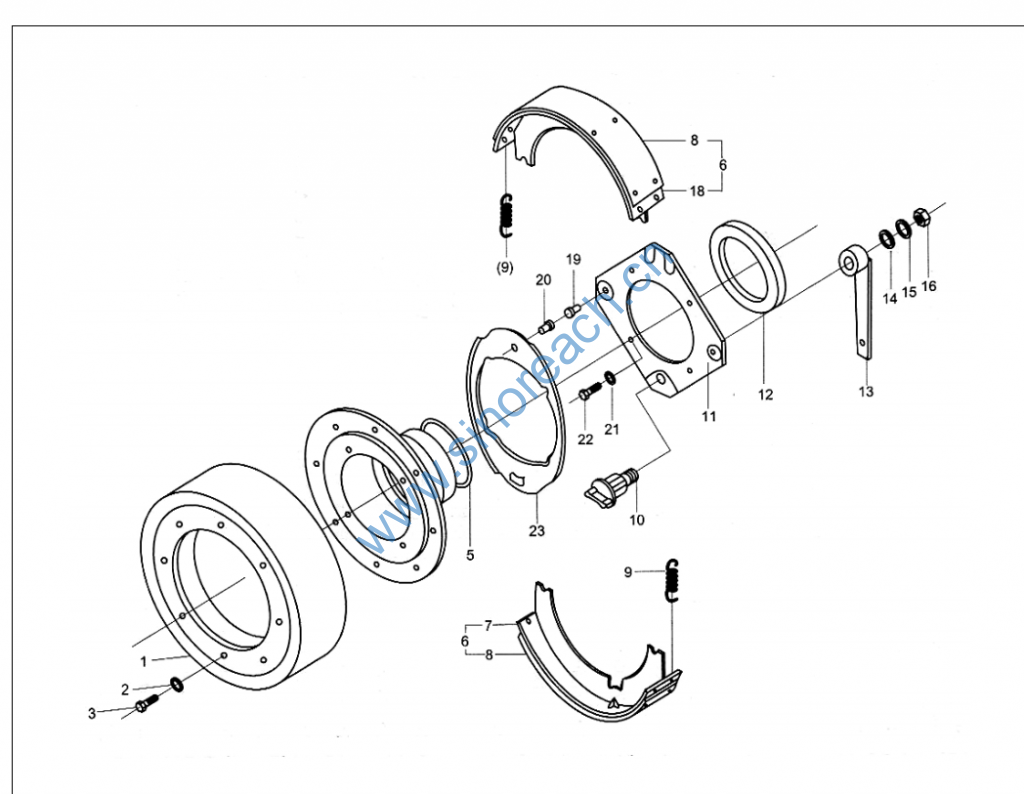

LW500F 制动器 9310265 Parking Brake

1 制动鼓 Brake Drum 1
2 4401009 垫圈 12 Washer 8 GB93-87
3 4007058 螺栓 M12X1.25X30 Bolt 8 GB5786-86
5 4801083 “O”形圈 56X3.5 O-ring 1 GB1235-76
6 制动衬片 Lining 2
7 筋板焊合(II) Welding 1
8 4512133 铆钉 5X12 Rivet 12 GB872-86
9 9320614 弹簧 Spring 4
10 拉杆轴 Camshaft 1
11 铆接座板 Anchor Plate 1
12 座圈 Washer 1
13 9 拉杆 Lever 1
14 4402007 垫圈 16 Washer 1 GB95-85
15 4401011 垫圈 16 Washer 1 GB93-87
16 4301012 螺母 M16 Nut 1 GB6170-86

18 筋板焊合(I) Welding 1
19 9320618 铆钉 Rivet 2
20 9320628 铆钉 Rivet 1
21 4401010 垫圈 14 Washer 6 GB93-87
22 9320135 联接螺钉 Bolt 6
23 板 Plate 1
