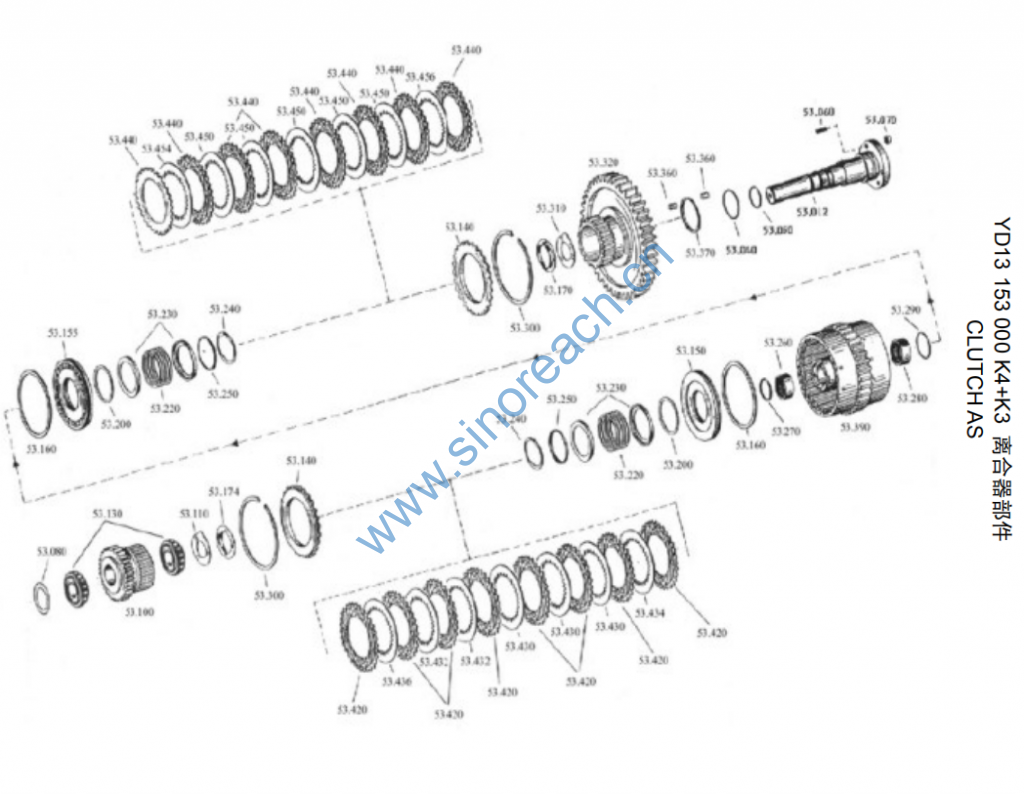

CLG414 YD13 153 000 K4+K3 离合器部件 CLUTCH AS

012 YD13 353 012 000 轴(153) AXLE 1
040 0634 313 536 000 O 形圈 O-RING 1
050 0734 401 106A 000 搭扣密封环 SEALING RING 3
060 GB/T898-1988 000 螺柱 STUD 3
070 GB/T6170-2000 000 螺母 NUT 3
080 0769 120 468 000 调整垫片 REGULATING SHIM 1
100 YD13 353 002 000 齿轮(K4) Z=32 GEAR 1
110 0730 150 774 000 承磨垫 THRUST WASHER 1
130 YD13 351 007 000 轴承
(WTB35×64×38) BEARING 1
140 4642 308 185 000 端垫 END SHIM 2
150 4644 353 051 000 活塞 PISTON 1
155 4644 353 051A 000 活塞 PISTON 1
160 0750 112 141 000 密封圈 PROF. SEAL RING 2
170 4644 351 094 000 止推垫圈 THRUST WASHER 1
174 4642 308 555 000 止推垫圈 THRUST WASHER 1
200 0750 112 140 000 密封圈 PROF SEAL RING 2
220 0732 041 183 000 压缩弹簧 COMPR.SPRING 2
230 4642 308 083 000 导向环 GUIDE RING 4
240 0630 531 346A 000 挡圈 AV55 RETAINING RING 1
250 4642 308 084 000 导向环 GUIDE RING 2
260 0750 115 182 000 滚针轴承 NEEDLE SLEEVE 1
270 0732 513 610 000 弹性挡圈 FLEXIBLE RETAINING
RING 1
280 0635 303 204 000 滚针轴承 NEEDLE SLEEVE 1
290 0730 513 611 000 挡圈 SNAP RING 1
300 0769 124 115 000 弹性挡圈 FLEXIBLE RETAINING
RING 2
310 0730 150 779 000 止推垫圈 THRUST WASHER 1
320 YD13 353 011 000 齿轮 Z=55 GEAR (K3) 1
340 0750 115 109 000 滚针组 NEEDLE SET 1
360 0750 119 048 000 滚子组 ROLLER SET 1
390 YD13 253 001 000 离合器组件 CLUTCH AS 1
420 0501 309 329 000 外摩擦片 O.CLUTCH DISC 8
430 4462 308 332A 000 内摩擦片 S=2.0 IN. FRICTIONAL DISC 3
432 4462 308 330 000 内摩擦片 S=1.5 IN. FRICTIONAL DISC 2
434 4462 308 331 000 内摩擦片 S=2.5 IN. FRICTIONAL DISC 1
436 0769 129 011 000 内摩擦片
S=1,5/2,0/2,5 IN FRICTIONAL DISC 1
440 0501 309 329A 000 外摩擦片 S=2,0 EX. FRICTIONAL DISC 8
450 4462 308 332 000 内摩擦片 S=2.0 IN. FRICTIONAL DISC 1
454 4462 308 331A 000 内摩擦片 S=2.5 IN. FRICTIONAL DISC 1

456 0769 129 011A 000 内摩擦片
S=1,5/2,0/2,5 IN. FRICTIONAL DISC 1
