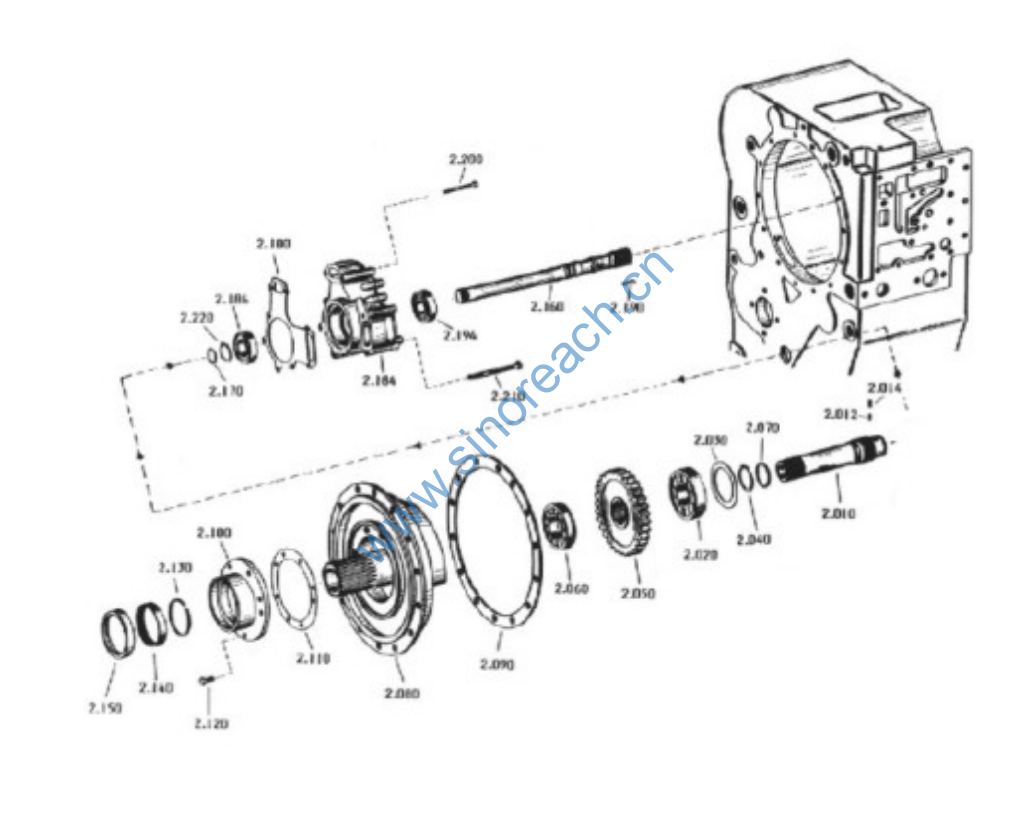

CLG414 YD13 102 000 输入部件 INPUT AS

010 YD13 302 002 000 涡轮轴 TURBINE SHFAT 1
020 GB/T276-1994C 000 球轴承 6308 BALL BEARING 1
030 0769 120 427 000 调整垫片 REGULATING SHIM 1
040 0630 501 031 000 挡圈 40×1.75 RETAINING RING 1
050 YD13 302 004 000 输入齿轮 Z=50 INPUT GEAR 1
060 GB/T283-1994 000 滚柱轴承 NJ209E ROLLER BEARING 1
070 0734 317 252 000 活塞环 PISTON RING 1
080 YD13 302 001 000 配油法兰 OIL FEED FLANGR 1
090 4644 302 211 000 纸垫 GASKET 1
100 4642 302 136 000 泵轮轴承座 BEARING SEAT 1
110 YD13 302 005 000 纸垫 GASKET 1
120 GB/T5783-2000 000 六角头螺栓 BOLT 8
130 0734 401 078 000 活塞环 PISTON RING 1
140 0735 298 027 000 滚针轴承 NEEDLE SLEEVE 1
150 0750 111 231 000 密封圈 SHAFT SEAL 1
160 YD13 302 003 000 辅助驱动轴 STAND-BY DRIVE
SHAFT 1
170 0634 406 025 000 搭扣密封环 SEALING RING 1
180 4644 301 265 000 密封圈 GASKET 1
184 0151 004 171 000 齿轮泵 GEAR PUMP 1
186 GB/T276-1994B 000 球轴承 6206-RS BALL BEARING 1
190 GB/T1096-1979 000 平键 KEY 1
194 GB/T276-1994A 000 球轴承 6206-RS BALL BEARING 1
200 GB/T5782-2000 000 六角头螺栓 BOLT 1
210 GB/T5782-2000A 000 螺栓 BOLT 4
220 0630 501 024 000 挡圈 RETAINING RING 1
