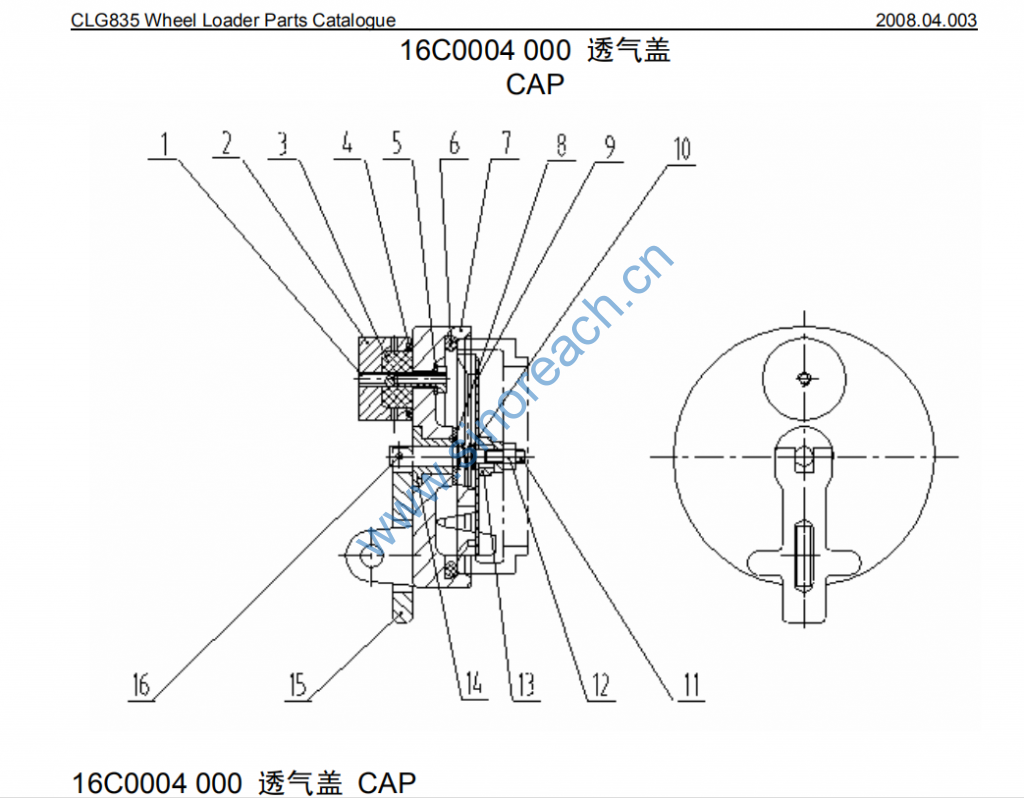

CLG835 16C0004 000 透气盖 CAP

1 02B0028 螺栓 BOLT M6 1
2 53A0122 盖 CAP 1
3 88A0111 海绵垫 SPONGE
WASHER 1
4 12B0241 GB3452.1-92 O形圈 “O” RING 25X2.65 1
5 06B0024 GB97.1-85 垫圈 WASHER 6-140HV-ZN.D 1
6 12B0230 GB3452.1-92 O形圈 “O” RING 89.6X5.3 1
7 53A0120 盖 CAP 1
8 06B0086 GB96-85 垫圈 WASHER 8-140HV-ZN.D 1
9 10A0240 弹性板 板 1
10 75A0094 弹簧 SPRING φ0.8X10X14 1
11 01B0197 螺杆 BOLT 1
12 03B0036 GB6170-86 螺母 NUT M6-8-ZN.D 1
13 03B0232 螺母 NUT M6 1
14 55A0290 套 SLEEVE 1
15 13A0208 手柄 LEVER 1
16 08B0061 GB119-86 销 PIN B3X24 1
