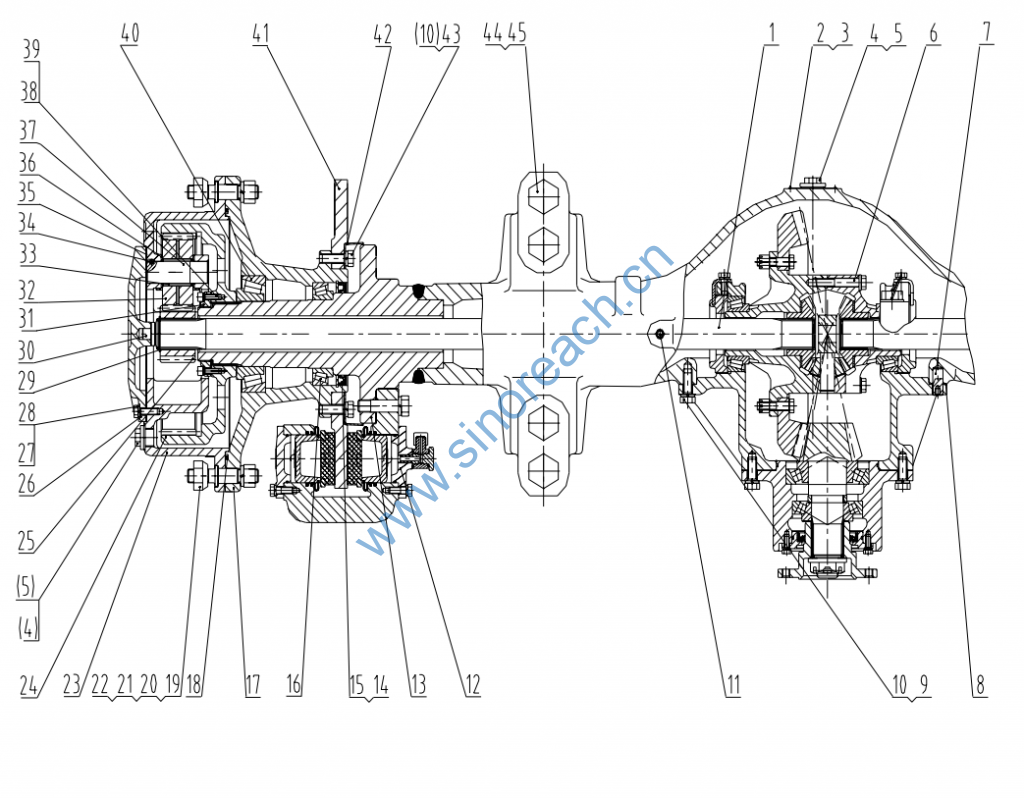

CLG835 01E0057 001 前桥总成 FRONT AXLE ASSEMBLY

1 62A0058 半轴 AXLE
SHAFT 2
2 74A1193 桥铭牌 NAME
PLATE 1
3 09B0002 GB827-86 铆钉 BOLT 2X5 4
4 03B0212 螺塞 NUT 4
5 06B0055 垫圈 SEAL 27 4
6 41C0086 主传动总成 PRIMARY
REDUCTION 1
7 60A0011 ZL50C.2-26 定位销 PIN 1
8 81A0076 垫片 GASKET 1
9 00B0025 GB5783-86 螺栓 BOLT M14X35-8.8-ZN.D 12
10 06B0013 GB93-87 垫圈 WASHER 14 52
11 03B0406 Q9001 通气塞 BREATHER Z1/8-27 1
12 45C0004 ZL50C.2.2 夹钳总成
TORQUE
PLATE
ASSEMBLY
2
13 24D0021 桥壳体轮边
支承
AXLE
SUPPORTE
R
1
14 13B0251 BABSL 463459 油封 SEAL 120X150X12 2
15 07B0066 GB893.1-86 挡圈 SNAP 150 2
16 23B0046 GB/T297-1994 圆锥滚子轴
承32020
TAPERED
ROLLER
BEARING
100X150X32 2
17 71A0090 轮毂 WHEEL HUB 2
18 12B0365 GB3452.1-92 O形圈 “O” RING 355X5.3 2
19 01B0362 轮辋螺栓 RIM BOLT 20X1.5 20
20 03B0201 120-3103018 轮辋螺母 RIM NUT 20
21 03B0150 GB6171-86 螺母 NUT M20X1.5-8-ZN.D 20
22 06B0019 GB93-87 垫圈 WASHER 20 20
23 70A0074 行星轮架 PLANNER
CARRIER 2
24 41A0076 内齿轮 RING GEAR 2
25 41A0077 太阳轮 SUN GEAR 2
26 53A0244 盖 COVER 2
27 00B0019 GB5783-86 螺栓 BOLT M10X30-8.8-ZN.D 12
28 06B0002 GB93-87 垫圈 WASHER 10 12
29 07B0049 GB894.1-86 挡圈 SNAP RING 45 2
30 61A0019 ZL50C.2-20 轴 SPIN 2
31 53A0250 圆螺母 ADJUSTING
NUT 2
32 41A0078 行星齿轮 PLANETARY
GEAR 6

33 20B0042 滚针 NEEDLE
ROLLER 168
34 20B0037 GB308-89 钢球 STEEL BOLL 6 6
35 81A0075 密封垫 GASKET 2
36 20A2273 垫片 THRUST
PLATE 12
37 60A0288 行星齿轮轴 PLANNER
SHAFT 6
38 04B0049 GB70-85 螺钉 BOLT M8X25-8.8-ZN.D 4
39 06B0006 GB93-87 垫圈 WASHER 8 4
40 23B0045 GB/T297-1994 圆锥滚子轴
承32219
TAPERED
ROLLER
BEARING
95X170X45.5 2
41 52A0038 ZL40B.2-19 制动盘 BRAKE
DISC 2
42 27A0052 ZL40B.2-20 防尘罩 DUST
PROOF CAP 2
43 00B0273 GB5783-86 螺栓 BOLT M14X40-8.8-ZN.D 40
44 01B0211 ZL30.2-1 前桥安装螺
栓
MOUNTING
BOLT 8
45 03B0195 CB08033-3 锁紧螺母 LOCK NUT M30X2 8
