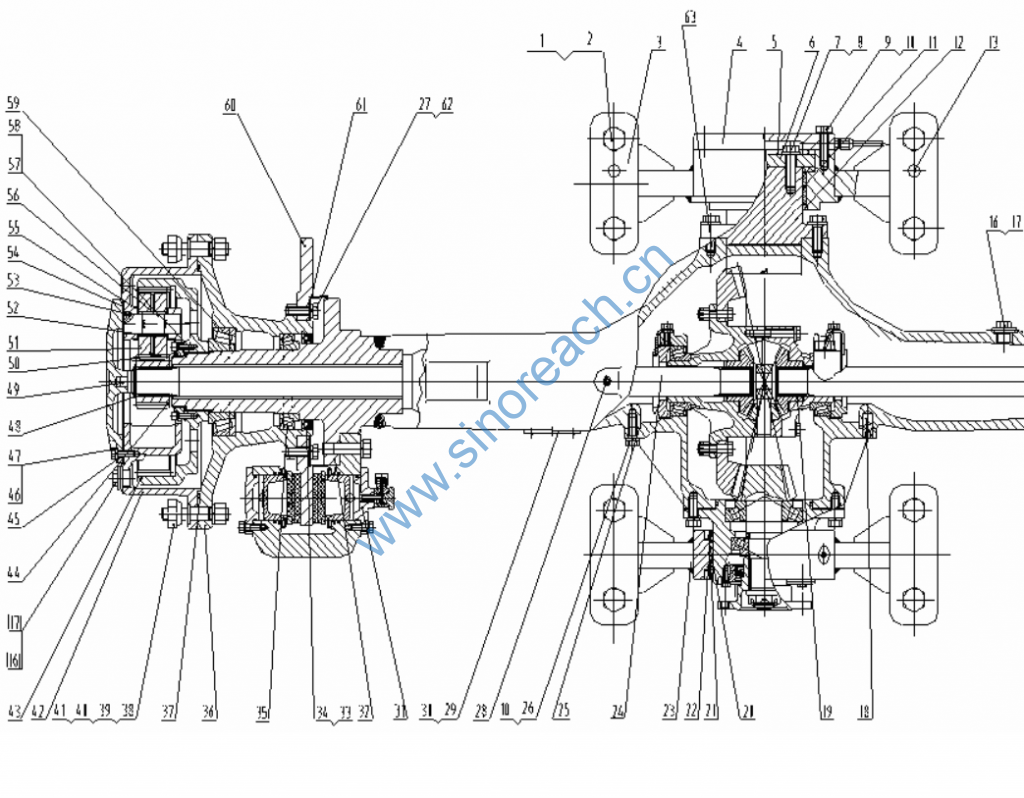

CLG835 01E0080 006 后桥总成 REAR AXLE

1 01B0167 GB5785-86 螺栓 BOLT M24×2×130-10.9-Z
N.D
1
2 03B0200 CB082428-3 锁紧螺母 LOCK NUT M24×2 8
3 00D0425 后摆动支架 REAR
PENDULUM
BRACKET
1
4 53A0073 ZL50G.3.1-1 盖 COVER 1
5 88A0157 ZL50F.3-6 止推垫片 THRUST
GASKET
2
6 56A0155 压紧板 COVER 1
7 00B0246 GB5783-86 螺栓 BOLT M16×55-10.9-ZN.D 4
8 06B0177 5P8247 垫圈 WASHER 12
9 00B0057 GB5783-86 螺栓 BOLT M14×45-8.8-ZN.D 6
10 06B0103 ZL50F.3-2 淬硬垫圈 WASHER 18
11 83A0113 衬套 BUSHING 1
12 35C0047 ZL50F.3.2 密封圈 SEAL 1
13 00A0260 ZL50C .3 Ⅲ -2 销 PIN 2
14 61A0368 后支承轴 REAR
SUPPORT
SPINDLE
1
15 00B0095 GB5783-86 螺栓 BOLT M16×45-10.9-ZN.D 8
16 03B0212 螺塞 4
17 06B0055 JB982-77 垫圈 WASHER 27 4
18 60A0011 ZL50C.2-26 定位销 PIN 1
19 41C0088 主传动总成 PRIMARY
REDUCTION
1
20 13B0147 GB9877.2-88 密封圈 SEAL W170×200×15D 2
21 83A0108 衬套 BUSHING 1
22 07B0055 挡圈 SNAP RING 1
23 00D0424 前摆动支架 FRONT
PENDULUM
BRACKET
1
24 62A0058 半轴 AXLE SHAFT 2
25 81A0076 垫片 GASKET 1
26 00B0366 GB5783-86 螺栓 BOLT M14×35-10.9-ZN.D 12
27 06B0013 GB93-87 垫圈 WAHSER 14 40
28 03B0406 通气塞 BREATHER Z1/8-27 1
29 74A1194 桥铭牌 NAMEPLATE 1
30 09B0002 GB827-86 铆钉 RIVET 2×5 4
31 45C0004 ZL50C.2.2 夹钳总成 TORQUE
PLATE
ASSEMBLY
2
32 24D0028 桥壳体轮边支
承
SUPPORT 1

33 13B0251 BABSL 463459 油封 SEAL 120×150×12 2
34 07B0066 GB893.1-86 挡圈 SNAP RING 150 2
35 23B0046 GB/T297-1994 圆锥滚子轴承
32020
TAPERED
ROLLER
BEARING
100×150×32 2
36 71A0090 轮毂 WHEEL HUB 2
38 01B0362 轮辋螺栓 RIM BOLT 20×1.5 20
39 03B0201 120-3103018 轮辋螺母 RIM NUT 20
40 03B0150 GB6171-86 螺母 NUT M20×1.5-8-ZN.D 20
41 06B0019 GB93-87 垫圈 WASHER 20 20
42 70A0074 行星轮架 PLANNER
CARRIER
2
43 41A0076 内齿轮 RING GEAR 2
44 41A0077 太阳轮 SUN GEAR 2
45 53A0244 盖 COVER 2
46 00B0019 GB5783-86 螺栓 BOLT M10×30-8.8-ZN.D 12
47 06B0002 GB93-87 垫圈 WASHER 10 12
48 07B0049 GB894.1-86 挡圈 SNAP RING 45 2
49 61A0019 ZL50C.2-20 轴 SPIN 2
50 53A0250 圆螺母 ADJUSTING
NUT
2
51 41A0078 行星齿轮 PLANETARY
GEAR
6
52 20B0042 滚针 NEEDLE
ROLLER
168
53 20B0037 GB308-89 钢球 STEEL BOLL 6 6
54 81A0075 密封垫 GASKET 2
55 20A2273 垫片 THRUST PLATE 12
56 60A0288 行星齿轮轴 PLANNER
SHAFT
6
57 04B0049 GB70-85 螺钉 BOLT M8×25-8.8-Zn.D 4
58 06B0006 GB93-87 垫圈8 WASHER 8 4
59 23B0045 GB/T297-1994 圆锥滚子轴承
32219
TAPERED
ROLLER
BEARING
95×170×45.5 2
60 52A0038 ZL40B.2-19 制动盘 BRAKE DISC 2
61 27A0052 ZL40B.2-20 防尘罩 DUST PROOF
CAP
2
62 00B0273 GB5783-86 螺栓 BOLT M14×40-8.8-ZN.D 40
63 66A0013 ZL50F.3-8 销 PIN 2
