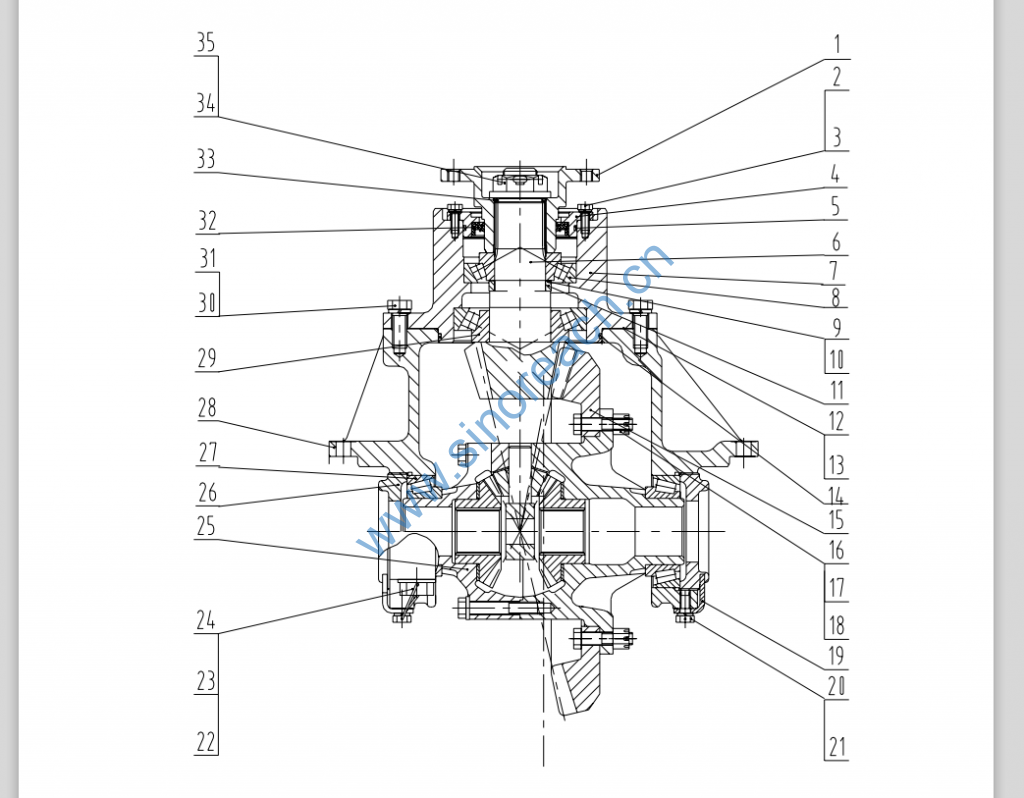

CLG835 41C0088 005 后桥主传动总成 PRIMARY REDUCTION ASSEMBLY

1 04A0212 法兰 FLANGE 1
2 00B0075 GB5783-86 螺栓 BOLT M8×20-8.8-ZN.D 4
3 06B0006 GB93-87 垫圈 WASHER 8 4
4 53A0243 油封座 SEAL
RETAINER
1
5 12B0288 GB3452.1-1992 O形圈 “O” RING 103.X3.55 1
6 43A0045 主传动螺旋
锥齿轮 ( 右
旋)
SPIRAL
BEVEL
PINION(LEFT)
1
7 71A0094 轴承座 SUPPORT 1
8 23B0044 GB/T297-1994 圆锥滚子轴
承31310
TAPERED
ROLLER
BEARING
50X110X29.25 1
9 57A0171 调整垫 SHIM 0.05 2
10 57A0172 调整垫 SHIM 0.10 1
11 55A0491 轴套 SPACER 1
12 57A0173 调整垫 SHIM 0.20 2
13 81A0074 垫片 GASKET 1
14 12B0375 GB3452.1-1992 O形圈 “O” RING 150X3.55 1
15 43A0046 大螺旋锥齿
轮(左旋）
SPIRAL
BEVEL RING
GEAR(RIGHT)
1
16 01B0460 GB5785-86 螺栓 BOLT M12X1.5 X
50-10.9-ZN.D
12
17 03B0717 GB6171-86 螺母 NUT M12X1.5-10-ZN.D 12
18 06B0176 5P8245 垫圈 WASHER 12
19 21A0040 ZL50C.2.1-14 锁紧片 THRUST
PLATE
2
20 02B0012 GB32.1-88 螺栓 BOLT M10X20-8.8-ZN.D 2
21 06B0002 GB93-87 垫圈 WASHER 10 2
22 02B0141 GB32.1-88 螺栓 BOLT M20X80-10.9-ZN.
D
4
23 06B0271 垫圈 WASHER 4
24 40B0006 铁丝 WIRE φ1.5×450 2
25 41C0087 差速器 DIFFERENTIA
L
1
26 03B0429 调整螺母 NUT 2
27 23B0043 GB/T297-1994 圆锥滚子轴
承33113
BEARING 65X110X34 2
28 51C0090 托架总成 CARRIER
ASSEMBLY
1
29 23B0019 GB/T297-1994 圆锥滚子轴
承31312
BEARING 60X130X33.5 1
30 00B0025 GB5783-86 螺栓 BOLT M14X35-8.8-ZN.D 10
31 06B0013 GB93-87 垫圈 WAHSER 14 10
32 13B0169 B1SL 348203 油封 SEAL 70X95X13 1
33 12B0105 GB3452.1-92 O形圈 “O” RING 42.5X5.3 1
34 03B0050 BS305-31 带槽螺母 SLOTTED NUT 1
35 08B0032 GB91-86 销 PIN 6.3X60 1
