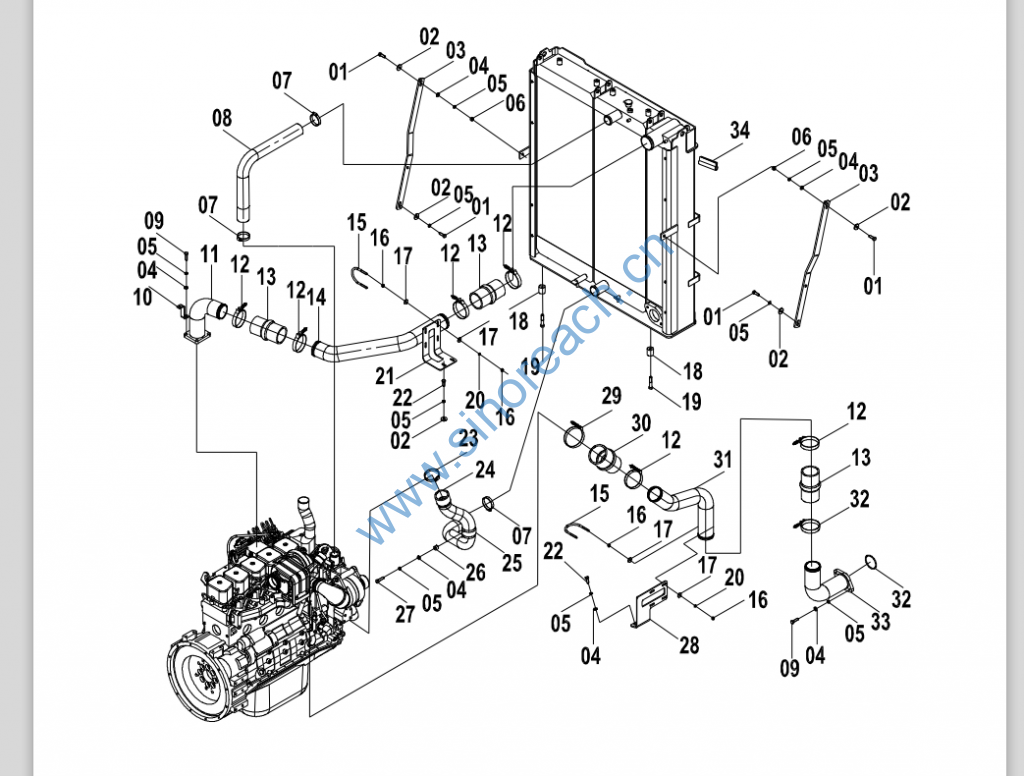

CLG920E/922E 40C3382(A) 散热器安装 RADIATOR SUPPORT

01 00B0019 000 螺栓 BOLT 4
02 06B0030 000 垫圈 WASHER 6
03 29A2885 000 拉杆 LINKAGE 2
04 06B0001 000 垫圈 WASHER 9
05 06B0002 000 垫圈 WASHER 13
06 03B0053 000 螺母 NUT 2
07 09C0029 001 软管卡箍 CLAMP 3 43828C
08 32A1341 002 水管 WATER HOSE 1
09 00B0002 000 螺栓 BOLT 4
10 21A3540 000 弯板 PLATE 1
11 72A1372 000 进气管 INTAKE PIPE 1
12 09C0772 001 T 型抱箍 T-CLAMP 7
13 32A1094 000 进气软管 INTAKE HOSE 3
14 38A3895 000 中冷器钢管 PIPE 1
15 26A0515 002 紧固圈 RETAINING RING 4
16 03B0021 000 螺母 NUT 16
17 06B0086 000 垫圈 WASHER 16
18 34A0317 001 垫套 BUSHING 6
19 01B0010 000 螺栓 BOLT 6
20 06B0006 000 垫圈 WASHER 4
21 06A2112 000 弯板 PLATE 1
21 21A9882 000 弯板 PLATE 1 06A2112
22 00B0012 000 螺栓 BOLT 4
23 09C0028 001 软管卡箍 CLAMP 1 43828D
24 32A1342 000 水管 WATER HOSE 1
25 20A7534 001 管夹 CLAMP 1
26 55A3541 000 衬套 BUSHING 1
27 00B0029 000 螺栓 BOLT 1
28 21A9881 000 弯板 PLATE 1
29 09C0774 001 T 型抱箍 T-CLAMP 1
30 32A1093 000 进气软管 INTAKE HOSE 1
31 38A3896 000 中冷器钢管 PIPE 1
32 80A0702 000 密封圈 SEAL RING 1
33 72A1838 000 进气管 INTAKE PIPE 1
34 84A2285 000 胶条 RUBBER STRIP 2
