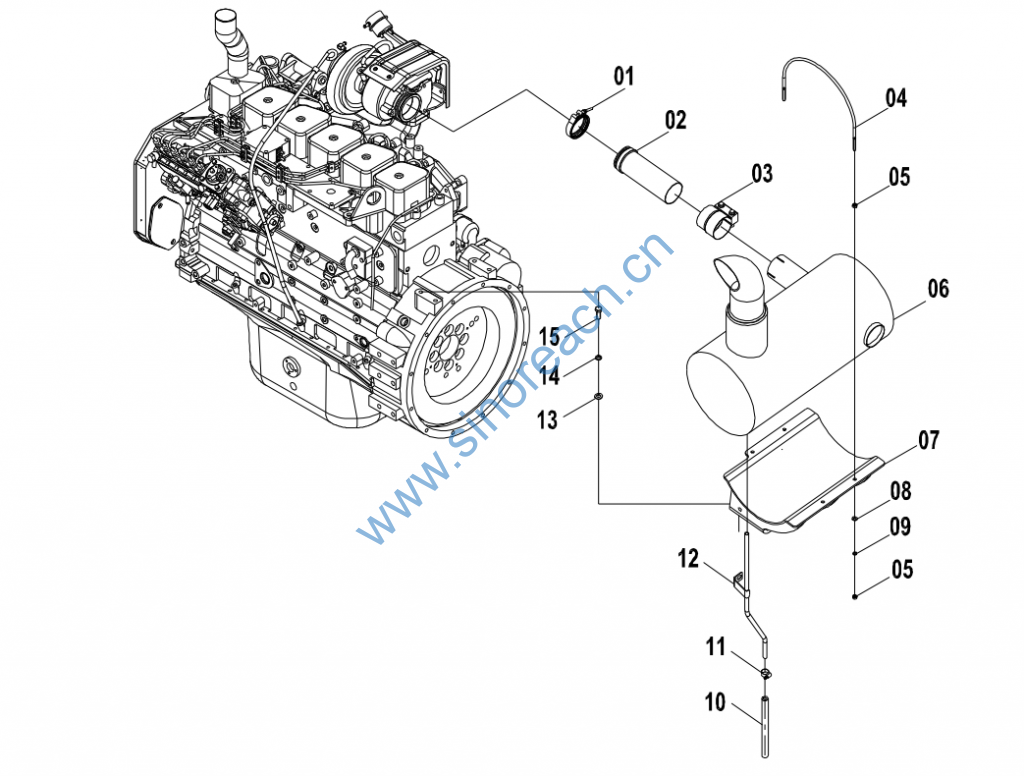

CLG920E/922E 40C3386(B) 消声器安装 MUFFLER

01 50C0125 002 V 型管夹 V-CLAMP 1
02 38A1470 001 钢管 TUBE 1
03 09C0530 001 管夹 CLAMP 1
04 26A2066 000 紧固箍 CLAMP 2
05 03B0021 000 螺母 NUT 8
06 40C2456 000 消音器 MUFFLER 1
07 00D7279 001 消音器支架 BRACKET
08 06B0005 000 垫圈 WASHER 4
09 06B0006 000 垫圈 WASHER 4
10 30A0993 002 软管 HOSE 1
11 15B0080 001 软管卡箍 CLAMP 1
12 10D7109 000 钢管 TUBE 1
13 06B0002 000 垫圈 WASHER 4
13 06B0007 000 垫圈 WASHER 4 06B0002
14 06B0008 000 垫圈 WASHER 4 06B0001
14 06B0001 000 垫圈 WASHER 4
15 00B0002 000 螺栓 BOLT 4
15 00B0035 000 螺栓 BOLT 4 00B0002
