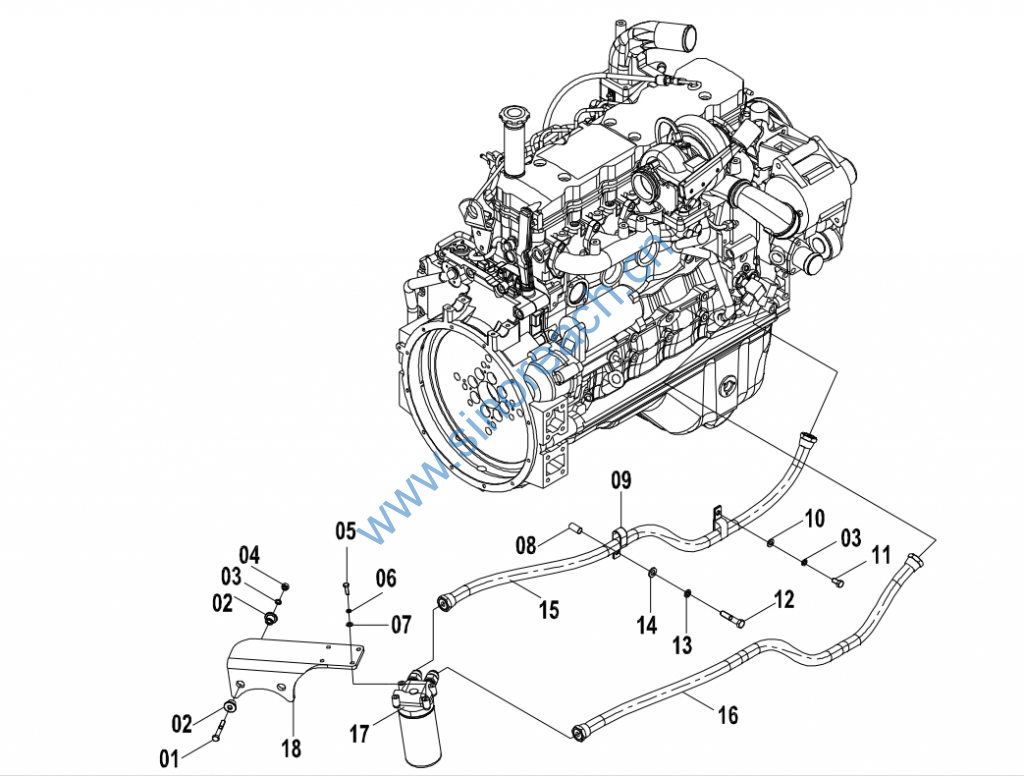

CLG920E/922E 40C3479(A) 机油滤安装 FILTER OIL SUPPORT

01 00B0018 000 螺栓 BOLT 2
02 55A3579 000 搭子 LUG 4
03 06B0002 000 垫圈 WASHER 3
04 03B0053 000 螺母 NUT 2
05 00B0085 000 螺栓 BOLT 4
06 06B0006 000 垫圈 WASHER 4
07 06B0005 000 垫圈 WASHER 4
08 34A0299 002 支撑管 PIPE 1
09 09C0157 002 双管夹片 CLAMP 2 L20-8103103A
10 06B0001 000 垫圈 WASHER 1
11 00B0005 000 螺栓 BOLT 1
12 01B0010 000 螺栓 BOLT 1
13 06B0008 000 垫圈 WASHER 1
14 06B0007 000 垫圈 WASHER 1
15 06C3475 003 机油管 ENGINE OIL HOSE 1 3864036
16 06C3474 003 机油管 ENGINE OIL HOSE 1 3864172
17 40C0431 002 机油滤 ENGINE OIL FILTER 1 LF9135
18 23A8651 000 支架 BRACKET 1
