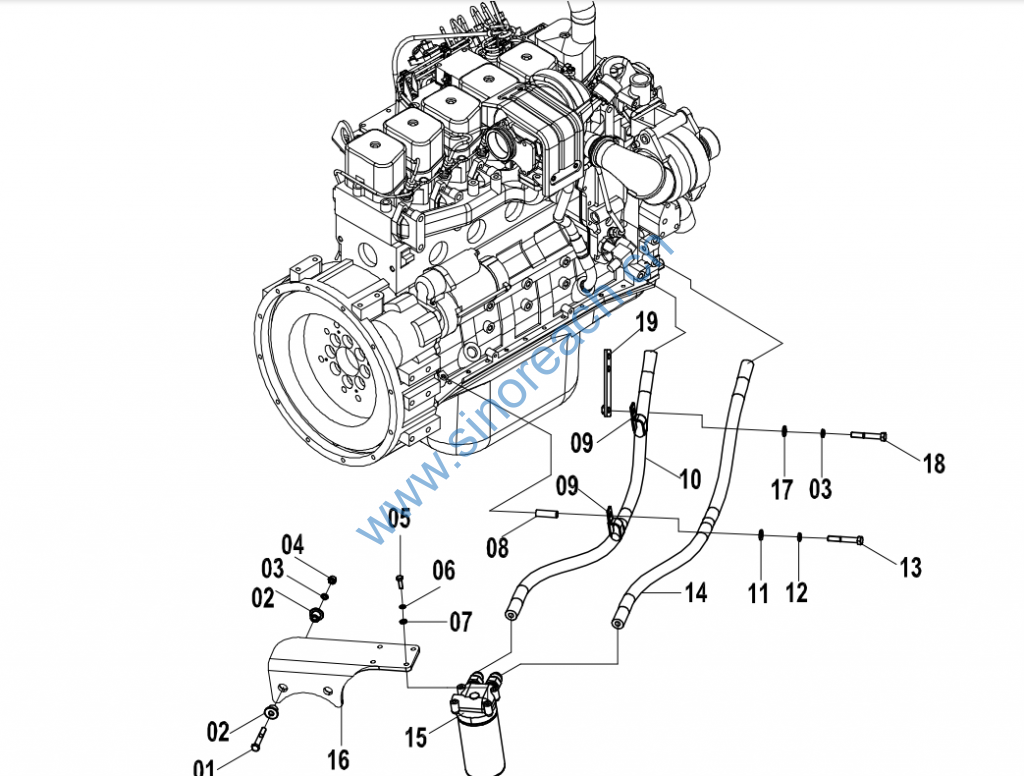

CLG920E/922E 40C3385(B) 机油滤安装 FILTER;OIL SUPPORT

01 00B0018 000 螺栓 BOLT 2
02 55A3579 000 搭子 LUG 4
03 06B0002 000 垫圈 WASHER 3
04 03B0053 000 螺母 NUT 2
05 00B0085 000 螺栓 BOLT 4
06 06B0006 000 垫圈 WASHER 4
07 06B0005 000 垫圈 WASHER 4
08 34A1799 000 支撑管 PIPE 1
09 09C0157 002 双管夹片 CLAMP 1
10 06C3475 003 机油管 ENGINE OIL HOSE 1
11 06B0007 000 垫圈 WASHER 1
12 06B0008 000 垫圈 WASHER 1
13 01B0009 000 螺栓 BOLT 1
14 06C3474 003 机油管 ENGINE OIL HOSE 1
15 40C1041 003 机油滤 ENGINE OIL FILTER 1
16 23A8651 000 支架 BRACKET 1
17 06B0001 000 垫圈 WASHER 2
18 00B0005 000 螺栓 BOLT 1 00B0012
18 00B0012 000 螺栓 BOLT 2
19 00D5260 000 支架 BRACKET 1 A
