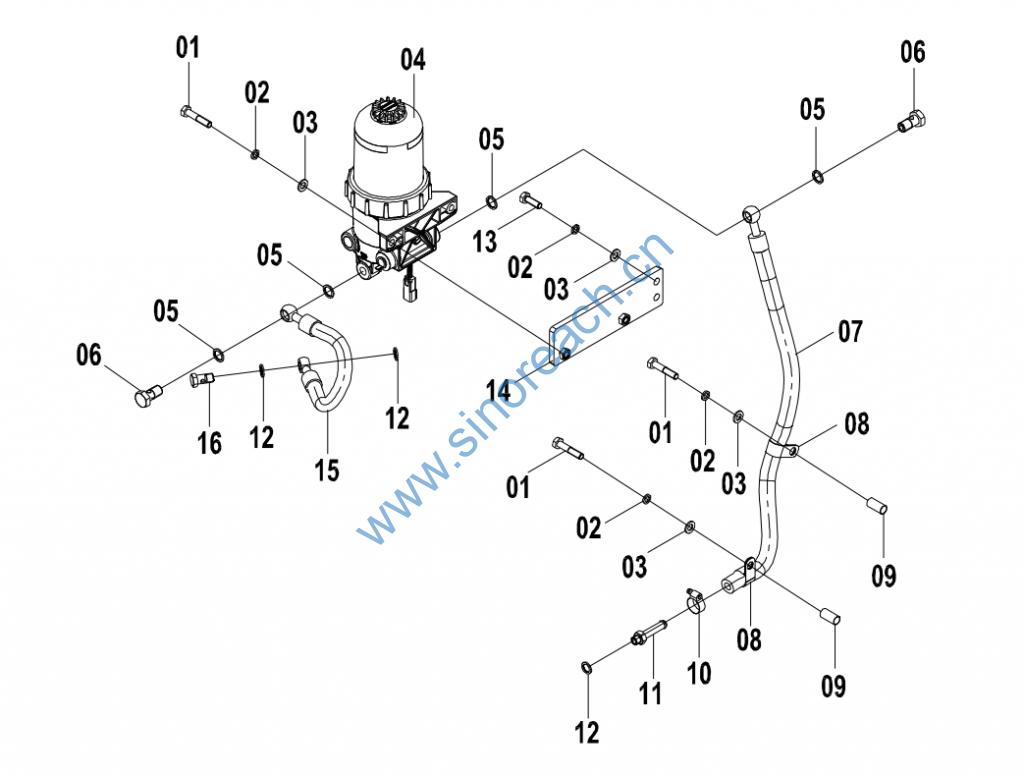

CLG920E/922E 40C5521(B) 燃油过滤器安装 FUEL FILTER SUPPORT

1 01V0386 000 螺栓 BOLT 4
2 06B0002 000 垫圈 WASHER 6
3 06B0001 000 垫圈 WASHER 6
4 40C5789 000 燃油过滤器 FUEL FILTER 1
5 34C0091 000 垫圈 WASHER 4
6 88A0917 000 螺钉 SCREW 2
7 66C2982 000 燃油管 FUEL HOSE 1
8 20A1854 001 线夹 CLIP 2
9 34A0299 002 支撑管 PIPE 2
10 09C0027 001 软管卡箍 CLAMP 1
11 00A3434 002 接头 JOINT 1
12 06B0117 000 垫圈 WASHER 3
13 00B0019 000 螺栓 BOLT 2
14 02D5913 000 支架 BRACKET 1
15 06C9683 000 柴油管 FUEL HOSE 1
16 88A0096 001 螺钉 SCREW 1
