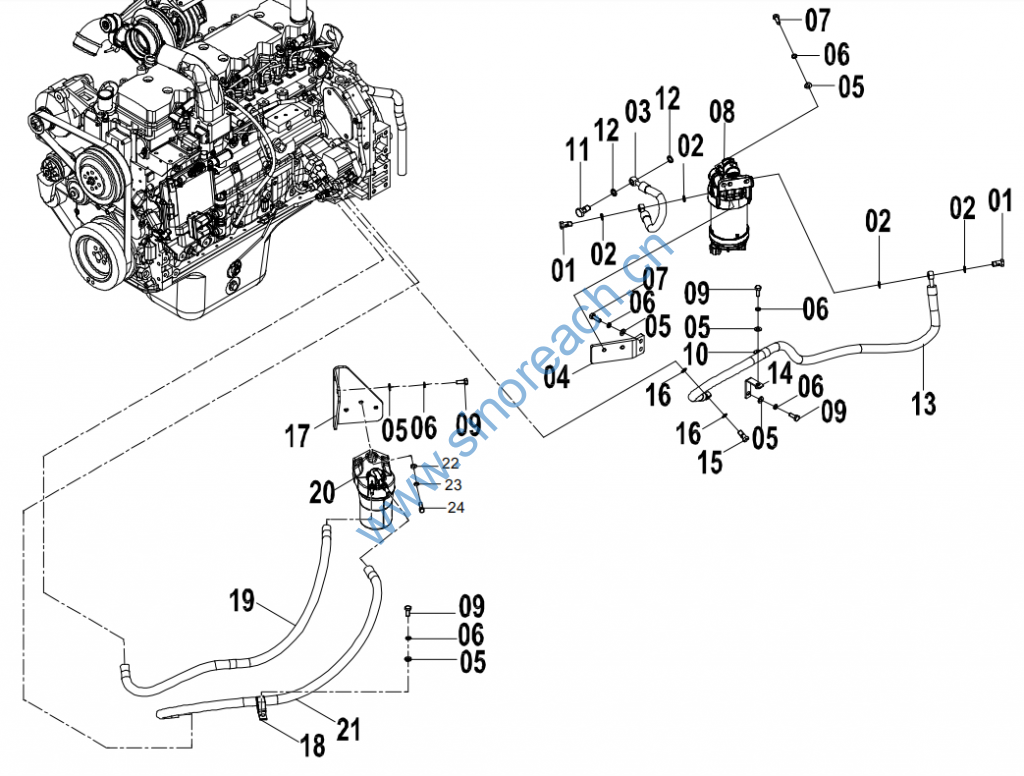

CLG920E/922E 40C5521(C) 滤清器 FILTE

1 88A0096 001 螺钉 SCREW 2 11A0104
2 06B0117 000 垫圈 WASHER 4
3 06C9683 000 柴油管 FUEL HOSE 1
4 29A7670 000 弯板 PLATE 1
5 06B0001 000 垫圈 WASHER 9
6 06B0002 000 垫圈 WASHER 9
7 00B0019 000 螺栓 BOLT 4
8 40C5507 000 燃油过滤器 FUEL FILTER 1
9 00B0012 000 螺栓 BOLT 5
10 20A1854 001 线夹 CLIP 1
11 88A0917 000 螺钉 SCREW 1
12 34C0091 000 垫圈 WASHER 2
13 06C6098 001 柴油管 FUEL HOSE 1
14 00D4473 000 支架 BRACKET 1
15 04B0736 000 螺钉 SCREW 1
16 06B0083 000 垫圈 WASHER 2
17 22A6673 000 弯板 PLATE 1 N 01D2449
17 01D2449 000 支架 BRACKET 1
18 09C0157 002 双管夹片 CLAMP 1 L20-8103103A
19 06C6101 000 柴油管 FUEL HOSE 1
20 40C5429 000 燃油过滤器 FUEL FILTER 1 N 53C0971
20 53C0971 000 精滤油器总成 SECONDARY FILTER
AS 1
21 06C6102 000 柴油管 FUEL HOSE 1
22 06B0005 000 垫圈 WASHER 3 A P
23 06B0006 000 垫圈 WASHER 3 A P
24 00B0020 000 螺栓 BOLT 3 A P
