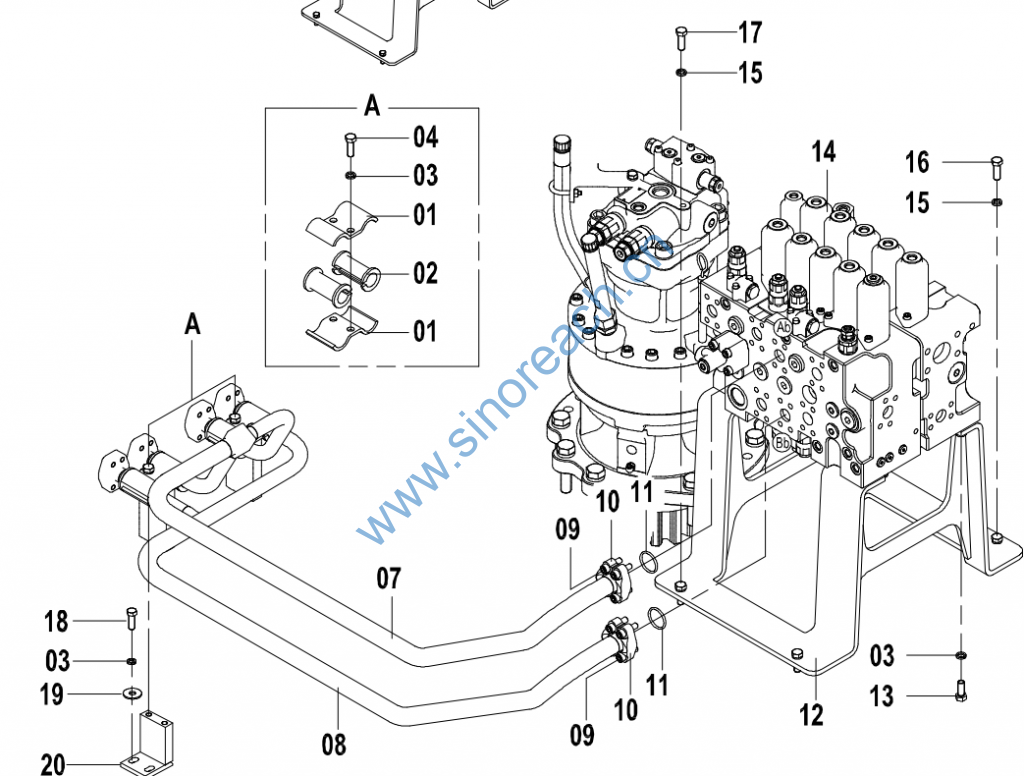

CLG920E/922E 15E1097(B) 主控阀配管 A MAIN HYDRAULIC SYSTEM-MAIN CONTROL VALVE PIPINGS A

01 22A3587 000 管夹 CLAMP 4
02 83A0701 002 橡胶套 BOOT 4
03 06B0008 000 垫圈 WASHER 11
04 00B0035 000 螺栓 BOLT 8
05 22A3407 000 管夹 CLAMP 2 Q
06 83A0702 002 橡胶套 BOOT 2 Q
07 09D0377 001 钢管总成 TUBE AS 1
07 10D4975 000 钢管总成 TUBE AS 1
08 10D5024 000 钢管总成 TUBE AS 1 N1 09D0376
08 09D0376 001 钢管总成 TUBE AS 1
09 04B0413 000 螺钉 SCREW 8
10 04A0250 001 法兰压板 SPLIT FLANGE 2
11 12B0445 002 O 形圈 O-RING 2
12 02D7727 000 支架 BRACKET 1
12 00D5205 000 支架 BRACKET 1 P 02D7727
13 00B0011 000 螺栓 BOLT 3
13 00B0017 000 螺栓 BOLT 3 00B0011
14 12C3668 002 主控阀 MAIN CONTROL
VALVE 1 Z
15 06B0098 000 垫圈 WASHER 4 A
16 00B0434 000 螺栓 BOLT 2 A
17 00B0437 000 螺栓 BOLT 2 A
18 00B0428 000 螺栓 BOLT 4
19 06B0667 000 垫圈 WASHER 4
20 00D7647 000 支座 BRACKET 2
