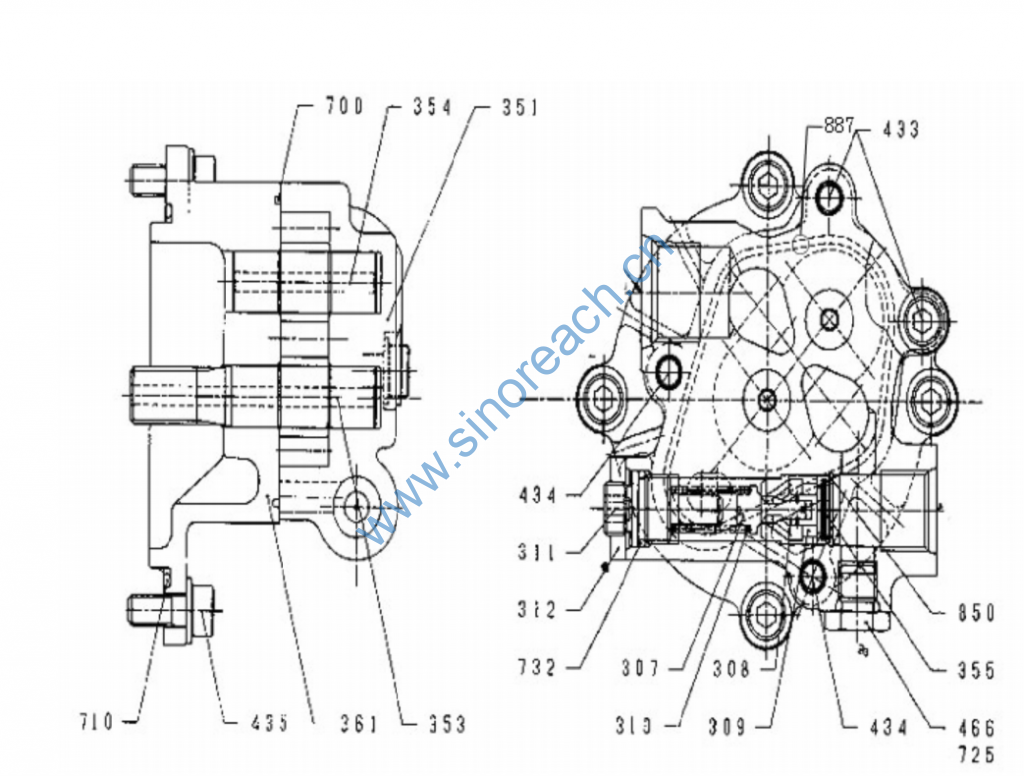

CLG920E/922E 11C0590 002 先导泵 PUMP GEAR

307 65A0278 000 阀芯 SPOOL 1 2903610-0266
308 55A1965 000 阀座 VALVE SEAT 1 2903270-0338
309 76A0298 000 挡圈 SNAP RING 1 2926650-0015
310 75A0355 000 弹簧 SPRING 1 2903340-1938
311 00B0495 000 调节螺栓 BOLT 1 2903300-0054
312 03B0863 000 锁紧螺母 LOCKNUT 1 2903480-0032
351 70A0276 000 泵体 PUMP BODY 1 2923170-0065
353 41A0193 000 主动轮 DRIVE GEAR 1 2954210-0002
354 41A0194 000 从动轮 DRIVEN WHEEL 1 3843800482
355 53C0283 000 滤油器 OIL FILTER 1 2902370-0005
361 70A0544 000 泵体 CASE FRONT 1
433 00B0508 000 螺栓 BOLT 2 PFSBM840
434 00B0509 000 螺栓 BOLT 2 PFSBM855
435 00B0511 000 螺栓 SOCKET FLANGE 4 PFSBM820
466 03B0626 000 螺塞 PLUG 1 0VP14
700 80A0376 000 密封圈 SEAL RING 1 2903385-0023
710 12B0734 000 O 形圈 O-RING 1 00RBG95W
725 12B0962 000 O 形圈 O-RING 1 00RBP11
732 12B1075 000 O 形圈 O-RING 1 00RBP16
850 76A0299 000 挡圈 SNAP RING 1 0RR18
887 60A0822 000 销 PIN 2 PJR519
