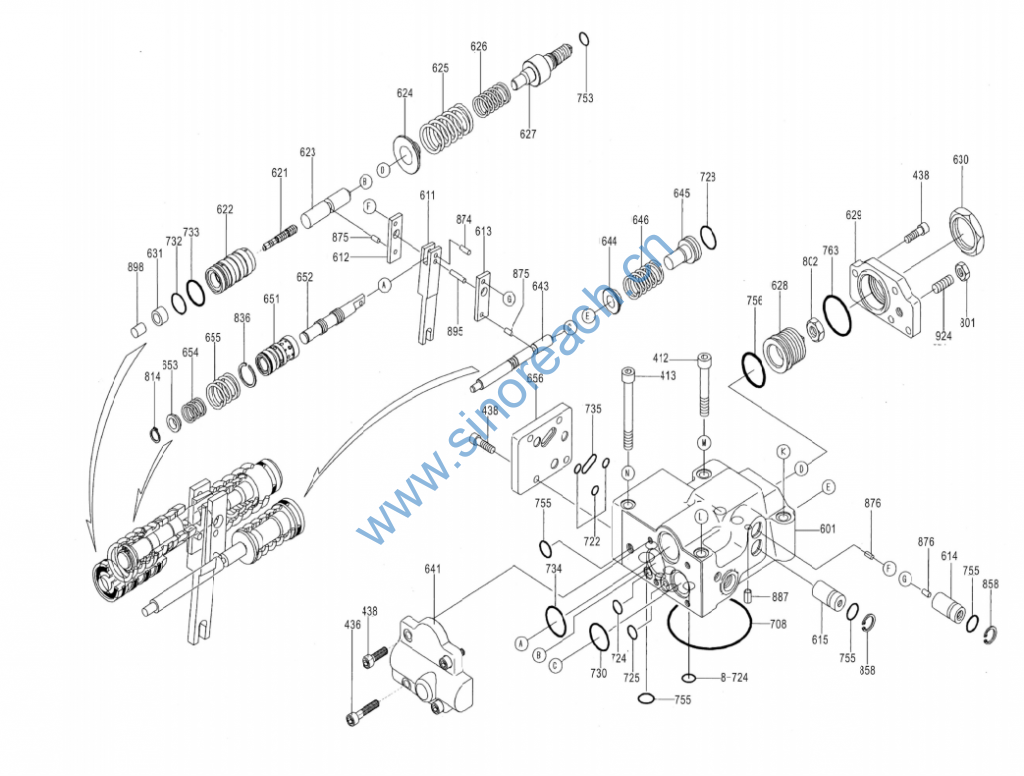

CLG920E/922E 15C0287 001 泵调节器 REGULATOR

412 00B0411 000 螺栓 BOLT 2 0SBM850
413 00B0412 000 螺栓 BOLT 2 0SBM870
436 00B0413 000 螺栓 BOLT 2 0SBM630
438 00B0414 000 螺栓 BOLT 10 0SBM620
496 55A1687 000 螺塞 PLUG 5 PBP116-2403
601 78A0125 000 阀体 VALVE BODY 1 2923801016
611 65A0103 000 反馈连杆 FEEDBACK LEVER 1 2953802680
612 64A0213 000 连杆 LINKAGE 1 2953801683
613 64A0214 000 连杆 LINKAGE 1 2953801684
614 05A0245 000 螺塞 PLUG 1 2953801685
615 05A0246 000 调节螺塞 PLUG 1 2953801686
621 50A0156 000 补偿活塞 COMPENSATOR
PISTON 1 2953801687
622 55A1346 000 活塞套 BUSHING 1 2953801688
623 65A0412 000 中间接杆 ROD 1 2926730-0402
624 52A0662 000 弹簧座 SPRING HOLDER 1 2903270-0854
625 75A0690 000 弹簧 SPRING 1 2953801929
626 75A0689 000 弹簧 SPRING 1 2953801692
627 64A0216 000 调节杆 HANDLE 1 2933260-0350
628 00B0415 000 调节螺栓 BOLT 1 2903300-0326
629 54A0155 000 盖板 COVER 1 2943800443
630 03B0633 000 锁紧螺母 LOCKNUT 1 2953801695
631 55A3358 000 导套 SLEEVE 1 2953801922
641 54A0156 000 阀盖 COVER CAP 1 2943800532
643 65A0411 000 阀杆 VALVE STEM 1 2924550-0405
644 52A0661 000 弹簧座 SPRING HOLDER 1 2903270-0855
645 64A0657 调节杆 STEM(Q)；ADJUST 1
646 75A0692 弹簧 SPRING；PILOT 1
651 65A0105 000 阀套 VALVE BUSHING 1 2943800521
652 65A0106 000 阀芯 SPOOL 1 2953801706
653 56A0368 000 弹簧座 SPRING HOLDER 1 2953801707
654 75A0212 000 回位弹簧 RETRUN SPRING 1 2953801746
655 75A0213 000 调压弹簧 SPRING 1 2953801709
656 54A0157 000 盖板 COVER 1 2953802034
708 12B0737 000 O 形圈 O-RING 1 00RBG75W
722 12B0964 000 O 形圈 O-RING 3 00RBP6W
724 12B0701 000 O 形圈 O-RING 9 00RBP8W
725 12B0739 000 O 形圈 O-RING 1 00RBP10W
728 12B0736 000 O 形圈 O-RING 1 00RBP18W

730 12B0740 000 O 形圈 O-RING 1 00RBP22W
732 12B0741 000 O 形圈 O-RING 1 00RBP16W
733 12B0742 000 O 形圈 O-RING 1 00RBP20W
734 12B0743 000 O 形圈 O-RING 1 00RBG25W
735 12B1105 000 O 形圈 O-RING 1 00RBP1250W
753 12B0745 000 O 形圈 O-RING 1 00RBP9W
755 12B0702 000 O 形圈 O-RING 2 00RBP11W
756 12B0746 000 O 形圈 O-RING 1 00RBP26W
763 12B0733 000 O 形圈 O-RING 1 00RBG35W
801 03B0634 000 螺母 NUT 1 0RNM8
802 03B0635 000 螺母 NUT 1 2903480-0355
814 76A0166 000 档圈 SNAP RING 1 0SR10
836 76A0167 000 档圈 SNAP RING 1 PWR20
858 76A0168 000 档圈 SNAP RING 2 0RR15
874 60A0818 000 销 PIN 1 PJR411
875 60A0819 000 销 PIN 2 PJR408
876 60A0820 000 销 PIN 2 PJR508
887 60A0821 000 销 PIN 1 2953801817
897 60A0822 000 销 PIN 1 PJR519
898 60A1870 000 销 PIN 1 PJR1010
924 00B0416 000 螺栓 BOLT 1 PSSSM820
