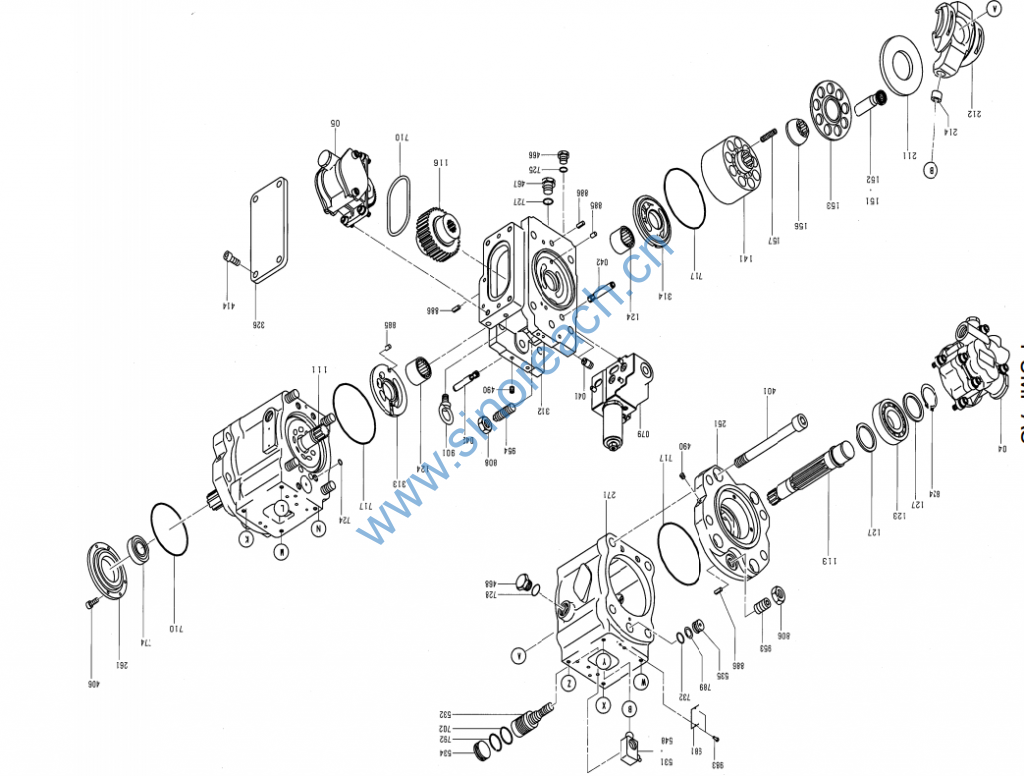

CLG920E/922E 11C1469 000 泵总成 PUMP AS

111 62A0126 000 驱动轴(前) DRIVE SHAFT 1 2933800982
113 62A0181 000 驱动轴(后) SHIFT(R) DRIVE 1 2933800883
116 51C0247 001 齿轮组件 GEAR GP 1 2903190-0083
123 41C0161 000 圆柱滚子轴承 ROLLER BEARING 2
PNUP308R1CS5
0
124 41C0162 000 滚针轴承 NEEDLE BEARING 2 PAJ503518
127 56A0244 000 止推环 THRUST RING 4 38800-127
141 70A0104 000 缸体 CYLINDER BODY 2 2933800787
151 50A0152 000 活塞 PISTON 18 2924530-0441
152 78A0373 000 滑靴 SHOE 18 2924330-0341
153 52A0273 000 压盘 PLATE 2 2924110-0056
156 55A0990 000 球形垫套 SPHERICAL BUSHING 2 2924610-0030
157 75A0155 000 缸体弹簧 CYLINDER SPRING 18 2953801769
211 52A0274 000 斜盘 SWASH PLATE 2 68710-00-211
212 71A0246 000 斜盘支座 SEAT 2 2933800813
214 55A1339 000 衬套 BUSHING 2 P1R2025125
251 71A0247 000 斜盘支承台 SUPPORT 2 2923800809
261 53A0311 000 端盖(前) END CAP 1 2943800572
271 70A0401 001 泵壳体 PUMP HOUSING 2 2923250-0338
312 15C0239 001 阀块 VALVE BLOCK 1 2923370-0090
313 52A1091 000 配油盘 PLATE 1 2924710-0647
314 52A1092 000 配油盘 PLATE 1 2924710-0648
326 54A0216 001 端盖 COVER 1 2923150-0860
401 04B0306 000 内六角螺钉 HEX SCREW 8 2953801767
406 00B0409 000 螺栓 BOLT 4 0SBM820
414 01B0568 000 内六角螺栓 HEX BOLT 4 0SBM1020
466 03B0626 000 螺塞 PLUG 2 0VP14
467 05A0976 000 螺塞 PLUG 2 0VP38
468 03B0627 000 螺塞 PLUG 4 0VP34
490 55A1687 000 螺塞 PLUG 32 PBP116-2403
531 08B0128 000 拨销 PIN 2 2943800517
532 50A0154 000 伺服活塞 SERVO PISTON 2 2924490-0050
534 03B0628 000 限位螺塞 PLUG 2 2925110-0318
535 05A0114 000 塞子(小) PLUG 2 2953801762
541 52A0660 000 阀座 VALVE SEAT 4 2933180-0414
543 05A0720 000 螺塞 PLUG 2 2933260-0311
544 05A0719 000 螺塞 PLUG 2 2933260-0312
545 56A1509 000 钢球 STEEL BALL 4 0DW732
548 08B0129 000 反馈销 FEEDBACK PIN 2 2953802202

702 12B0733 000 O 形圈 O-RING 2 00RBG35W
710 12B0734 000 O 形圈 O-RING 2 00RBG95W
717 12B0700 000 O 形圈 O-RING 4 00RBG145W
724 12B0701 000 O 形圈 O-RING 16 00RBP8W
725 12B0702 000 O 形圈 O-RING 4 00RBP11W
726 12B0703 000 O 形圈 O-RING 2 00RBP14W
728 12B0704 000 O 形圈 O-RING 4 00RBP24W
732 12B0736 000 O 形圈 O-RING 2 00RBP18W
774 13B0724 000 油封 OIL SEAL 1 PTCV45DLV
789 07B0199 000 挡圈 SNAP RING 2 0T2BP18
792 07B0200 000 挡圈 SNAP RING 2 0T2BG35
806 03B0630 000 螺母 NUT 2 0RNM16
808 03B0631 000 螺母 NUT 2 0RNM20
824 07B0246 000 止动环 SNAP RING 2 0SR40
885 60A0815 000 销 PIN; 2 PJR812
886 60A0816 000 销 PIN; 4 0SPV614
901 03B0632 000 起吊螺母 NUT 2 0EBM10
953 05B0212 000 螺栓 BOLT 2 PSSSM1635
954 04B0389 000 调节螺钉 SCREW 2 2953801768
981 74A1914 000 铭牌 NAMEPLATE 1 PNPA-2550B
983 66A0112 000 销子 PIN 2 0SK2548
