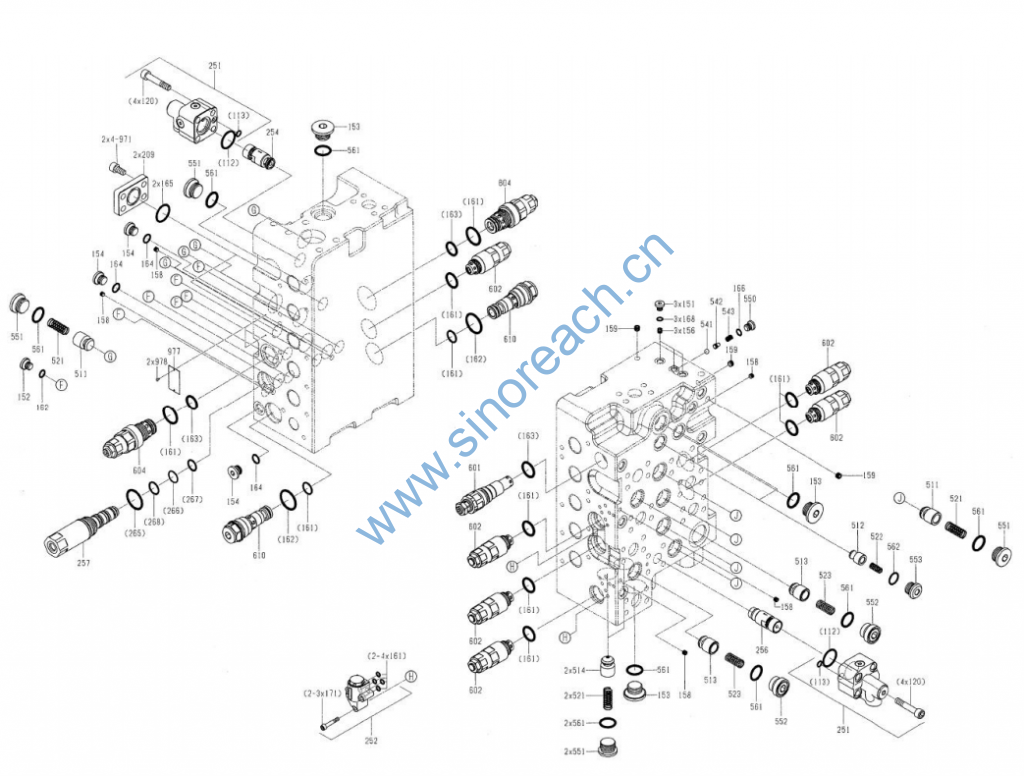

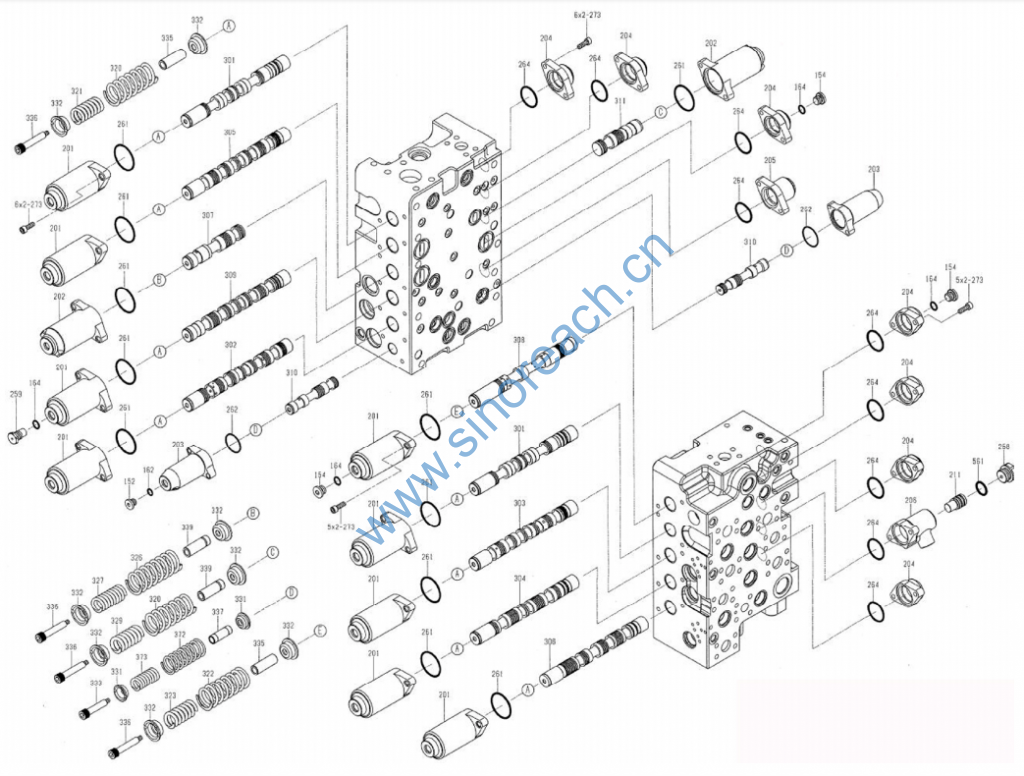

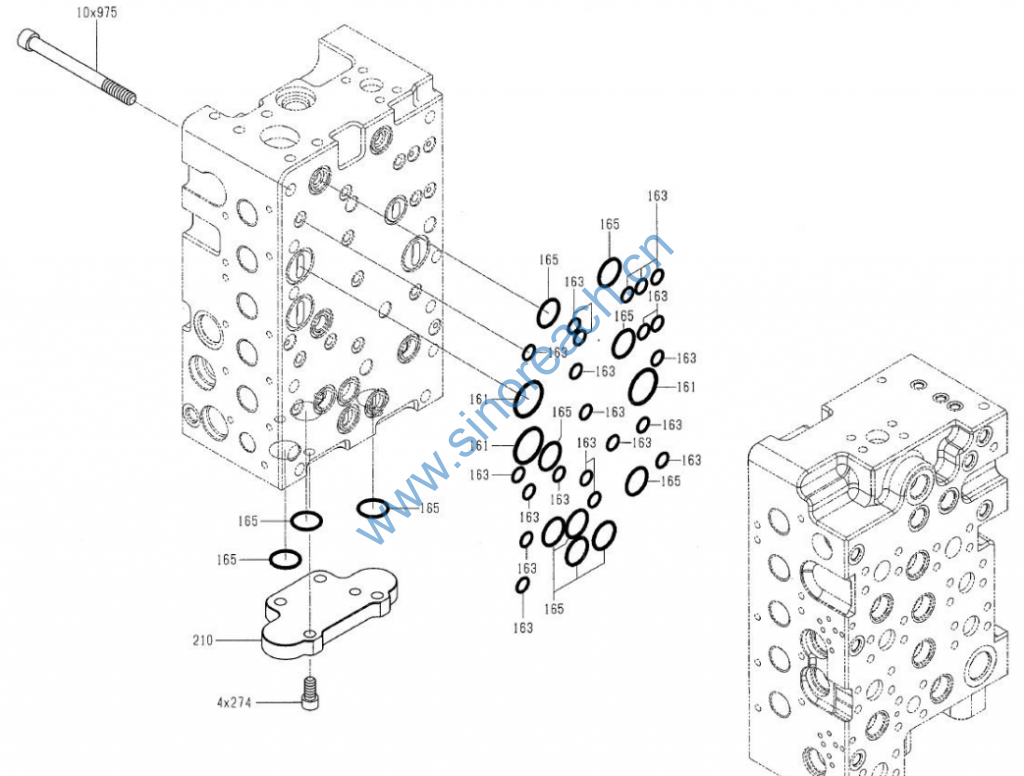

CLG920E/922E 12C3668 002 主控阀 MAIN CONTROL VALVE

101 78A0444 000 阀体 VALVE BODY 1 5233170-3803
102 78A0445 000 阀体 VALVE BODY 1 5233170-3804
151 03B0897 001 螺塞 PLUG 3 0R0H18
151 05A0396 001 堵头 PLUG 3 0R0H18
152 05A0470 000 螺塞 PLUG 5
153 05A0248 001 螺塞 PLUG 3 0R0H34
153 05A0348 001 堵头 PLUG 3 0R0H34
154 05A0250 001 堵头 PLUG 6 0R0H38
154 05A0250 001 螺塞 PLUG 6 0R0H38
156 65A0184 000 节流阀 THROTTLE VALVE 3 VZ5012025D07
158 05A0112 000 螺塞 PLUG 5 PBP116-2403
159 05A0251 000 螺塞 PLUG 3 VZ50101400
161 12B1865 000 O 形圈 O-RING 3 00RBP38
162 12B0962 000 O 形圈 O-RING 5 00RBP11
163 12B1088 000 O 形圈 O-RING 21 00RBP15
164 12B0904 000 O 形圈 O-RING 7 00RBP14
165 12B0905 000 O 形圈 O-RING 14 00RBG30
166 12B0907 000 O 形圈 O-RING 1 00RBP10
168 12B0981 000 O 形圈 O-RING 3 00RBP8
201 78A0446 000 弹簧盖 SPRING COVER 9
VZ33140-1158
A
202 78A0447 000 弹簧盖 SPRING COVER 2
VZ33140-1162
B
203 78A0448 000 弹簧盖 SPRING COVER 2 VZ33140-1268
204 53A0592 000 阀盖 VALVE CAP 7 VZ33140-0091
205 53A0662 000 阀盖 VALVE CAP 1 VZ33140-0093
206 53A1574 000 阀盖 VALVE CAP 1 5233140-1658
209 04A0731 000 法兰 FLANGE 2 VZ03580-0141
210 72A182 盖板 PLATE 1
211 50A0578 000 活塞 PISTON 1 VZ33330-0545
251 12C3276 000 阀 VALVE 2
52080603-790
0
252 12C3277 000 阀 VALVE 2
VZ02360-9599
A
254 53A1785 000 阀盖 VALVE CAP 1
52120402-067
9
256 53A1786 000 阀盖 VALVE CAP 1
52111013-861
1
257 12C3278 000 阀 VALVE 1
52090724-188
9
258 05A0914 000 堵头 PLUG 1 VZ03560-0261

259 05A0915 000 堵头 PLUG 1 5203560-1759
261 12B1866 000 O 形圈 O-RING 11 00RBG50
262 12B0911 000 O 形圈 O-RING 2 VZ50102761H39
264 12B0912 000 O 形圈 O-RING 9 00RBG40
273 04B0498 000 内六角螺钉 HEX SCREW 44 0SBM825
274 04B0929 000 内六角螺钉 HEX SCREW 4 OSBM1225
301 65A0525 000 阀芯 SPOOL 2 5203320-7019
302 65A0579 000 斗杆阀芯 1 组件 ARM SPOOL1 GP 1 52120402-0672
303 65A0580 000 动臂阀芯 1 组件 BOOM SPOOL1 GP 1 52111013-8607
304 65A0581 000 铲斗阀芯组件 BUCKET SPOOL GP 1 5203320-7278
305 65A0541 000 阀芯 SPOOL 1
5203320-7103
306 65A0582 000 斗杆阀芯 2 组件 ARM SPOOL2 GP 1 5203320-7182
307 65A0583 000 动臂阀芯 1 组件 BOOM SPOOL1 GP 1 5203320-7184
308 65A0518 000 阀芯 SPOOL 1 52080717-8376
309 65A0517 000 阀芯 SPOOL 1 5203320-7013
310 65A0516 000 阀芯 SPOOL 2 5203320-5393
311 65A0543 000 阀芯 SPOOL 1
5203320-7101
320 75A0274 000 弹簧 SPRING 8 VZ50102138
321 75A0275 000 弹簧 SPRING 4 VZ50103812
322 10B0311 000 弹簧 SPRING 1 VZ03340-1956
323 10B0312 000 弹簧 SPRING 2 VZ03340-2711
326 75A0357 000 弹簧 SPRING 2 VZ03340-1961
327 75A0358 000 弹簧 SPRING 1 VZ03340-1962
328 75A0751 000 弹簧 SPRING 3 VZ50102139
329 75A0224 000 弹簧 SPRING 1 VZ03340-0168
331 56A0457 000 弹簧支座 BRACKET 4 VZ50103529
332 56A0458 000 弹簧支座 BRACKET 22 VZ50103142
333 04B0564 000 预压螺钉 SCRWE 2 VZ50103527
335 55A1677 000 止动块 BLOCK 9 VZ50101296
336 05B0126 000 螺栓 BOLT 11 VZ50101297
337 55A4943 000 止推垫片 THRUST SHIM 2 VZ33260-0338
339 55A1681 000 止动块 BLOCK 2 VZ33260-0013
372 10B0313 000 弹簧 SPRING 2 VZ50103707
373 10B0314 000 弹簧 SPRING 2 VZ50103706
511 65A0187 000 提升阀芯 POPPET 2 VZ03610-0026

512 65A0274 000 提升阀芯 POPPET 8 VZ03610-0051
513 65A0189 000 提升阀芯 POPPET 2 VZ03610-0028
514 65A0526 000 阀芯 SPOOL 2 5203610-0917
521 75A0281 000 弹簧 SPRING 10 VZ50101290
522 10B0315 000 弹簧 SPRING 2 VZ03340-2930
523 75A0282 000 弹簧 SPRING 2 VZ03340-0294
541 55A1669 000 钢球 STEEL BALL 1 ODW516
542 65A0370 000 阀芯 SPOOL 1 5050107311
543 75A0532 000 弹簧 SPRING 1 VZ50107362
550 03B0723 001 螺塞 PLUG 1 0R0MH12
551 05A0352 001 堵头 PLUG 11 0R0MH27
552 05A0353 000 堵头 PLUG 2 VZ03560-0117
553 05A0476 000 螺塞 PLUG 2 VZ03560-0127
561 12B0913 000 O 形圈 O-RING 17 00RBP24
562 12B0965 000 O 形圈 O-RING 2 00RBP20
601 12C3280 000 溢流阀 RELIEF VALVE 1 52081027-9465
602 12C3281 000 溢流阀 RELIEF VALVE 6 V9304063322
604 12C3284 000 溢流阀 RELIEF VALVE 2 52091125-2936
610 12C3282 000 溢流阀 RELIEF VALVE 2 52100602-4625
971 04B0501 000 内六角螺钉 HEX SCREW 8 0SBM1020
975 04B0970 000 螺钉 SCREW 10 OSBM14155
977 74A5792 000 铭牌 NAMEPLATE 1 PNPA-2550C
978 66A0112 000 销子 PIN 2 0SK2548
