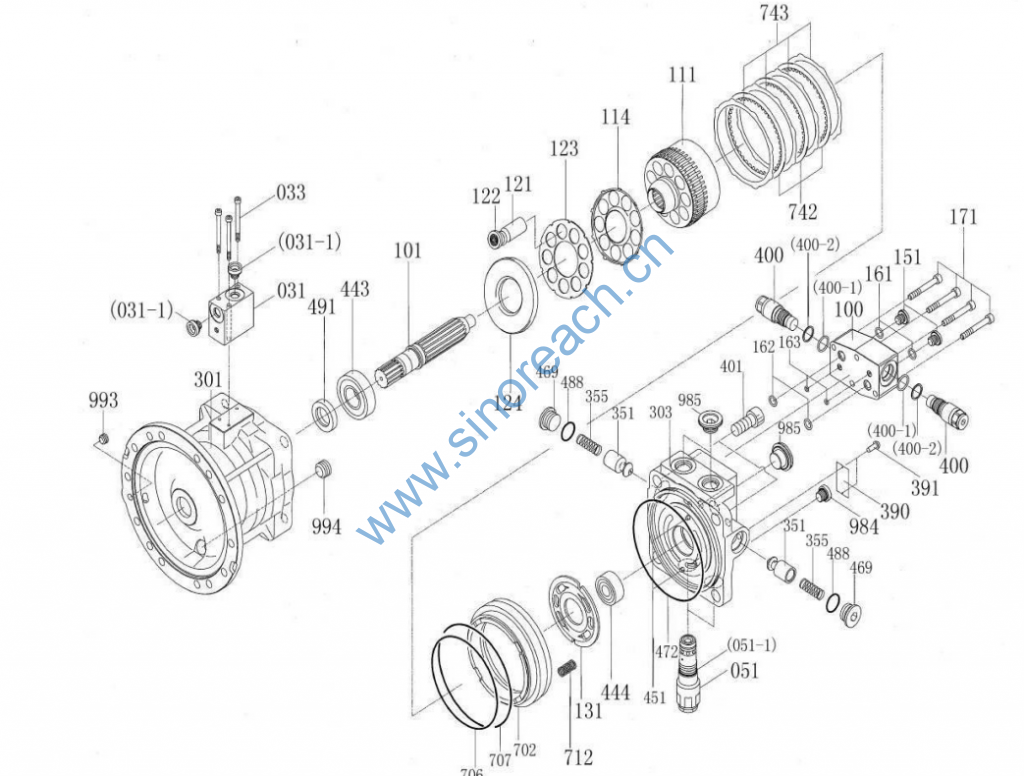

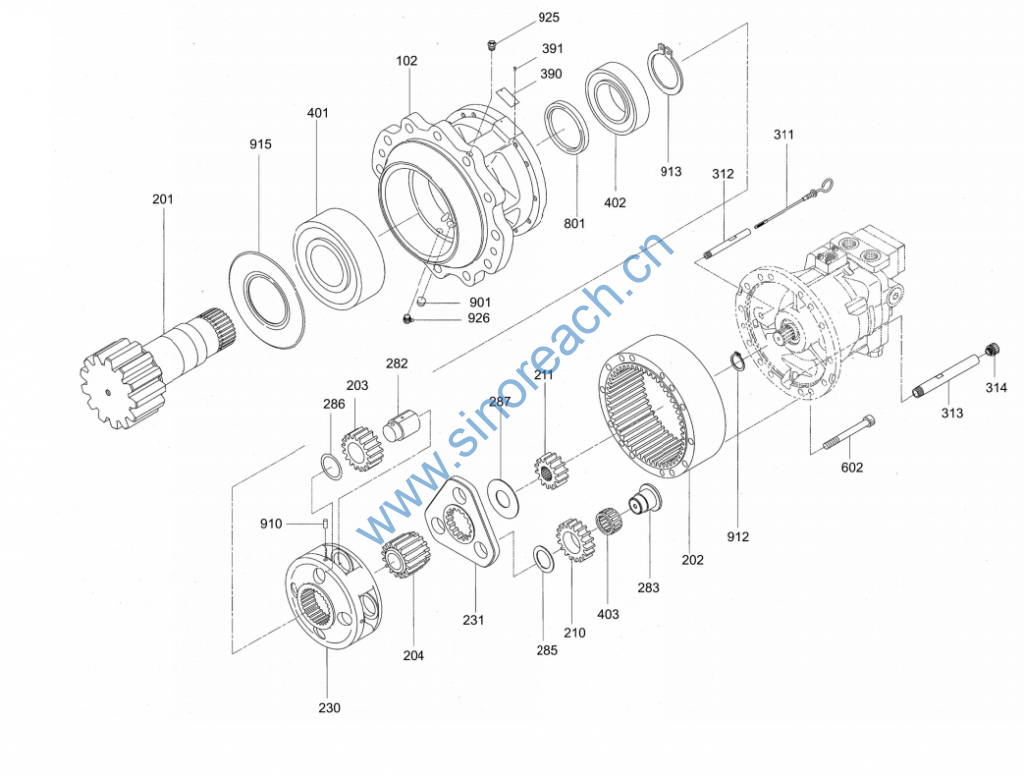

CLG920E/922E 11C0587 003 回转马达及减速机 SWING MOTOR&REDUCTION GEAR

00 34C0290 成套工具 TOOL KIT
10 15C0286 000 柱塞组件 PISTON GP 1 37061123-2073
20 15C0060 000 阀套组件 VALVE BUSHING GP 1 3723230 一 0226
30 22C0396 001 托架 CARRIER 1 6321120-0405
31 12C0275 001 延时阀 TIME DELAY VALVE 1 3753700422P
31.1 05A0380 000 堵头 PLUG 2 PVA14A-1
33 04B0310 000 螺丝钉 SCREW 3 0SBM670
40 24C0331 001 油标尺组件 DIPSTICK GP 1 6302500-0205
50 15C0159 001 油管组件 OIL PIPE AS 1 6326390-0209
51 15C0100 001 溢流阀 RELIEF VALVE 2 V2CY2
51.1 12B0749 000 O 形圈 O-RING 4 00RBG30
52 15C0061 003 阀块 VALVE BLOCK 1 V9409216208
100 78A0203 000 阀体 VALVE BODY 1
101 62A0091 000 驱动轴 DRIVE SHAFT 1 3724250 一 0367
102 53A0967 000 轴座 SEAT 1 6323310-0736
111 55A0901 000 气缸 AIR CYLINDER 1 3724370―0251
114 52A0176 000 弹簧盘 SPRING PLATE 1 3703330―0017
121 50A0420 000 活塞 PISTON 9 3753700718
122 55A3414 000 滑靴 SHOE 9 3724330-0356
123 52A0177 000 调整盘 PLATE 1 3724110―0044
124 52A0178 000 蹄片盘 SHOE 1 3724670―0048
131 52A0179 000 阀盘 A VALVE PLATE 1 3724710 一 0203
151 05A0381 000 堵头 PLUG 2
161 12B0962 000 O 形圈 O-RING 2 00RBP11
162 12B0963 000 O 形圈 O-RING 2 00RBP12W
163 12B0964 000 O 形圈 O-RING 2 00RBP6W
171 04B0525 000 内六角螺钉 HEX SCREW 4
201 63A0239 000 驱动轴 DRIVE SHAFT 1 6324250-1381
202 56A1138 000 齿圈 GEAR RING 1 6303190-1299
203 41A0252 000 齿轮 GEAR 4 6303190-1298
204 41A0251 000 齿轮 GEAR 1 6303190-1296
210 41A0250 000 齿轮 GEAR 3 6303190-1297
211 41A0249 000 齿轮 GEAR 1 6303190-1295
230 72A1150 000 托架 CARRIER 1 6324120-0408
231 18A2580 000 止推板 THRUST PLATE 1 6333360-0859

282 08B0319 000 销 PIN 4 6303540-0901
283 18A2581 000 侧板 SIDE PLATE 3 6333360-0967
285 08B0385 000 销 PIN 3 6303540-0561
286 18A0666 000 侧板 PLATE 4 6333360-0234
287 72A1336 000 托架 CARRIER 1 6324120-0407
301 70A0552 000 壳体 HOUSING 1 3723270-0950
303 70A0553 000 壳体 HOUSING 1 A 3723230-0225
311 20A8392 000 油标尺 DIPSTICK 1 6302500-0203
312 33A1010 000 硬管 PIPE 1 6326390-0203
313 35A1541 000 注油管 FILLER TUBE 1 6326390-0208
314 53A1128 000 封盖 CAP 1 6333160-0225
351 50A0095 000 活塞 PISTON 2 3753700549
355 75A0157 000 弹簧 SPRING 2 3753700548
390 74A1914 000 铭牌 NAMEPLATE 2 PNPA-2550B
391 08B0127 001 销 PIN 2 0SK2548
400 12C1032 002 防反转阀 ANTI-REVERSE
VALVE 2 V9409196196
400.
1 12B0965 000 O 形圈 O-RING 4 00RBP20
400.
2 07B0250 000 挡圈 SNAP RING 4 0T2BP20
401 04B0311 000 螺丝钉 SCREW 4 0SBM2045
402 20B0215 000 调心滚子轴承 ROLLER BEARING 1
P22218RH
443 22B0008 001 轴承 BEARING 1 PNJ307EVV
444 22B0009 001 轴承 BEARING 1 PNJ2304EHT
451 08B0126 001 销 PIN 2 A 0SPV614
469 05A0116 001 螺塞 PLUG 2 0R0MH30
472 12B0961 000 O 形圈 O-RING 1 00RWG40W
488 12B0548 000 O 形圈 O-RING 2 00RBP28
491 80A0329 000 油封 OIL SEAL 1 PTCZ35MV
602 04B0624 001 内六角螺钉 HEX SCREW 14 0SBM14140
702 15C0062 000 制动瓣 BRAKE SHOE 1 3724510-0011
706 12B0549 000 O 形圈 O-RING 1 00RWG38
707 12B0550 001 O 形圈 O-RING 1 00RWG41
712 75A0158 000 制动弹簧 BRAKE SPRING 24 3703340-0660
742 57A0296 000 磨擦片 FRICTION PLATE 3 3724730-0008
743 57A0297 000 隔离片 SPACER BLOCK 4 3724690-0008
801 80A0556 000 油封 OIL SEAL 1 PTC9512013V
901 05A0371 000 堵头 PLUG 1 0BP12U
910 60A1551 001 销 PIN 4 0SPV1025

912 07B0115 000 挡圈 SNAP RING 1 0SR35
913 07B0116 000 挡圈 SNAP RING 1 0SR90
915 07B0117 000 挡圈 SNAP RING 1 6326210-0015
925 12C0277 000 排气阀 EXHAUST VALVE 1 6303560-0786
926 10B0078 000 黄油嘴 GREASE FITTING 1 6303560-0787
984 05A0378 000 堵头 PLUG 1 PVA38A-1
985 05A0379 000 堵头 PLUG 3 PVA34A-1
993 05A0117 000 螺塞 PLUG 1 0BP14
994 05A0118 001 螺塞 PLUG 1 0BP34
998 20B0214 001 调心滚子轴承 ROLLER BEARING 1 A P22320
