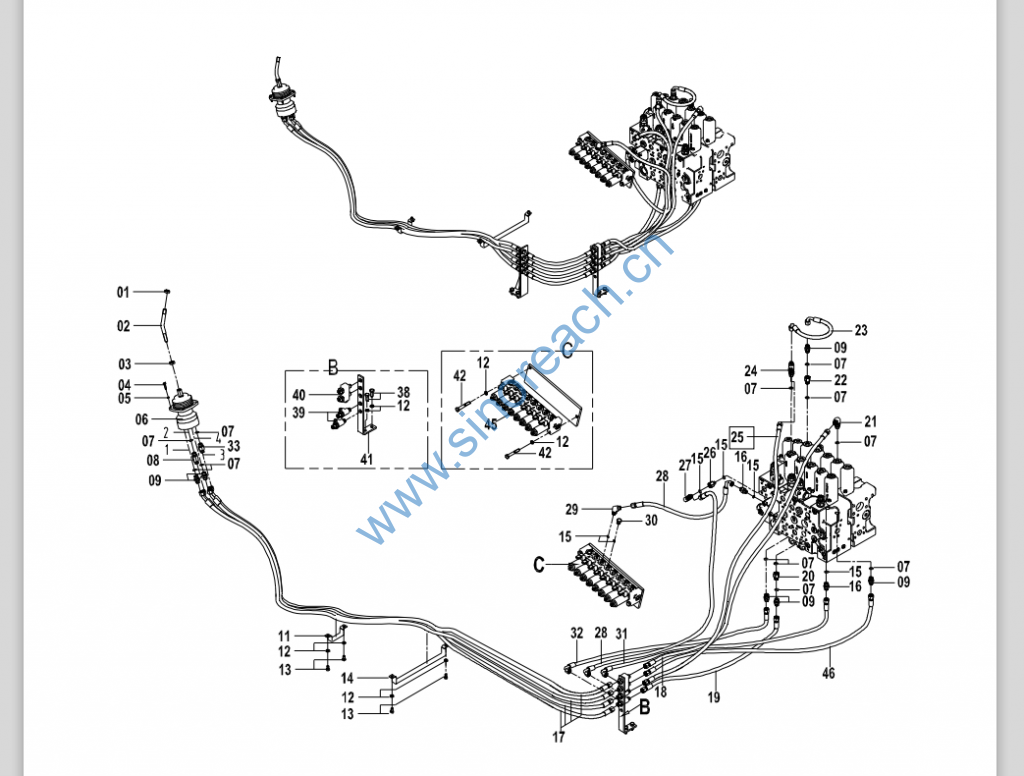

CLG920E/922E 12Y0020(A) 左手先导回路 UPPER STRUCTURE PILOT CIRCUIT(LH)

01 03B0346 000 螺母 NUT 1
02 63A0258 002 操纵杆 CONTROL LEVER 1
03 03B0059 000 螺母 NUT 1
04 00B0023 000 螺栓 BOLT 4
05 06B0003 000 垫圈 WASHER 4
06 12C3519 000 手先导阀 HAND PILOT VALVE 1
07 12B0429 002 O 形圈 O-RING 12
08 00A3506 002 接头 CONNECTOR 1
09 00A3498 002 接头 CONNECTOR 6
10 05C5732 000 软管总成 HOSE AS 4 Q
11 09C0851 000 软管夹 CLAMP 1
12 06B0002 000 垫圈 WASHER 8
13 00B0056 000 螺栓 BOLT 4
14 09C0876 000 管夹 CLAMP 1
15 12B0428 002 O 形圈 O-RING 6
16 00A3491 002 接头 CONNECTOR 2
17 05C3273 000 软管总成 HOSE AS 4 05C3116
17 05C3116 000 软管总成 HOSE AS 4
18 05C3222 000 软管总成 HOSE AS 1
18 05C3184 000 软管总成 HOSE AS 1 05C3222
19 05C3335 000 软管总成 HOSE AS 1 05C3344
19 05C3344 000 软管总成 HOSE AS 1
20 12C1900 000 单向节流阀 THROTTLE VALVE 1
21 31C0559 002 直角接头 CONNECTOR 1
22 00A4219 000 过渡接头 CONNECTOR 1
23 05C3124 001 软管总成 HOSE AS 1
24 32C0414 001 三通接头 TEE 1
25 05C3344 000 软管总成 HOSE AS 1 05C3335
25 05C3335 000 软管总成 HOSE AS 1
26 00A0761 002 过渡接头 CONNECTOR 1
27 31C0558 003 直角接头 CONNECTOR 1
28 05C3342 000 软管总成 HOSE AS 2
29 31C0560 002 弯接头 ELBOW 3
30 05A0075 001 螺塞 PLUG 2
31 05C3143 000 软管总成 HOSE AS 1
32 05C3337 000 软管总成 HOSE AS 1
33 00A3507 002 接头 CONNECTOR 1
34 00B0075 000 螺栓 BOLT 2
35 06B0006 000 垫圈 WASHER 2
36 02D7748 000 支架 BRACKET 1 Q

37 30C0607 000 隔板接头 CONNECTOR 4 Q
38 00B0012 000 螺栓 BOLT 2
39 32C0468 000 隔板接头 SPACER CONNECTOR 2
40 12C1999 000 梭阀 SHUTTLE VALVE 1
41 22A3554 000 弯板 PLATE 1
42 01B0028 000 螺栓 BOLT 2
45 12C3032 000 电磁阀总成 SOLENOID VALVE AS 1
46 05C3203 000 软管总成 HOSE AS 1 05C3114
46 05C3114 000 软管总成 HOSE AS 1
