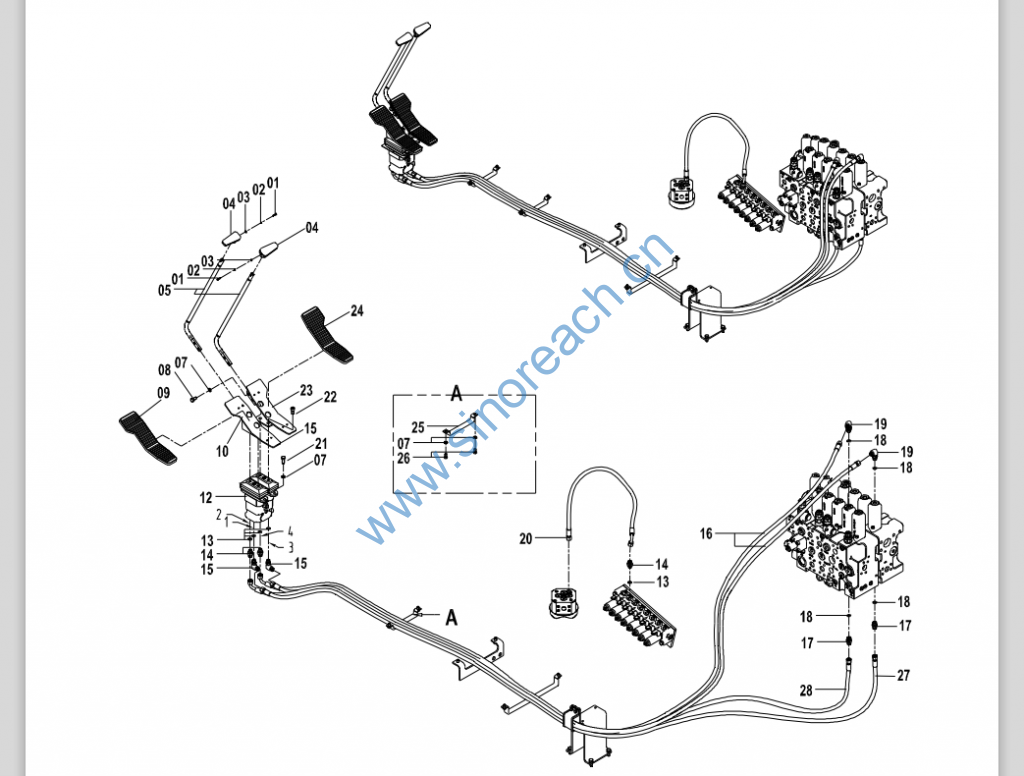

CLG920E/922E 12Y0020(C) 行走先导回路 TRAVEL FUNCTION PILOT CIRCUIT

01 04B0099 000 螺钉 SCREW 2
02 06B0022 000 垫圈 WASHER 2
03 06B0097 000 垫圈 WASHER 2
04 35C0853 000 手柄 HANDLE 2
05 16D0914 002 操纵杆 CONTROL LEVER 2
07 06B0002 000 垫圈 WASHER 10
08 00B0005 000 螺栓 BOLT 4
09 84A0984 002 胶套 BOOT 1
10 00D4985 003 脚踏 STEP 1
12 12C2151 002 行走先导阀 FOOT PILOT VALVE 1 Z 12C3786
12 12C3786 000 行走先导阀 FOOT PILOT VALVE 1
13 12B0428 002 O 形圈 O-RING 5
14 00A3491 002 接头 CONNECTOR 3
15 31C0558 003 直角接头 CONNECTOR 2
16 05C3108 001 软管总成 HOSE AS 2
17 00A3498 002 接头 CONNECTOR 2
18 12B0429 002 O 形圈 O-RING 4
19 31C0559 002 直角接头 CONNECTOR 2
20 05C3342 000 软管总成 HOSE AS 1
21 00B0012 000 螺栓 BOLT 4
22 04B0412 000 螺钉 SCREW 4
23 00D4986 003 脚踏 STEP 1
24 84A0985 002 胶套 BOOT 1
25 09C0853 000 软管夹 CLAMP 2
26 00B0056 000 螺栓 BOLT 2
27 05C3195 000 软管总成 HOSE AS 1
28 05C3113 002 软管总成 HOSE AS 1
