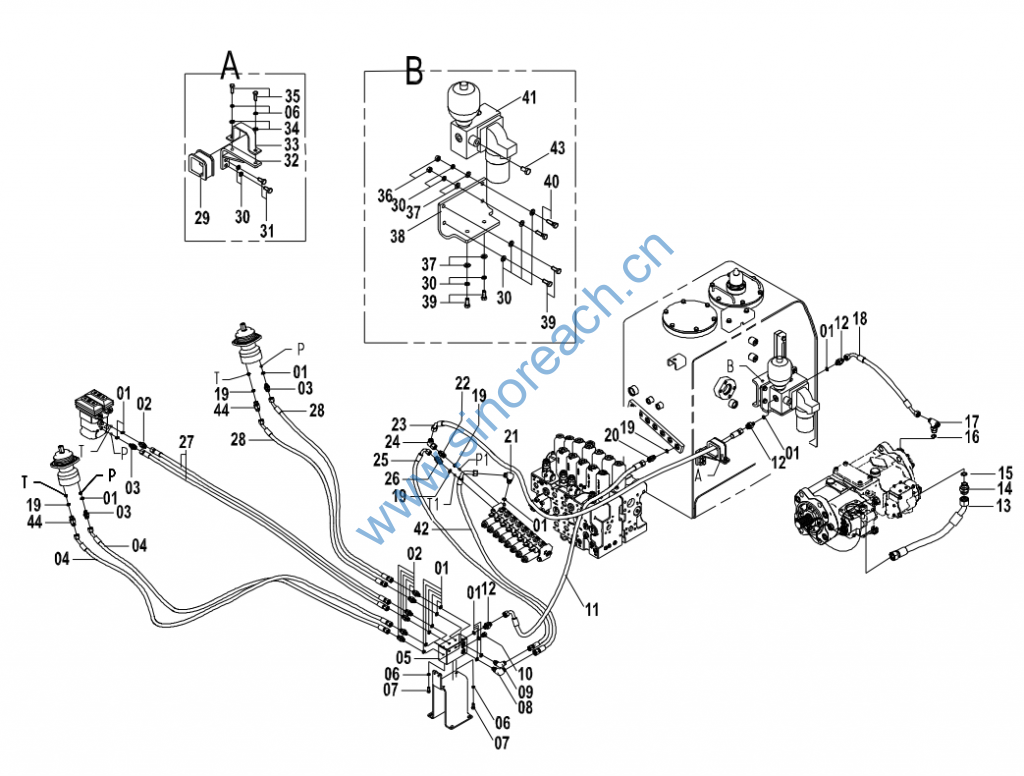

CLG920E/922E 12Y0020(D) 进出油口回路 OIL INLET AND OUTLET CIRCUIT

01 12B0428 002 O 形圈 O-RING 19
02 00A3491 002 接头 CONNECTOR 7
03 30C0803 000 滤网接头 FITTING 3
04 05C3116 002 软管总成 HOSE AS 2 05C3147
04 05C3147 001 软管总成 HOSE AS 2
05 03A0564 000 接头块 BLOCK 1
06 06B0006 000 垫圈 WASHER 4
07 00B0075 000 螺栓 BOLT 2
08 31C0853 001 直角接头 CONNECTOR 1
09 31C0558 003 直角接头 CONNECTOR 1
10 05A0075 001 螺塞 PLUG 2
11 06C6508 000 软管总成 HOSE AS 1 66C2545
11 66C2545 000 软管总成 HOSE AS 1
12 00A4308 001 接头 FITTING 3
13 06C6339 001 软管总成 HOSE AS 1
14 00A3493 001 接头 CONNECTOR 1
15 12B0431 001 O 形圈 O-RING 1
16 12B0430 002 O 形圈 O-RING 1
17 32C0564 000 可调三通接头 ADJUSTING TEE 1
18 06C9918 000 软管总成 HOSE AS 1
19 12B0429 002 O 形圈 O-RING 3
20 00A4476 000 接头 CONNECTOR 1
21 31C0856 000 直角接头 CONNECTOR 1
22 00A4006 001 接头 CONNECTOR 1
23 06C6407 002 软管总成 HOSE AS 1 66C1272
23 66C1272 000 软管总成 HOSE AS 1
24 31C1057 001 直角接头 CONNECTOR 1
25 05C3151 000 软管总成 HOSE AS 1
25 05C3115 002 软管总成 HOSE AS 1 05C3151
26 00A3498 002 接头 CONNECTOR 1
27 05C3353 000 软管总成 HOSE AS 2
28 05C3351 000 软管总成 HOSE AS 2
29 83A1143 000 橡胶套 BOOT 1
30 06B0002 000 垫圈 WASHER 6
31 00B0005 000 螺栓 BOLT 2
32 00D5176 000 支架 BRACKET 1

33 21A6286 000 管夹 CLAMP 1
34 06B0005 000 垫圈 WASHER 2
35 00B0085 000 螺栓 BOLT 2
36 03B0053 000 螺母 NUT 2
37 06B0001 000 垫圈 WASHER 6
38 23A9780 000 弯板 PLATE 1
39 00B0012 000 螺栓 BOLT 4
40 01B0552 000 螺栓 BOLT 2
41 15C0038 001 先导阀块组件 PILOT VALVE GP 1
42 06C2546 000 软管总成 HOSE AS 1 66C3773
42 66C3773 000 软管总成 HOSE AS 1
43 30C1240 000 螺塞组件 PLUG AS 1 A
44 00A3507 002 接头 CONNECTOR 2
