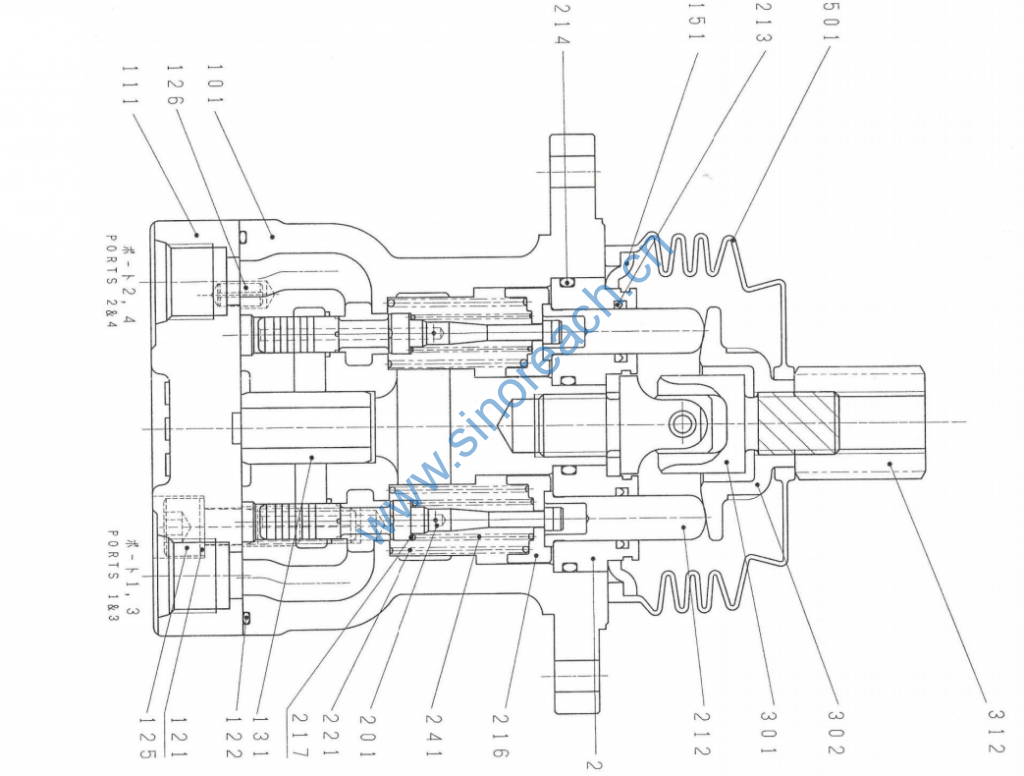

CLG920E/922E 12C3519 000 手先导阀 HAND PILOT VALVE

111 78A0215 000 配流盘 VALVE PLATE 1 VZ33360-0400
125 04B0541 000 内六角螺钉 HEX SCREW 2
VZ03620-0184
1
126 08B0220 000 弹性销子 PIN 1 0SPV510
131 55A1875 000 衬套 BUSHING 1 VZ33340-0157
151 27A0517 000 板 PLATE 1 VZ33360-0276
201 65A0496 000 阀芯 SPOOL 4 VZ03320-3097
211 65A0197 000 螺塞 PLUG 4 5DT01X00-211
212 64A0276 000 推杆 PUSH ROD 4 5DT01X04-212
216 56A0559 000 弹簧支座(1) SPRING HOLDER 4 VZ03270-0191
217 06B0337 000 垫圈 WASHER 4 5DT01X00-217
221 10B0175 000 弹簧 SPRING 4 VZ03340-1060
241 10B0176 000 弹簧 SPRING 4 VZ03340-1550
301 73A0089 000 连接块 BLOCK 4 5DT61X01-301
302 27A0518 000 压板 PLATE 1 VZ33360-0280
312 03B1429 000 调整螺母 ADJUSTING NUT 1 5DT61X00-311
501 83A1593 000 橡胶套 BOOT 1 5033210-0414
