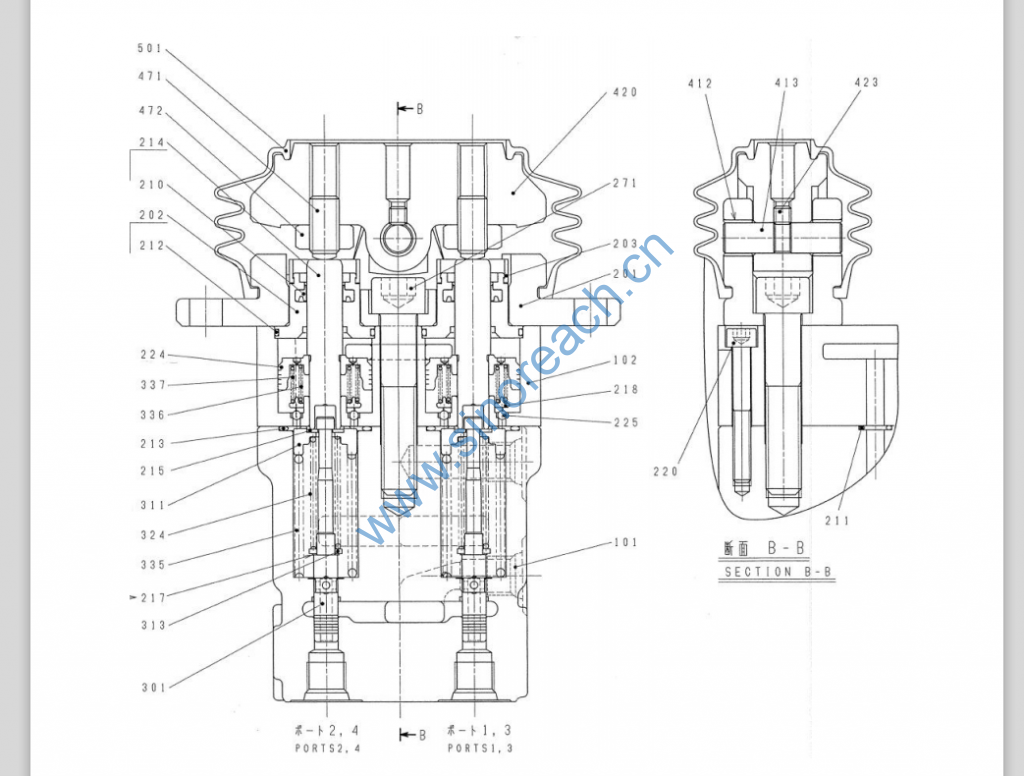

CLG920E/922E 12C2151 002 行走先导阀 FOOT PILOT VALVA

101 70A0808 000 壳体 HOUSING 1 5033170-3642
102 70A0656 000 壳体 HOUSING 1 5033170-3643
201 53A0597 000 阀盖 VALVE CAP 2 VZ33140-0255
202 55A2024 000 螺塞 PLUG 4 VZ03560-0548
203 55A1691 000 油杯 GREASE FITTING 4 VZ02230-0002
210 83A0585 000 护套 BOOT 4 VZ03385-0039
211 12B0981 000 O 形圈 O-RING 2 00RBP8
212 12B0727 000 O 形圈 O-RING 4 00RA025
213 12B0982 000 O 形圈 O-RING 4
VZ50102761S2
8
214 77A0702 000 推杆 PUSH ROD 4 VZ33420-0089
215 06B0336 000 垫圈 WASHER 8 5DT01X00-215
217 06B0337 000 垫圈 WASHER 4 5DT01X00-217
218 71A0323 000 弹簧支座 BRACKET 4 VZ03270-0052
220 02B0197 000 内六角螺栓 HEX BOLT 2 PSBM645C
224 50A0655 000 活塞 PISTON 4 VZ33330-0074
225 20B0088 000 钢球 STEEL BALL 12 0DW3-0
271 04B0574 000 内六角螺钉 HEX SCREW 2
VZ03620-0059
3
301 65A0100 000 滑阀 SPOOL 4
5DC81X00A-30
1
311 71A0844 000 弹簧座 SPRING HOLDER 4 VZ03270-0053
313 06B0296 000 垫圈 WASHER 4 5DC81X00-313
324 10B0109 000 弹簧 SPRING 4 5DC81X05-324
335 75A0289 000 弹簧 SPRING 4 5DC81X10-335
336 75A0290 000 弹簧 SPRING 4 VZ03340-0412
337 75A0291 000 弹簧 SPRING 4 VZ03340-0418
412 55A1325 001 轴套 BUSHING 4 0DU1010
413 64A0275 000 凸轮轴 CAM SHAFT 2 5DC81X00-413
420 47A0069 000 凸轮 CAM 2 5DC81X01-420
423 04B0514 000 定位螺钉 SCREW 2 0SSSM66
471 04B0515 000 定位螺钉 SCREW 4 5DC81X01-471
472 03B0731 000 锁紧螺母 LOCKNUT 4 5DC81X00-472
501 83A0460 000 胶套 BOOT 2 5DC81X01-501
