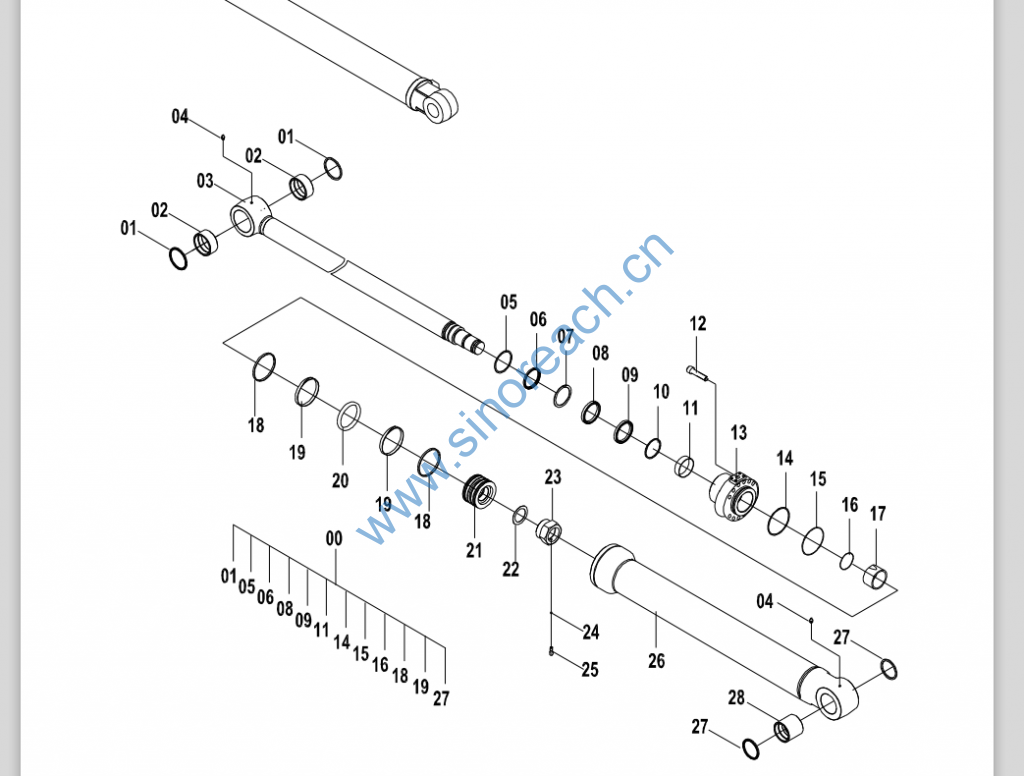

CLG920E/922E 10C1855 001 左动臂油缸 BOOM CYLINDER-LH

00 88A1068 000 密封包 SEAL KIT 1
01 13B0938 000 防尘圈 DUST RING 2 ME Φ80×Φ95×5
02 55A4868 000 轴套 BUSHING 2 00778.0096Y.003
03 14D0340 000 活塞杆 PISTON ROD 1 00778.0096Y.100A
04 10B0208 000 油杯 GREASE FITTING 2 GB1152-89
05 11B0258 000 挡圈 BACKUP RING 1 Q/HL 102126-2010
06 13B0611 000 防尘圈 Φ99/Φ85
×8/11 DUST RING 1 DKBI85
07 07B0515 000 挡圈 BACKUP RING Q/HL 102106-2010
08 12B1838 000 密封圈 SEAL RING 1 IUH 85
09 55A4870 000 缓冲环 BUFFERING RING 1 HBY 85
10 07B0516 000 挡圈 SNAP RING 1 Q/HL 102123-2010
11 55A4871 000 轴套 BUSHING 1 MB 5830
12 04B0764 000 螺钉 SCREW 12 GB70.1-85
13 53A1557 000 端盖 COVER 1 Q/HL 102101-2011
14 11B0251 000 挡圈 BACKUP RING 1 Q/HL 102126-2010
15 12B1839 000 O 形圈 O-RING 1 2-245
16 55A4872 000 缓冲环 BUFFERING RING 1 Q/HL 102107-2010
17 55A4867 000 缓冲套 CUSHION COLLAR 1 Q/HL 102102-2011
18 55A4873 000 导向环 GUIDE RING 2 Q/HL 102131-2011
19 56A2181 000 纳污环 WIPER RING 2
Q/HL
102125.1-2010
20 12B1844 000 密封圈 SEAL RING 1 PKZF 120
21 50A0564 000 活塞 PISTON 1 Q/HL 102103-2010
22 56A2185 000 垫片 GASKET 1 Q/HL 102122-2010
23 03B1538 000 螺母 NUT 1 Q/HL 102104-2010
24 20B0159 000 钢球 STEEL BALL 1 GB308-89
25 04B0857 000 螺钉 SCREW 1 GB/T80-85
26 13D0885 000 缸体 CYLINDER BODY 1
00778.0096Y.200(
L)
27 13B0937 000 防尘圈 DUST RING 2 ME Φ70×Φ85×5
28 55A4869 000 轴套 BUSHING 1 00778.0096Y.004
