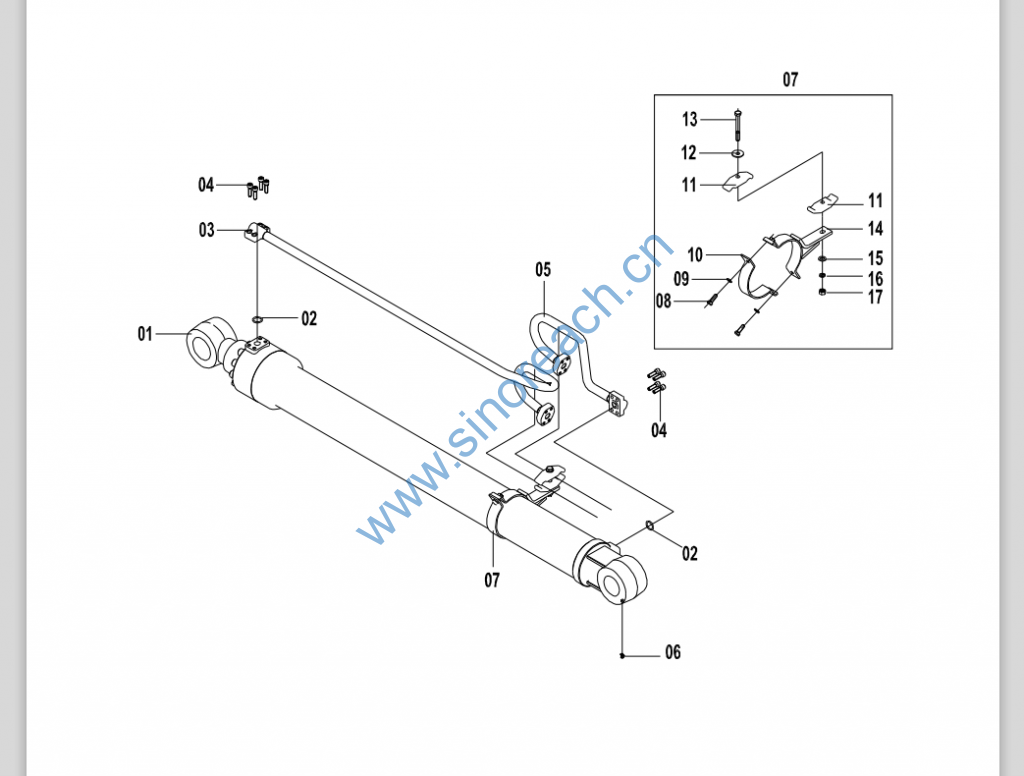

CLG920E/922E 10C1950 002 左动臂油缸总成 BOOM CYLINDER AS-LH

01 10C1855 001 左动臂油缸 BOOM CYLINDER-LH 1
02 12B0444 002 O 形圈 O-RING 2
03 10D4768 001 钢管 TUBE 1
04 04B0415 000 螺钉 SCREW 8
04 04B0416 000 螺钉 SCREW 8 04B0415
05 10D4773 001 钢管 TUBE 1
06 86A0258 002 油杯护套 BOOT 1
07 09C0798 000 管夹 CLAMP 1 09C1481
07 09C1481 000 管夹 CLAMP 1 Z
08 00B0019 000 螺栓 BOLT 2
09 06B0001 000 垫圈 WASHER 2
10 06A3955 000 管夹 CLAMP 1
10 21A1237 000 管夹 CLAMP 1 06A3955
11 72A1369 000 管夹 CLAMP 2
12 06B0007 000 垫圈 WASHER 1
13 01B0160 000 螺栓 BOLT 1
14 17D0472 000 管夹 CLAMP 1 17D0819
14 17D0819 000 管夹 CLAMP 1
15 06B0059 000 垫圈 WASHER 1 1
16 06B0008 000 垫圈 WASHER 1
17 03B0003 000 螺母 NUT 1
