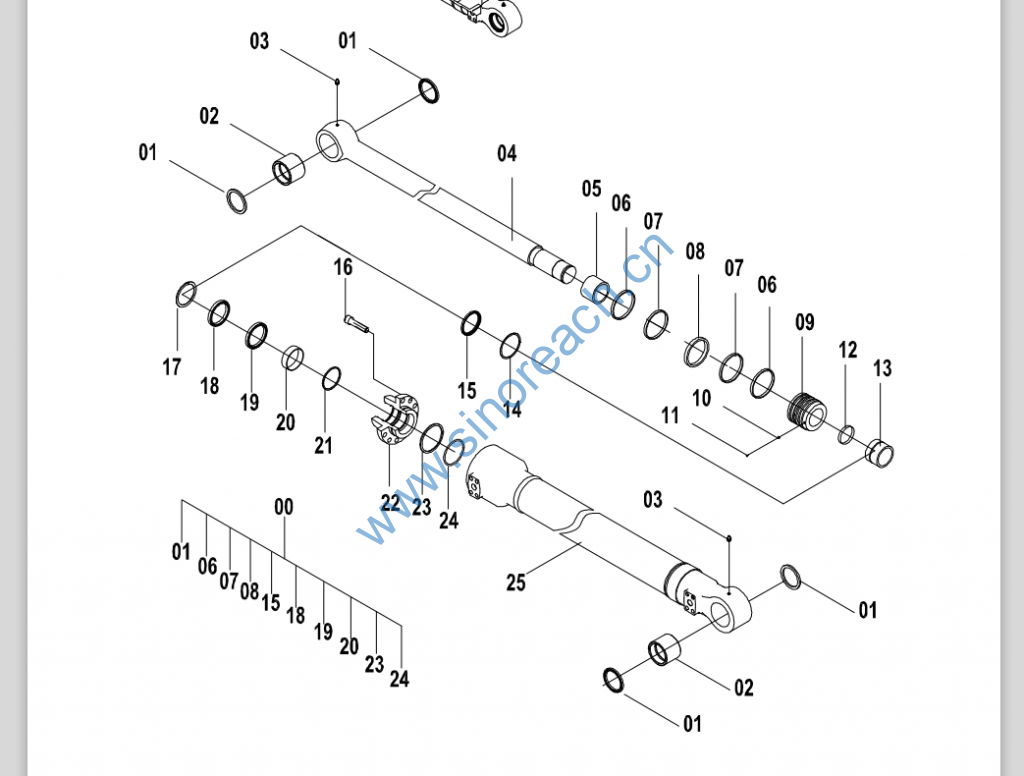

10C1854 001 铲斗油缸 BUCKET CYLINDER

00 88A1067 000 密封包 SEAL KIT 1
01 13B0937 000 防尘圈 DUST RING 4 ME Φ70×Φ85×5
02 55A4864 000 轴套 BUSHING 2 00778.0098Y.003
03 10B0208 000 油杯 GREASE FITTING 2 GB1152-89
04 14D0339 000 活塞杆 PISTON ROD 1 00778.0098Y.100
05 55A4862 000 缓冲套 CUSHION COLLAR 1
Q/HL
102102.1-2011
06 55A4866 001 纳污环 WIPER RING 2
Q/HL
102125.1-2010
07 55A4865 000 导向环 GUIDE RING 2 Q/HL 102131-2011
08 12B1843 000 密封圈 SEAL RING 1 PKZF 115
09 50A0563 000 活塞 PISTON 1 Q/HL 102103-2010
10 20B0159 000 钢球 STEEL BALL 1 GB308-89
11 04B0854 000 螺钉 SCREW 1 GB80-85
12 56A2182 000 垫片 GASKET 1 Q/HL 102122-2010
13 03B1537 000 螺母 NUT 1 Q/HL 102104-2010
14 07B0513 000 挡圈 BACKUP RING 1 Q/HL 102106-2010
15 13B0936 000 防尘圈 DUST RING 1 DKBI 80
16 04B0764 000 螺钉 SCREW 12 GB70.1-85
17 11B0261 000 挡圈 BACKUP RING 1 Q/HL 102127-2011
18 12B1842 000 密封圈 SEAL RING 1 IUH 80
19 55A3818 000 缓冲环 BUFFERING RING 1 HBY 80
20 55A3723 000 轴套 BUSHING 1 MB 8030
21 07B0514 000 挡圈 SNAP RING 1 Q/HL 102123-2010
22 53A1556 000 端盖 COVER 1 Q/HL 102101-2011
23 11B0262 001 挡圈 BACKUP RING 1 Q/HL 102126-2010
24 80A0813 001 O 形圈 O-RING 1 2-244
25 13D0884 000 缸体 CYLINDER BODY 1 00778.0098Y.200
