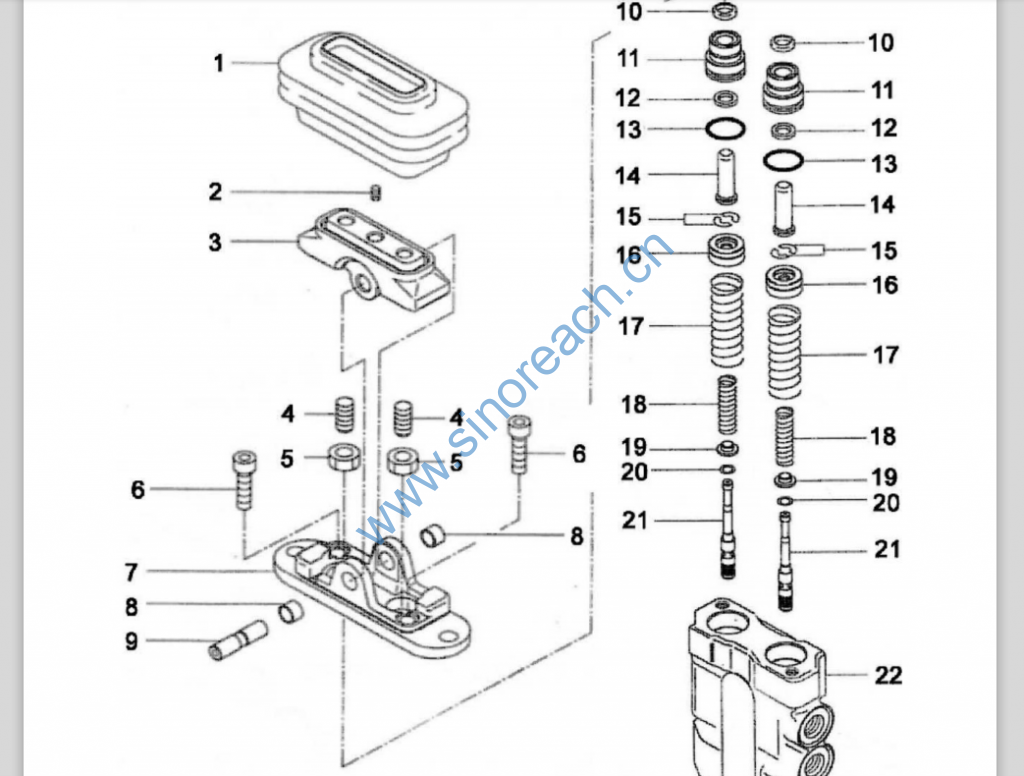

CLG920E/922E 12C0256 001 脚先导阀 FOOT PILOT VALVE

01 83A0460 000 胶套 BOOT 1 5DC81X01-501
02 04B0381 001 调节螺钉 SCREW 1 0SSSM66
03 47A0060 000 凸轮 CAM 1 5DC81X01-420
04 04B0382 000 调节螺钉 SCREW 2 5DC81X01-471
05 03B0614 000 螺母 NUT 2 5DC81X00-472
06 04B0380 000 螺钉 SCREW 2 5DC81X00-271
07 70A0149 000 阀盖 COVER CAP 1 5DC81X00C-201
08 39A0264 000 轴套 BUSHING 2 0DU1010
09 61A0549 000 凸轮轴 CAM SHAFT 1 5DC81X00-413
10 80A0240 000 刮油环 WIPER RING 2 5D06X00-211
11 03B0613 000 螺塞 PLUG 2 5DC81X01-202
12 80A0239 000 密封圈 SEAL RING 2 5DT61X20-213
13 12B0692 000 O 形圈 O-RING 2 OORBP20
14 65A0099 000 杆 ROD 2 5DC80X00-212
15 56A0365 000 垫片 SHIM 2 5DT01X00-215
16 10B0108 000 弹簧 SPRING 4 5DC81X00-311
17 10B0110 000 弹簧 SPRING 2 5DC81X10-335
18 10B0109 000 弹簧 SPRING 2 5DC81X05-324
19 57A0478 000 垫圈 WASHER 2 5DT01X00-217
20 06B0296 000 垫圈 WASHER 2 5DC81X00-313
21 65A0100 000 滑阀 SPOOL 2 5DC81X00A-301
22 78A0118 000 阀体 VALVE BODY 2 5DC81X01-101
