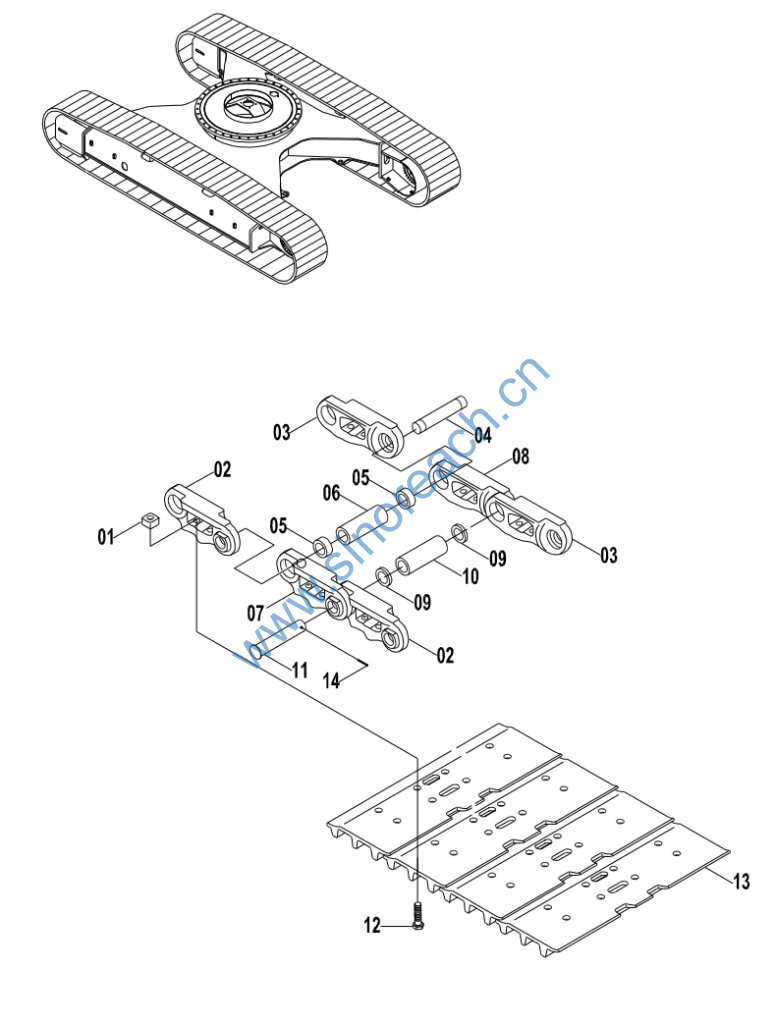

25C0700 001 履带总成 TRACK AS

00 25C0701 000 链轨总成 TRACK LINK AS 1 8190-MH-49000
01 03B1492 000 螺母 NUT 196 8216-MA-00064
02 72A1735 000 左链轨节 TRACK LINK-LH 48 8190-MH-00011
03 72A1734 000 右链轨节 TRACK LINK-RH 48 8190-MH-00021
04 60A2776 000 销 PIN 48 8190-MA-00041
05 80A0819 000 密封圈 SEAL RING 96 8190-MA-00051
06 55A4629 000 销套 PIN BUSHING 48 8190-MA-0031
07 72A1733 000 左主链轨节 MASTER LINK-LH 1 8190-MH-00012
08 72A1732 000 右主链轨节 MASTER LINK-RH 1 8190-MH-00022
09 80A0818 000 主密封圈 SEAL 2 8190-MA-00052
10 55A4630 000 主销套 PIN BUSHING 1 8190-MA-00032
11 60A2775 000 主销 CHAIN LINK 1 8190-MH-00043
12 02B0393 000 螺栓 BOLT 196 8190-MA-00062
13 26A3395 000 履带板 TRACK SHOE 49 8190-MA-003603
14 08B0444 000 开口销 COTTER PIN 1 GB/T91-2000
