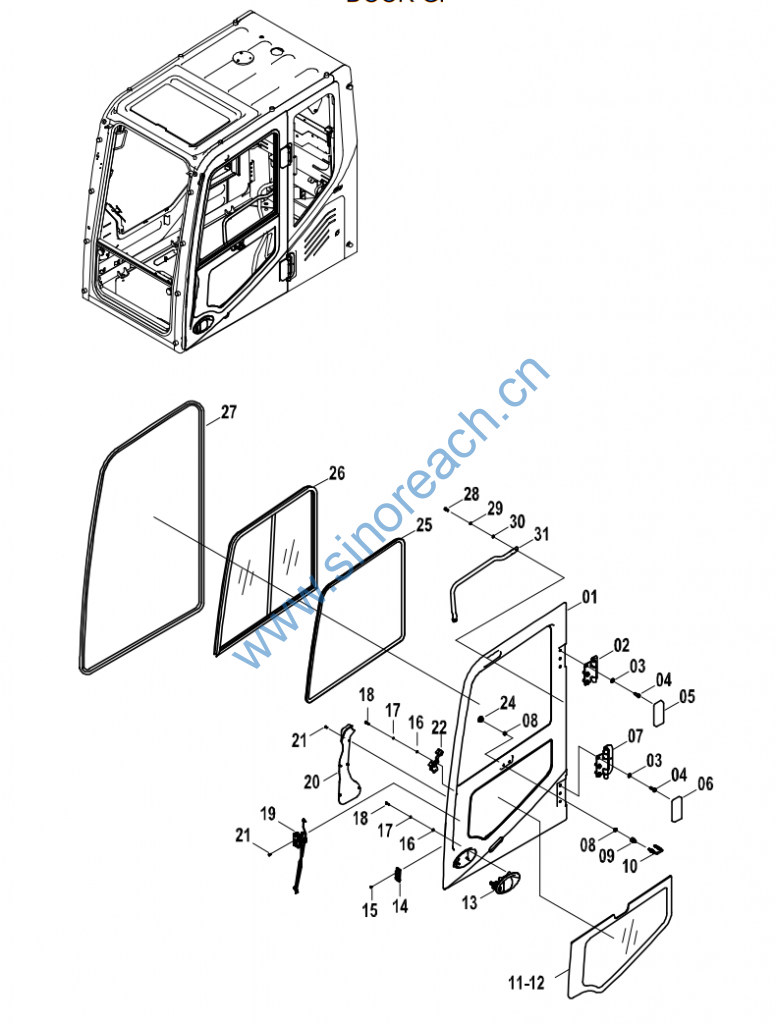

47C1338 001 门组件 DOOR GP

01 23D1813 000 门组件 DOOR GP 1
02 25C0481 000 铰链 HINGE 1
03 06B0007 000 垫圈 WASHER 6
04 00B0017 000 螺栓 BOLT 6
05 86A1003 000 盖 COVER 2
06 86A1993 000 盖 COVER
07 47C1339 000 门铰链 DOOR HINGE 1
08 03B0053 000 螺母 NUT 4
09 83A1591 000 橡胶套 BOOT 2
10 63A0690 000 锁扣 LOCK BUCKLE 1
11 87A0746 000 玻璃 GLASS 1
12 42B0005 002 西卡玻璃胶 SEAL 1
13 47C1874 000 外把手 HANDLE 1
14 84A2230 000 限位块 BLOCK 1
15 04B0073 000 螺钉 SCREW 6
16 06B0024 000 垫圈 WASHER 4
17 06B0003 000 垫圈 WASHER 4
18 00B0010 000 螺栓 BOLT 4
19 47C1875 000 锁块 LOCK BLOCK 1
20 86A1000 000 锁盖 LOCK COVER 1
21 04B0106 000 螺钉 SCREW 5 M
22 47C1876 000 把手 HANDLE 1
24 83A1573 000 橡胶套 BOOT 2
25 84A1819 000 玻璃窗橡胶条 SEAL 1
26 47C1341 001 推拉窗组件 WINDOW GP 1 Z
27 84A2229 000 门胶条 SEAL 1
28 00B0075 000 螺栓 BOLT 2
29 06B0219 000 垫圈 WASHER 2
30 06B0005 000 垫圈 WASHER 2
31 35A2468 000 把手 HANDLE 1
