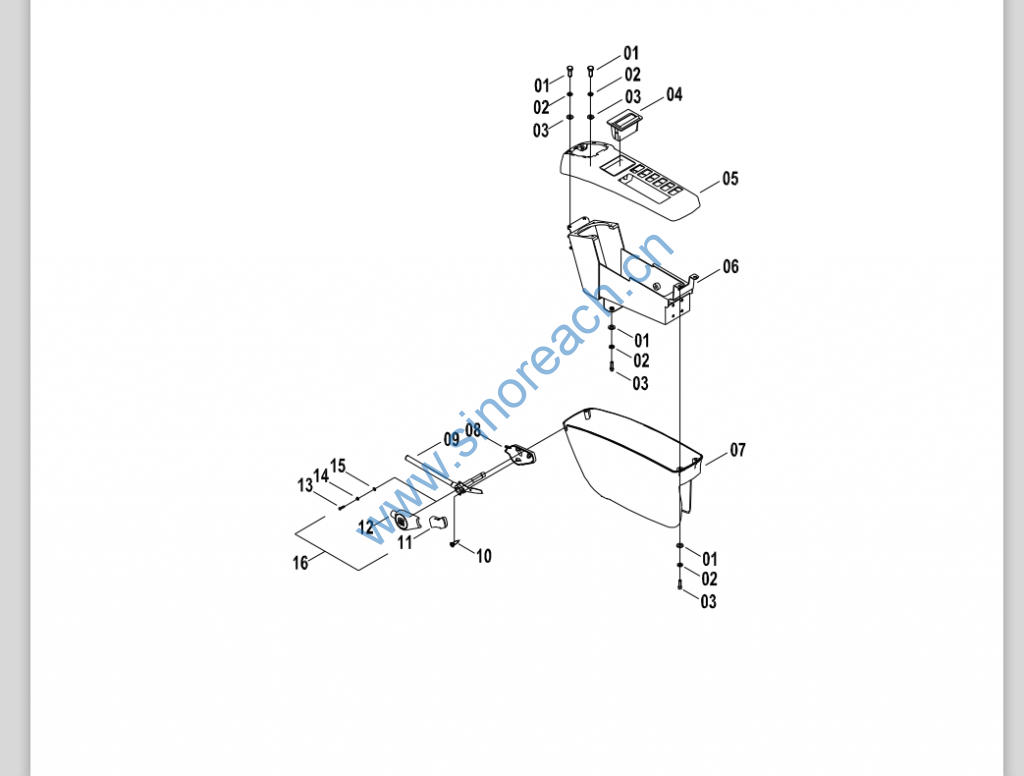

34C1707 002 左扶手箱总成 CONSOLE AS-LH

01 04B0195 000 螺钉 SCREW 8
02 06B0024 000 垫圈 WASHER 8
03 06B0003 000 垫圈 WASHER 8
04 34C1751 000 烟灰盒 ASHTRAY 1
05 86A0976 000 扶手箱上盖 UPPER COVER 1
06 23D1605 000 扶手箱支架 BRACKET 1
07 86A1802 000 扶手箱下盖 LOWER COVER 1
08 86A0717 左侧盖 SIDE COVER-LH 1
09 16D0772 锁定杆 LEVER 1
10 04B0210 000 螺钉 SCREW 5
11 86A0715 000 手柄 HANDLE 1
12 86A0716 右侧盖 SIDE COVER-RH 1
13 04B0170 000 螺钉 SCREW 1
14 09B0020 000 普通平键 FLAT KEY 1
15 07B0052 000 挡圈 SNAP RING 1
16 34C1633 先导切断手柄
PILOT SHUTOFF
LEVER 1
