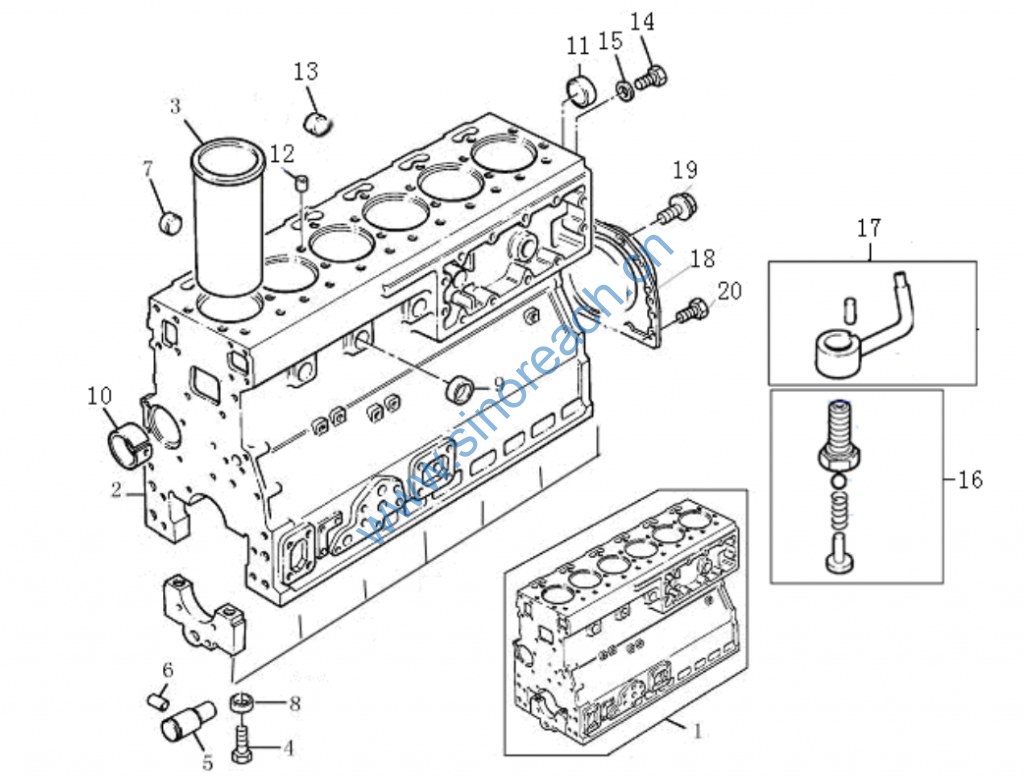

ACHA0277 Cylinder Block

1 AC10A 004 TZZ50271 机体总成 Cylinder block Assembly 1 1 1 1 1 1 1 1 1 1 1 1 1
2 T3711K054 机体 Cylinder block 1 1 1 1 1 1 1 1 1 1 1 1 1
3 T3135X062 缸套 Liner 6 6 6 6 6 6 6 6 6 6 6 6 6
4 T32166329 大瓦螺栓 Bolt 14 14 14 14 14 14 14 14 14 14 14 14 14
5 T3271H004A 介轮轴 Idler shaft 1 1 1 1 1 1 1 1 1 1 1 1 1
6 GB879-76 销（Φ6×26） Dowel 1 1 1 1 1 1 1 1 1 1 1 1 1
7 T3774A004 挺杆腔堵 Plug 6 6 6 6 6 6 6 6 6 6 6 6 6
8 T33142111 定位套 Thimble 14 14 14 14 14 14 14 14 14 14 14 14 14
9 T32418122 碗堵 Plug 12 12 12 12 12 12 12 12 12 12 12 12 12
10 AC10A 064 T31134165 衬套 Bush 1 1 1 1 1 1 1 1 1 1 1 1 1
11 AC10A 115 T32416119 堵 Plug 1 1 1 1 1 1 1 1 1 1 1 1 1
12 AC10A 121 T32417134 堵 Plug 1 1 1 1 1 1 1 1 1 1 1 1 1
13 AC10A 124 T64404002 堵 Plug 1 1 1 1 1 1 1 1 1 1 1 1 1
14 AC10A 325 T32168212 堵 Plug 1 1 1 1 1 1 1 1 1 1 1 1 1
15 AC10A 328 T72101002 垫圈 Washer 1 1 1 1 1 1 1 1 1 1 1 1 1
16 AC20L 456 T3861A027 冷却喷嘴 Jet 6 6 6 6 6 6 6 6 6 6 6 6 6
17 AC20L 500 T4138A017 冷却喷嘴阀 Jet valve 6 6 6 6 6 6 6 6 6 6 6 6 6
18 AC10A 373 T2418F701 后油封壳 Rear housing 1 1 1 1 1 1 1 1 1 1 1 1 1
19 AC10A 400 T3211C002 螺栓 Screw 6 6 6 6 6 6 6 6 6 6 6 6 6
20 AC10A 439 T3211C002 螺栓 Screw 4 4 4 4 4 4 4 4 4 4 4 4 4
