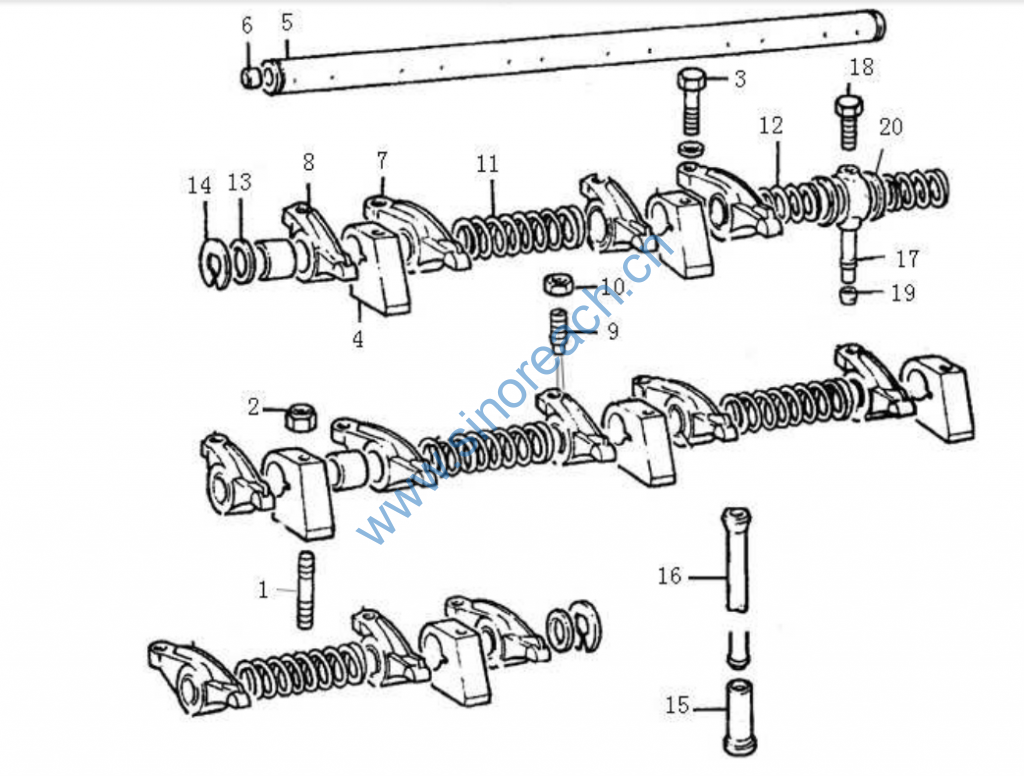

ACHA0277 Rocker shaft

1 AC10F 052 T2313H331 双头螺栓 Stud 4 4 4 4 4 4 4 4 4 4 4 4 4
2 AC10F 058 T2318A605 螺母 Nut 4 4 4 4 4 4 4 4 4 4 4 4 4
3 AC10F 061 T2314J607 螺栓 Screw 2 2 2 2 2 2 2 2 2 2 2 2 2
4 AC10F 070 T3818X901 摇臂轴座 Bracket 6 6 6 6 6 6 6 6 6 6 6 6 6
5 AC10F 082 T31411147 摇臂轴 Rocker shaft 1 1 1 1 1 1 1 1 1 1 1 1 1
6 AC10F 091 T0650507 堵 Plug 2 2 2 2 2 2 2 2 2 2 2 2 2
7 AC10F 103 T4115R306 摇臂组件 Lever assy. Rocker LH 6 6 6 6 6 6 6 6 6 6 6 6 6
8 AC10F 109 T4115R305 摇臂 Rocker arm 6 6 6 6 6 6 6 6 6 6 6 6 6
9 AC10F 127 T32114145 螺栓 Screw 12 12 12 12 12 12 12 12 12 12 12 12 12
10 AC10F 130 T0576052 螺母 Nut 12 12 12 12 12 12 12 12 12 12 12 12 12
11 AC10F 133 T31744123 弹簧 Spring 4 4 4 4 4 4 4 4 4 4 4 4 4
12 AC10F 136 T31743108 弹簧 Spring 2 2 2 2 2 2 2 2 2 2 2 2 2
13 AC10F 163 T33117434 垫圈 Washer 2 2 2 2 2 2 2 2 2 2 2 2 2
14 AC10F 166 T0170151 卡簧 Circlip 2 2 2 2 2 2 2 2 2 2 2 2 2
15 AC10J 239 T3142U031 挺杆 Tappet 12 12 12 12 12 12 12 12 12 12 12 12 12
16 AC10J 257 T31434307 挺柱 Pushrod 12 12 12 12 12 12 12 12 12 12 12 12 12
17 AC20N 011 T3775E012 接头 Connection 1 1 1 1 1 1 1 1 1 1 1 1 1
18 AC20N 020 T2233022 螺栓 Screw 1 1 1 1 1 1 1 1 1 1 1 1 1
19 AC20N 023 T33811113 橄榄体 Olive 1 1 1 1 1 1 1 1 1 1 1 1 1
20 AC20N 025 T3311K015 垫片 Washer 2 2 2 2 2 2 2 2 2 2 2 2 2
