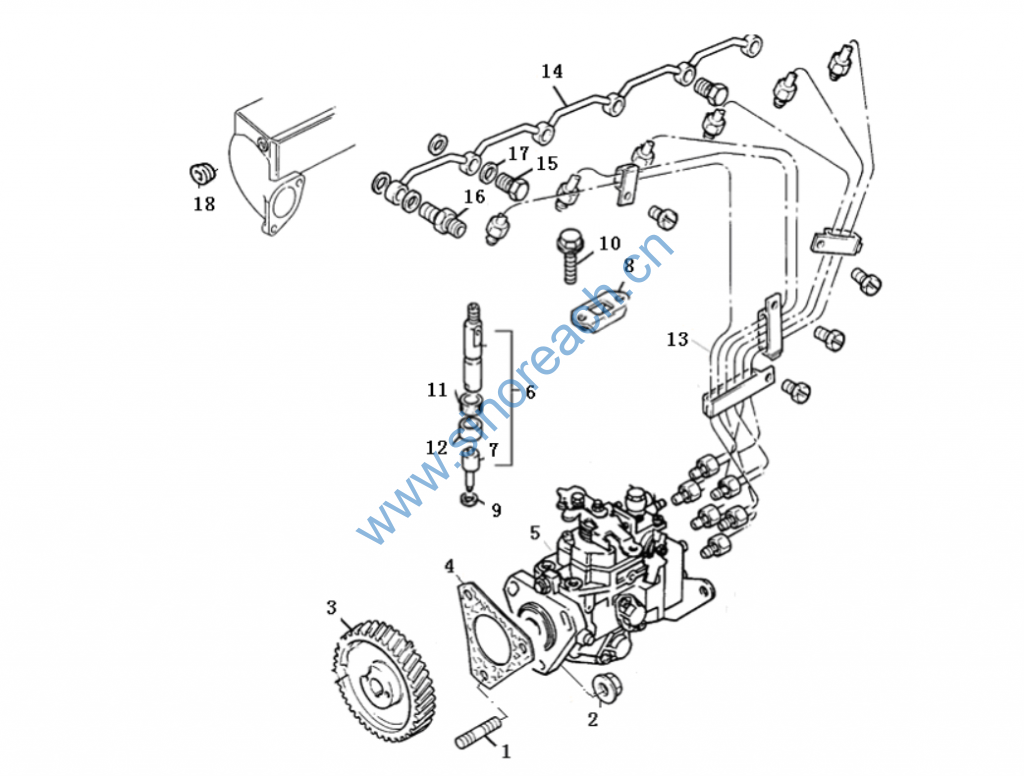

ACHA0277 Fuel Injection Equipment

1 AF17D 0004 T3211P004 丝对 Stud 4
2 AF17D 0037 T2318A603 螺母 Nut 4
3 AF17D 0058 T3117L052 齿轮 Gear 1
4 AF17D 0088 T3682A008A 垫 Joint 1
5 AF17D 0094 T832210030 喷油泵 Fuel pump 1
6 AF17E 0001 T2645L017 喷油器 Atomizer Assy. 6
7 AF17E 0020 T2645L615 喷嘴 Nozzle 1
8 AF17E 0004 T3662K002 压板 Clamp 6
9 AF17E 007 T0921173 垫圈 Washer 6
10 AF17E 0008 T2314H006 螺栓 Screw 12
11 AF17E 0035 T33813129 隔圈 Spacer 6
12 AF17E 0037 T33813131 橡胶盖 Cover 6
13 AF17M 0002 T833050010 高压油管 High Pressure Pipe 1
14 AF17N 0001 T3558X021 油管 pipe 1
15 AF17N 0034 T0095315 过油螺栓 Screw 5
16 AF17N 0043 T0201526 过油螺栓 Screw 2
17 AF17N 0049 T2411101 垫圈 Washer 12
18 AF33G 0041 T2431131 堵 Plug 1
