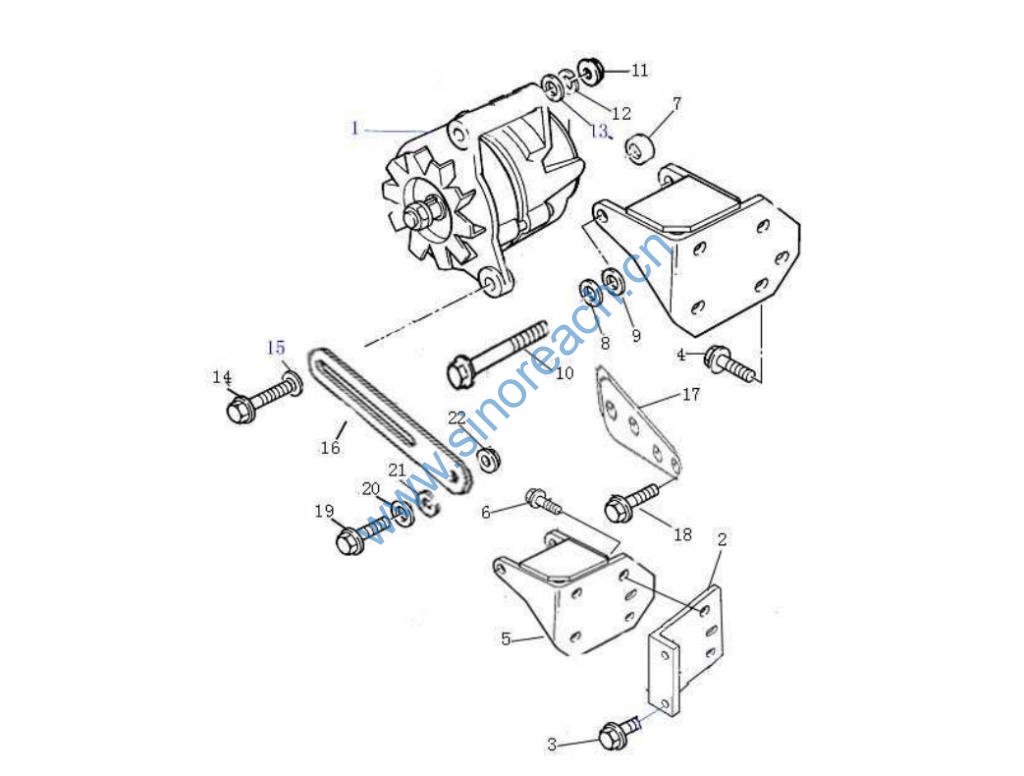

NDH01533 Alternator & Generator

1 ND* T74501034 发电机(24V) Alternator 1 1 1 1 T64503055 皮带轮 Pulley 1 1 1 1 T64505018 碳刷 Carbon Brush 1 1 1 1 T64501023-1 调节器 Adjuster 1 1 1 1 2 ND* T74502115 连接板 Connecting plate 1 1 1 1
3 ND* T2314H013 螺栓 Screw 2 2 2 2 4 ND* T2314J002 螺栓 Screw 1 1 1 1
5 ND* T74502116 发电机支架 Bracket 1 1 1 1 6 ND* T2314J001 螺栓 Screw 4 4 4 4
7 ND* T3318H104 衬套 Spacer 2 2 2 2 8 ND* T3312K022 垫片 Washer 2 2 2 2
9 ND* T2131A010 垫圈 Washer 1 1 1 1 10 ND* T2314J018 螺栓 Screw 1 1 1 1
11 ND* GB6170-86M10 螺母 Nut 1 1 1 1 12 ND* GB93-87D10 垫圈 Washer 1 1 1 1
13 ND* GB97.1-85D10 垫圈 Washer 1 1 1 1 14 ND* T2314J004 螺栓 M10X30 Screw 1 1 1 1
15 ND* T2131A010 垫圈 Washer 1 1 1 1 16 ND* T3615X015 调节杆 Adjusting lever 1 1 1 1
17 ND* T74502117A 调节杆支座 Bracket 1 1 1 1 18 ND* T2314J602 螺栓 Screw 2 2 2 2
19 ND* T2314J603 螺栓 Screw 1 1 1 1 20 ND* GB97.1-85D12 垫圈 Washer 2 2 2 2
21 ND* GB93-87D12 弹簧垫圈 Spring Washer 1 1 1 1 22 ND* GB6170-86M12 螺母 Nut 1 1 1 1
