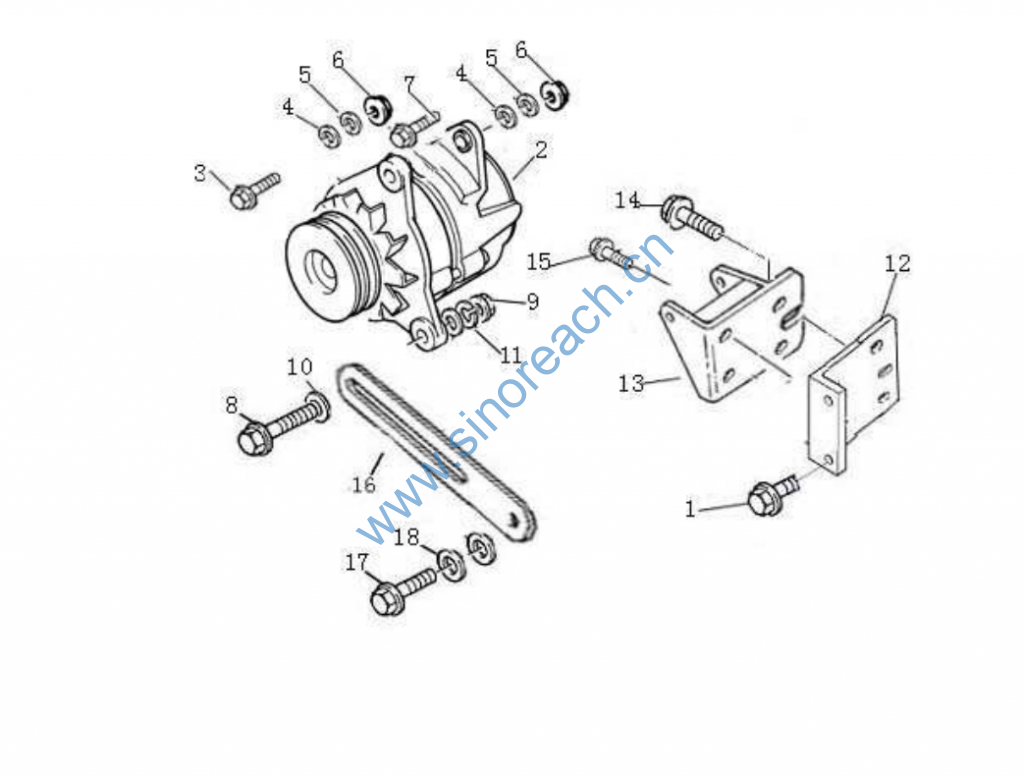

NDH01533 Alternator & Generator

1 ND10B 008 T2314H013 螺栓 Screw 2 2 2 2 2 2 2 2
2 ND24A 004 T74501024 发电机(12V) Alternator 1 1 1 1 1 1 1 1
T64503054 皮带轮 Pulley 1 1 1 1 1 1 1 1
T64505017 碳刷 Carbon Brush 1 1 1 1 1 1 1 1
T64501036-1 调节器 Adjuster 1 1 1 1 1 1 1 1
3 ND24A 054 T2314H006 螺栓 Screw 1 1 1 1 1 1 1 1
4 ND24A 056 T0920497 垫圈 Washer 2 2 2 2 2 2 2 2
5 ND24A 095 GB93-87D8 垫圈 Washer 2 2 2 2 2 2 2 2
6 ND24A 097 GB5783-86M8 螺母 Nut 2 2 2 2 2 2 2 2
7 ND24A 094 T2314H008 螺栓 Screw 1 1 1 1 1 1 1 1
8 ND24A 133 T2314J005 螺栓 Screw 1 1 1 1 1 1 1 1
9 ND24A 136 GB6170-86M10 螺母 Nut 1 1 1 1 1 1 1 1
10 ND24A 142 T2131A010 垫圈 Washer 2 2 2 2 2 2 2 2
11 ND24A *** GB93-87D10 弹簧垫 D10 Washer 1 1 1 1 1 1 1 1
12 ND24B 004 T3641P004D 支架 Bracket 1 1 1 1 1 1 1 1
13 ND24B 016 T3827H025B 支架 Bracket 1 1 1 1 1 1 1 1
14 ND24B 127 T2314J003 螺栓 Screw 1 1 1 1 1 1 1 1
15 ND24B 165 T2314H002 螺栓 Screw 4 4 4 4 4 4 4 4
16 ND24B 322 T3615X015 调节杆 Adjusting lever 1 1 1 1 1 1 1 1
17 ND24B 367 T2314J602 螺栓 Screw 1 1 1 1 1 1 1 1
18 ND24B 365 T2131A012 垫圈 Washer 2 2 2 2 2 2 2 2
