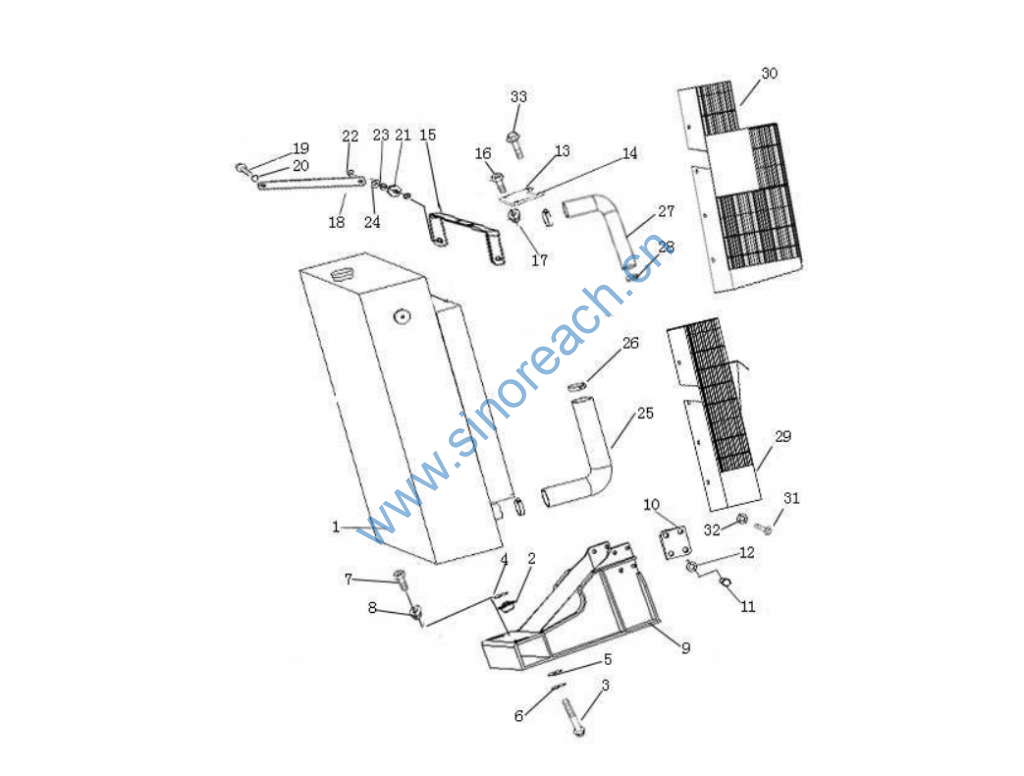

ZMH0008 Radiator and Bracket

1 ZM22A 001 T75601009/T65619001A 水箱 Water tank 1 1 1 1 1 1
2 ZM22A 040 T33546 减震器 Damper 2 2 2 2 2 2
3 ZM22A 042 T2314J008 螺栓 Washer 2 2 2 2 2 2
4 ZM22A 043 T33124118 垫圈 Washer 2 2 2 2 2 2
5 ZM22A 046 T0920471 垫圈 Washer 2 2 2 2 2 2
6 ZM22A 048 T33115117 垫圈 Washer 2 2 2 2 2 2
7 ZM22A 049 T2311F055 螺栓 Screw 4 4 4 4 4 4
8 ZM22A 055 T2318A603 螺母 Nut 4 4 4 4 4 4
9 ZM22A 100 T3828H006A 支架 Bracket 1 1 1 1 1 1
10 ZM22A *** T63903016 垫板 Pad 1 1 1 1 1 1
11 ZM22A 102 GB5783 M16X45 螺栓 Screw 8 8 8 8 8 8
12 ZM22A 094 T0920009 垫圈 Washer 8 8 8 8 8 8
13 ZM22A 153 T3621X011 支架 Bracket 1 1 1 1 1 1
14 ZM22A 166 T33135115 隔圈 Spacer 1 1 1 1 1 1
15 ZM22A 183 T3651A004A 水箱拉杆 Pull rod 1 1 1 1 1 1
16 ZM22A 184 T2314H004 螺栓 Screw 2 2 2 2 2 2
17 ZM22A 185 T2318A603 螺母 Nut 2 2 2 2 2 2
18 ZM22A 193 T3612T006B 水箱拉杆 Pull rod 2 2 2 2 2 2
19 ZM22A 196 T2314H003 螺栓 Screw 2 2 2 2 2 2
20 ZM22A 198 T2131A008 垫圈 Washer 2 2 2 2 2 2
21 ZM22A 205 T2634A115 减震垫 Damper 2 2 2 2 2 2
22 ZM22A 207 T2318A209 螺母 Nut 4 4 4 4 4 4
23 ZM22A 208 T2131A010 垫圈 Washer 4 4 4 4 4 4
24 ZM22A 209 T2131A010 垫圈 Washer 4 4 4 4 4 4
25 ZM22A 373 T3482E017A 胶管 Hose 1 1 1 1 1 1
26 ZM22A 375 T0180070A 卡箍 Clip 2 2 2 2 2 2
27 ZM22A 384 T3482E018B 胶管 Hose 1 1 1 1 1 1
28 ZM22A 387 T0180070A 卡箍 Clip 2 2 2 2 2 2

29 ZM22A 504 T3756V051C 护网 Protecting net 1 1 1 1 1 1
30 ZM22A 505 T3756V046C 护网 Protecting net 1 1 1 1 1 1
31 ZM22A 508 T2314F003 螺栓 Screw 10 10 10 10 10 10
32 ZM22A 510 T0920026 垫圈 Washer 10 10 10 10 10 10
33 ZM22P 001 T2314K161 螺栓 Screw 2 2 2 2 2 2
