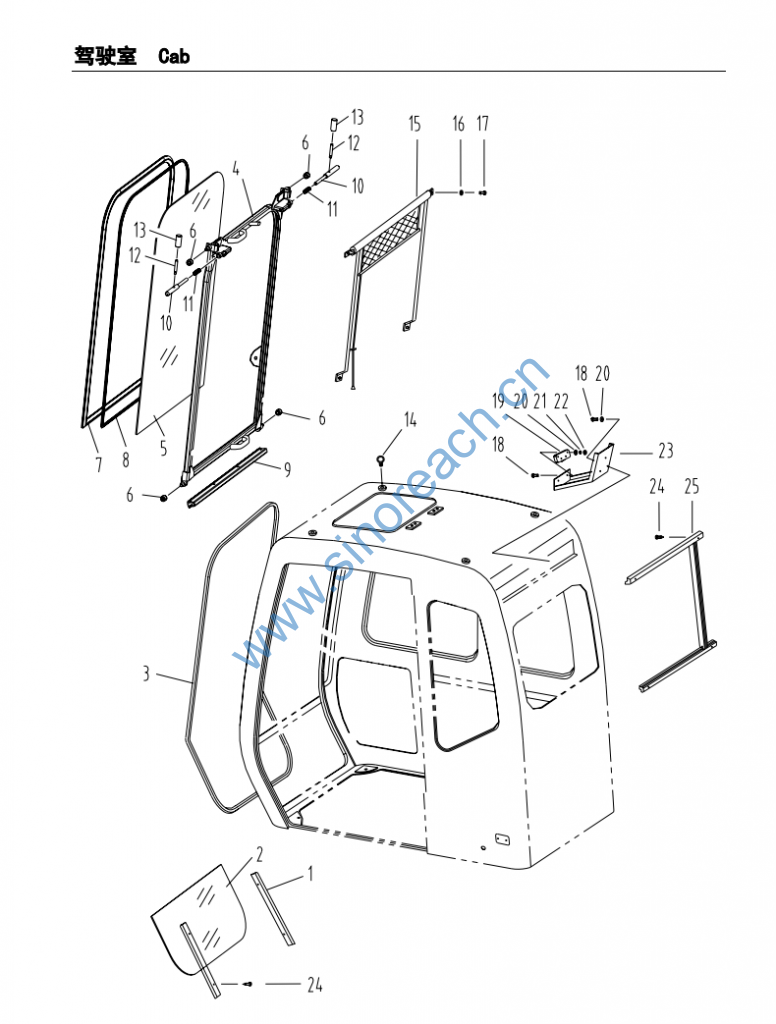

CLG200 驾驶室 Cab

1 20A1872 压板 Plate 2
2 87A0073 底窗玻璃 Glass 1
3 35C0060 密封胶条 Seal 1 4002R
4 23D0282 窗框 Window Bracket 1
5 87A0074 前窗玻璃 Glass 1
6 80A0008 滚筒 Roller 4
7 84A0223 胶条 Seal 1
8 84A0224 芯条 Seal 1
9 84A0226 密封条 Seal 1
10 60A0208 销轴 Pin 1
11 10B0004 弹簧 Spring 2
12 61A0021 推销 Pin 2
13 84A0010 胶套 Rubber Sleeve 2
14 88A0279 吊环 Stationary Rings 4
15 34C0195 前窗帘 Curtain 1
16 06B0017 垫圈 5 Lock Washer 4 GB93-87
17 04B0221 螺钉 SM5×12-4.8-Zn.D Screw 4 GB818-85
18 00B0023 螺栓 M6×25-8.8-Zn.D Bolt 5 GB5783-86
19 34C0194 碰锁 Lock 1 NBS609
20 06B0024 垫圈 6-140HV-Zn.D Washer 5 GB97.1-85
21 06B0003 垫圈 6- Lock Washer 2 GB93-87
22 03B0036 螺母 M6-8-Zn.D Nut 2 GB6170-86
23 20A1895 碰锁座 Cover 1
24 04B0044 螺钉 ST4.8×16-C-H-Zn.D Screw 8 GB845-85
25 34C0196 后窗帘 Curtain 1
