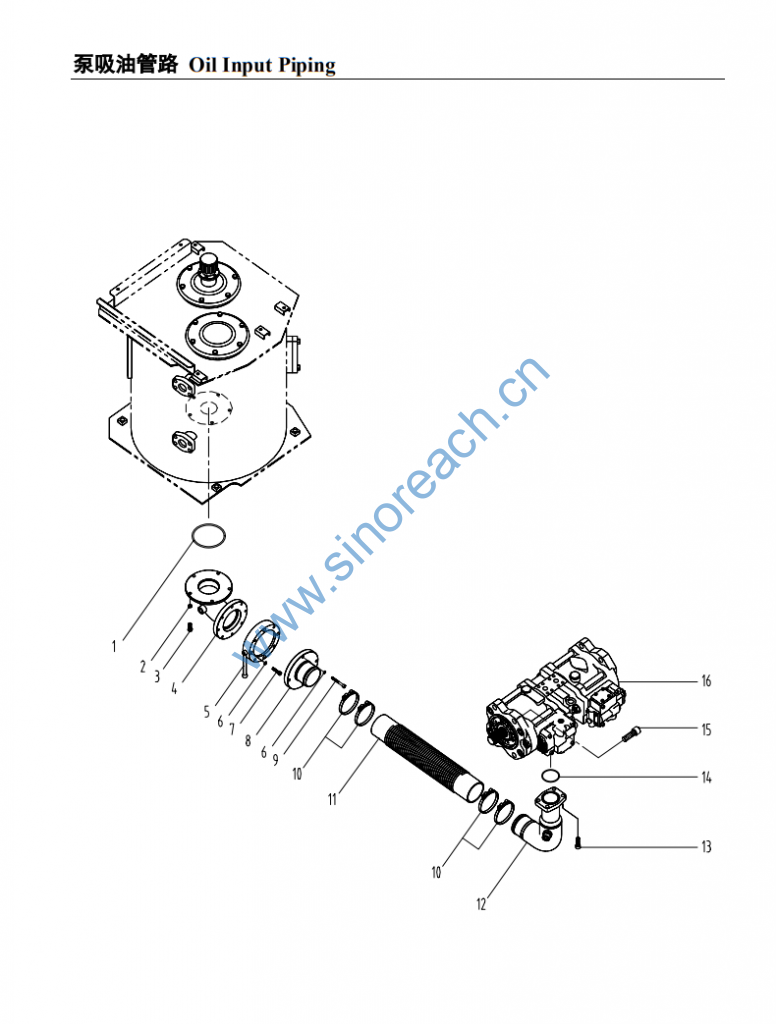

CLG200 泵吸油管路 Oil Input Piping

1 12B0026 O 形圈 125×5.3 O-ring 1 GB3452.1-92
2 06B0002 垫圈 10 Lock Washer 5 GB93-87
3 00B0019 螺栓 M10×30-8.8-Zn.D Bolt 5 GB5783-86
4 10D0299 油箱出油管 Pipe 1
5 15C0001 旋式阀门 Valve 1 WY-5
6 06B0006 垫圈 8 Lock Washer 8 GB93-87
7 04B0016 螺钉 M8×35-8.8-Zn.D Screw 4 GB70-85
8 10D0015 油箱出油管 Pipe 1 04N1744
9 04B0017 螺钉 M8×70-8.8-Zn.D Screw 4 GB70-85
10 09C0040 T 型抱箍φ98 Clamp 4 140315
11 30A0067 胶管 Hose 1 04N1863
12 10D0334 吸油钢管 Pipe 1 11N1701
13 04B0015 螺钉 M12×40-10.9 Screw 4 GB70-85
14 12B0020 O 形圈 65×3.55 O-ring 1 GB3452.1-92
15 04B0012 螺钉 M20×60-10.9 Screw 4 GB70-85
16 11C0005 变量双泵 Pump 1 K3V112DT
