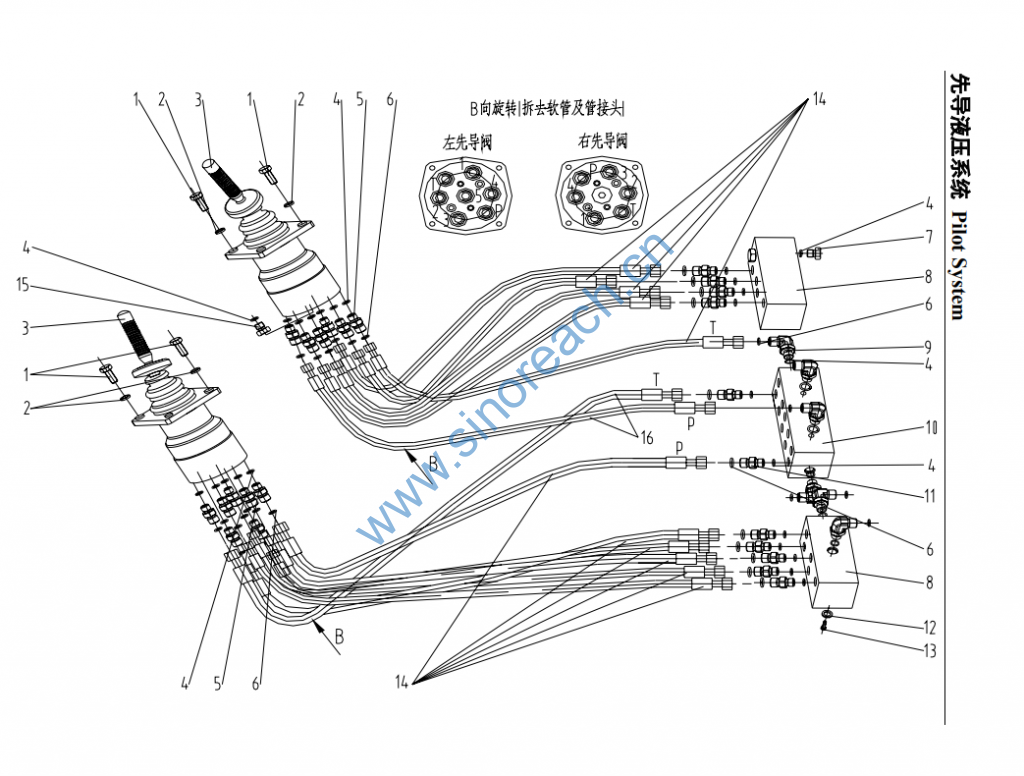

CLG200 先导液压系统 Pilot System

1 00B0194 螺栓 M6×30-8.8-Zn.D Bolt 8 GB5783-86
2 06B0003 垫圈 6 Lock Washer 8 GB93-87
3 12C0042 手先导阀 Pilot Valve 2
4 12B0261 O 形圈 16X2.4 O-ring 31 GB1235-76
5 00A0016 接头 Joint 13
6 12B0248 O 形圈 9X1.8 O-ring 26 GB3452.1-92
7 05A0017 螺塞 Plug 3
8 78A0006 接头块 Joint Block 2
9 31C0003 接头 Joint 2
10 02A0060 接头块 Joint Block 1
11 00A0018 接头 Joint 11
12 06B0002 垫圈 10 Lock Washer 6 GB93-87
13 00B0005 螺栓 M10×20-8.8-Zn.D Bolt 6 GB5783-86
14 05C0063 软管总成 Hose 11
15 05A0053 螺塞 Plug 1
16 05C0013 软管总成 Hose 2
