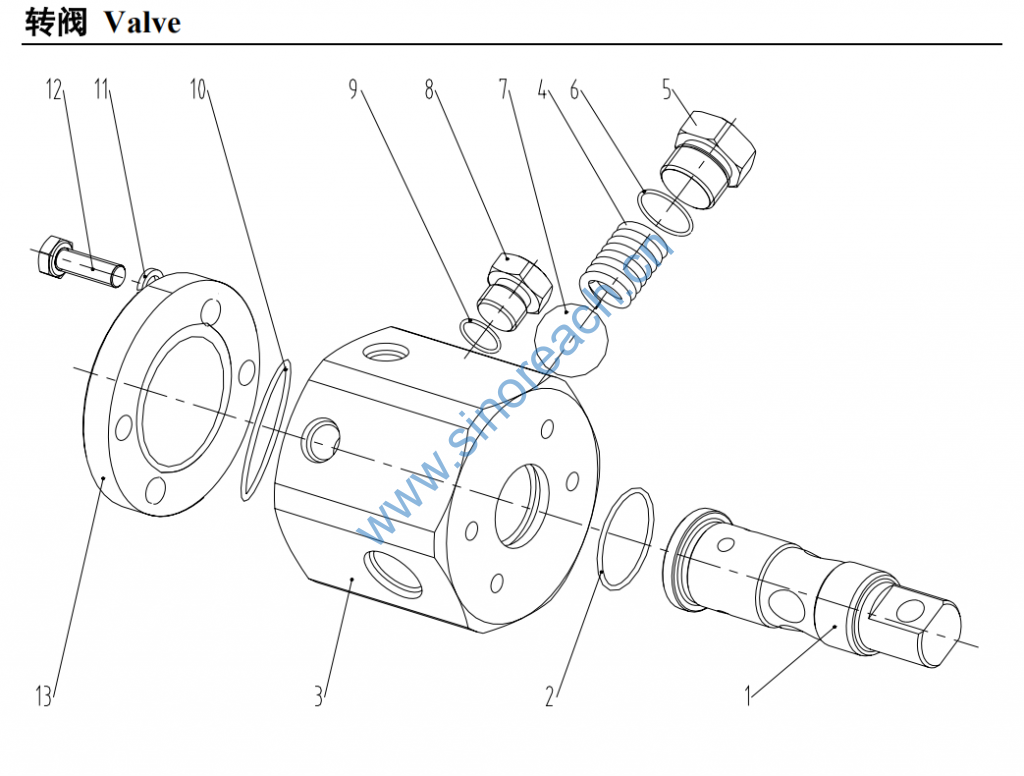

CLG200 转阀 Valve

1 65A0007 阀杆 Spool 1
2 12B0015 O 形圈 30X3.55 O-ring 1 GB3452.1-92
3 78A0003 阀体 Valve Body 1
4 00B0053 螺塞 Plug 2
5 12B0043 O 形圈 24X2.4 O-ring 2 GB1235-76
6 75A0005 弹簧 Spring 2
7 20B0012 钢球 12.7 Ball 2 GB308-84
8 03B0064 堵头 P 3
9 12B0261 O 形圈 16X2.4 O-ring 3 GB1235-76
10 12B0019 O 形圈 46.2X3.55 O-ring 1 GB3452.1-92
11 06B0006 垫圈 8 Washer 4 GB93-87
12 00B0085 螺栓 M8X25-8.8-Zn.D Bolt 4 GB5783-86
13 52A0015 后盖 Cover 1
