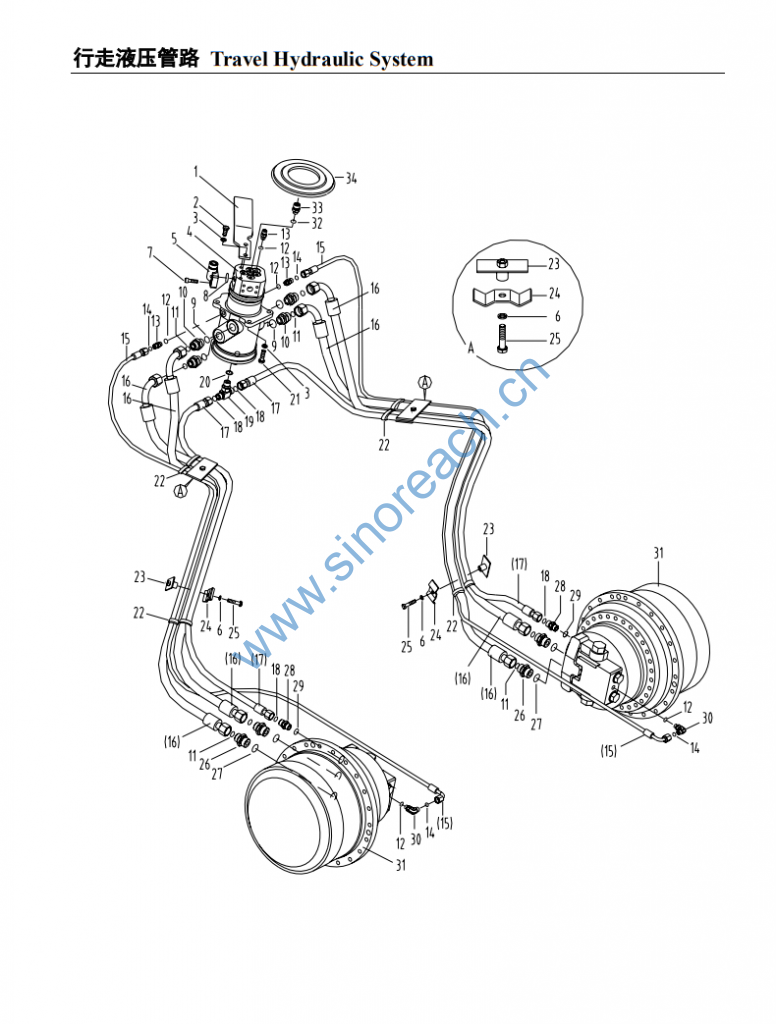

CLG200 行走液压管路 Travel Hydraulic System

1 23A0020 固定板 Plate 1 04E4315
2 00B0011 螺栓M12×25-8.8-Zn.D Bolt 2 GB5783-86
3 06B0008 垫圈12 Lock Washer 6 GB93-87
4 12C0002 中心接头 Rotary Connection 1 04E0006
5 03A0021 法兰接头 Joint 4 04E1601
6 06B0002 垫圈10 Lock Washer 4 GB93-87
7 04B0013 螺钉M10X35-12.9-Zn.D Screw 16 GB70-85
8 12B0271 O形圈25.8×3.55 O-ring 4 GB3452.1-92
9 12B0379 O形圈30×3.1 O-ring 4 GB1235-76
10 36B0043 接头 Joint 4 JT063027
11 12B0021 O形圈19X1.8 O-ring 8 GB3452.1-92
12 12B0261 O形圈16X2.4 O-ring 5 GB1235-76
13 00A0018 接头 Joint 3 04N1007
14 12B0248 O形圈9X1.8 O-ring 4 GB3452.1-92
15 06C0003 软管总成 Hose As. 2 04E1810
16 07C0002 软管总成 Hose As. 4 04E1803
17 06C0004 软管总成 Hose As 2 04E1802
18 12B0232 O形圈15×1.8 O-ring 4 GB3452.1-92
19 32C0001 三通接头 Joint 1 04E1106
20 12B0043 O形圈24X2.4 O-ring 1 GB1235-76
21 00B0013 螺栓M12×40-8.8-Zn.D Bolt 4 GB5783-86
22 37B0009 扎带 Clamp 8 ZD150X3.5
23 00D0019 座 Bracket 4 04E3001
24 20A0085 板 Plate 4 04E4301
25 01B0200 螺栓M10X45-8.8-Zn.D Bolt 4 GB5782-86
26 00A0005 接头 Joint 4 04E1107
27 12B0013 O形圈28X3.55 O-ring 4 GB3452.1-92
28 00A0006 接头 Joint 2 04E1109
29 12B0207 O形圈22X2.4 O-ring 2 GB1235-76
30 31C0004 直角接头 Joint 2 04N1110
31 11C0025 行走马达 Motor 2 GM35VL
32 12B0215 O形圈18X2.4 O-ring 1 GB1235-76
33 00A0007 接头 Joint 1 04E1005
