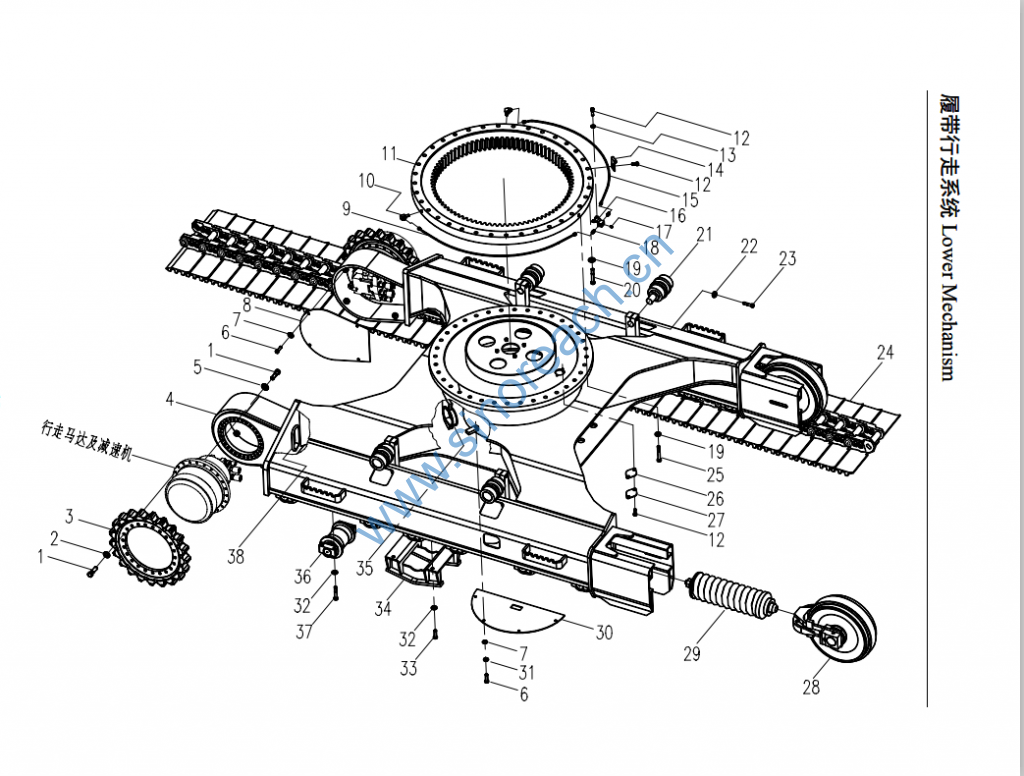

CLG200 履带行走系统 Lower Mechanism

1 01B0355 螺栓 M16×60-10.9-Zn.D Bolt 104 GB5782-86
2 06B0245 垫圈 16 Lock Washer 44 GB7244-87
3 46A0016 驱动轮 Sprocket 2
4 00D0670 组合式行走架 Lower Frame 1
5 06B0221 垫圈 16 Washer 60 GB/T1230-91
6 00B0011 螺栓 M12×25-8.8-Zn.D Bolt 16 GB5783-86
7 06B0059 垫圈 12-140HV-Zn.D Washer 16 GB96-85
8 11A0622 驱动轮罩 Cover 2
9 00C0238 右油管总成 RH Hose 1
10 01A0134 接头 Joint 2
11 26B0010 回转支承 Swing Bearing 1
12 00B0056 螺栓 M10×16-8.8-Zn.D Bolt 6
13 06B0001 垫圈 10-140HV-Zn.D Washer 2 GB97.1-85
14 20A1860 管夹 Clip 2
15 00C0237 左油管总成 LH Hose 1
16 15D0217 接头块 Block 1
17 10B0014 油杯 M10×1 Grease Nipple 1 GB1152-89
18 00A0204 接头 Joint 2
19 06B0220 垫圈 22 Washer 72 GB/T1230-91
20 01B0382 螺栓 M22×100-10.9-Zn.D Bolt 36 GB5782-86
21 51C0035 托链轮 Upper Roller 4
22 06B0226 垫圈 24 Washer 4 GB/T1230-91
23 01B0186 螺栓 M24×90-10.9-Zn.D Bolt 4 GB5783-86
24 25C0030 履带总成 Track-Link 2
25 01B0023 螺栓 M22×70-10.9-Zn.D Bolt 36 GB5782-86
26 82A0196 垫 Washer 1
27 12A0520 盖板 Cover 1
28 51C0113 引导轮总成 Front Idler 2
29 44C0090 张紧装置 Adjuster 2

30 11A0194 底封板 Cover 2
31 06B0008 垫圈 12 Washer 8 GB93-87
32 06B0223 垫圈 18 Washer 72 GB/T1230-91
33 00B0183 螺栓 M18×45-8.8-Zn.D Bolt 8 GB5783-86
34 48D0025 履带护罩 Guard Cover 2
35 84A0037 橡胶护罩 Rubber Guard 2
36 51C0112 支重轮 Lower Roller 16
37 01B0020 螺栓 M18×90-8.8-Zn.D Bolt 64 GB5782-86
