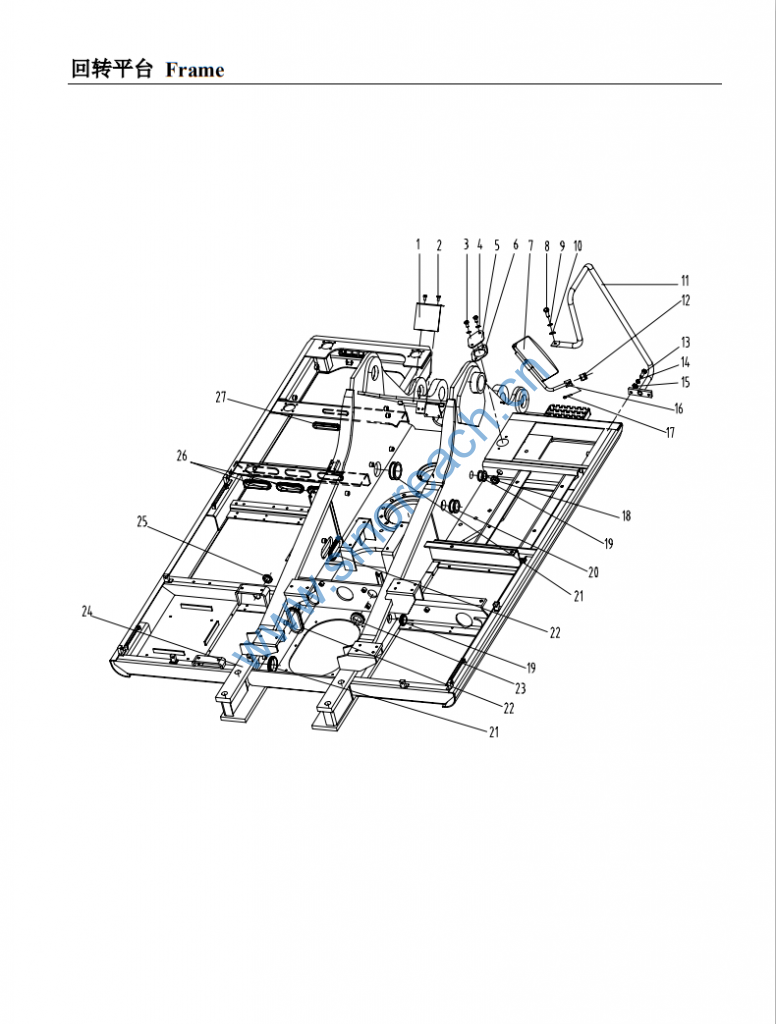

CLG200 回转平台 Frame

1 30A0015 挡雨板 Fender 1
2 00B0007 螺栓 M8×16-8.8-Zn.D Bolt 2 GB5783-86
3 00B0022 螺栓 M6×12-8.8-Zn.D Bolt 2 GB5783-86
4 06B0003 垫圈 6 Washer 2 GB93-87
5 53A0015 盖 Cover 1
6 82A0020 垫 Shim 1
7 47C0110 倒车镜 Rearview Mirror 1
8 00B0011 螺栓M12×25-8.8-Zn.D Bolt 1 GB5783-86
9 06B0008 垫圈 12 Washer 1 GB93-87
10 06B0007 垫圈 12-140HV-Zn.D Washer 1 GB97.1-85
11 41D0075 扶手 Armrest 1
12 54A0100 座 Clamp 1
13 00B0085 螺栓 M8×25-8.8-Zn.D Bolt 2 GB5783-86
14 06B0006 垫圈 8 Washer 2 GB93-87
15 06B0005 垫圈 8-140HV-Zn.D Washer 2 GB97.1-85
16 00D0537 支承杆 Stay 1
17 04B0016 螺钉 M8×35-8.8-Zn.D Bolt 2 GB70-85
18 83A0009 橡胶圈 Rubber Bushing 1
19 83A0016 橡胶圈 Rubber Bushing 2
20 83A0017 橡胶圈 Rubber Bushing 1
21 83A0014 橡胶圈 Rubber Bushing 3
22 83A0034 橡胶圈 Rubber Bushing 2
23 83A0035 橡胶圈 Rubber Bushing 1
24 20D0013 回转平台 Frame 1
25 83A0011 橡胶圈 Rubber Bushing 1
26 83A0029 橡胶圈 Rubber Bushing 3
27 83A0008 橡胶圈 Rubber Bushing 1
