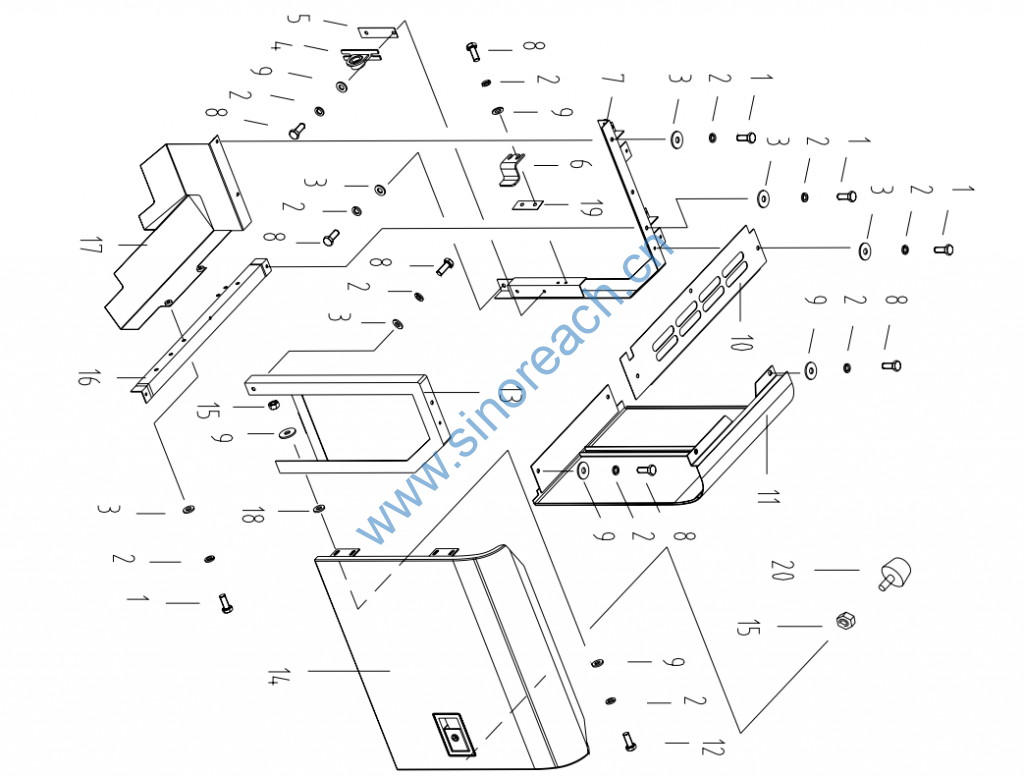

CLG200 机罩总成 Cover Assembly

00B0012 螺栓 M10×25-8.8-Zn.D Bolt 9 GB5783-86
2 06B0002 垫圈 10 Lock washer 26 GB93-87
3 06B0001 垫圈 10-140HV-Zn.D Washer 14 GB97.1-85
4 02D0008 支座 Bracket 1
5 10A0047 板 Shim 2
6 22A0012 锁板 Stopper 1
7 42D0028 支架 Support 1
8 00B0005 螺栓 M10×20-8.8-Zn.D Bolt 13 GB5783-86
9 06B0030 垫圈 10-140HV-Zn.D Washer 16 GB96-85
10 20A0064 盖板 Cover 1
11 42D0024 右侧盖板 Cover 1
12 00B0002 螺栓 M10×35-8.8-Zn.D Bolt 5 GB5783-86
13 42D0130 支架 Support 1
14 48C0040 门 Door 1
15 03B0053 螺母 M10-8-Zn.D Nut 4 GB6170-86
16 48D0002 角钢 Support 1
17 35D0001 围板 Cover 1
18 56A0091 垫片(二) Washer 4
19 10A0046 垫片 Plate 2
20 35C0002 缓冲头 Stopper 1
