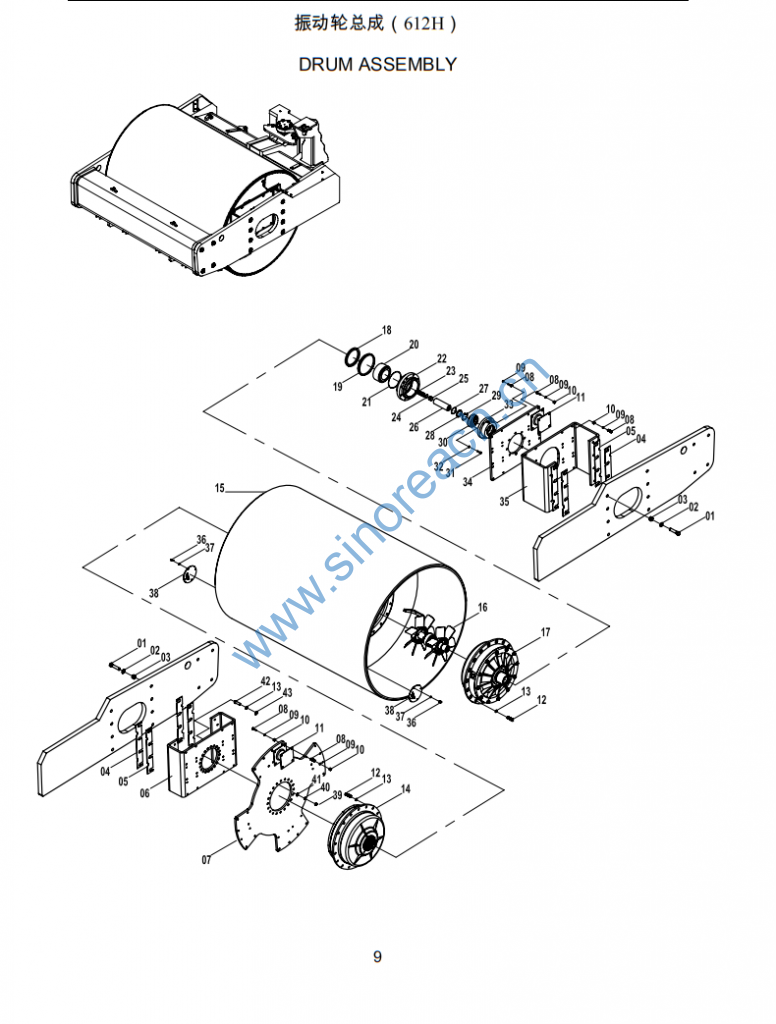

CLG612H/CLG614H 振动轮总成（612H）DRUM ASSEMBLY

01 01B0085 螺栓 BOLT 16
02 06B0068 垫圈 WASHER 16
03 03V0535 锁紧螺母 LOCK NUT 16
04 11U0028
调整垫片Ⅰ
ADJUSTING
SHIM
4
05 10U0024
调整垫片Ⅱ
ADJUSTING
SHIM
4
06 23A3497
左连接板
JUNCTION
PLATE
1
07 16A2485 驱动板 PLATE 1
08 00B0058 螺栓 BOLT 118
09 06B0008
垫圈
SPRING
WASHER
124
10 03B0003 螺母 NUT 112

11 35W0045
减振器
SHOCK
ABSORBER
14
12 01B0027 螺栓 BOLT 44
13 06B0015
垫圈
SPRING
WASHER
61
14 22W0025
左振动室
VIBRATORY
HOUSING
1
15 22D0269 滚轮 DRUM 1
16 41W0014 中间轴 MIDDLE SHAFT 1
17 22W0026
右振动室
VIBRATORY
HOUSING
1
18 13V0208 密封圈 SEAL 1
19 83U0010 密封圈 SEAL 1
20 23V0064
双列圆锥滚子轴承
ROLLER
BEARING
1
21 12V0447 O 形圈 O-RING 1
22 71U0007 轴承支座 BASE 1
23 75U0001 弹簧 SPRING 1
24 12V0429 O 型密封圈 O-RING
1
25 76U0008 挡圈 CIRCLIP
1

26 55U0041 花键套 SLEEVE
1
27 12V0117 O 形圈 O-RING
1
