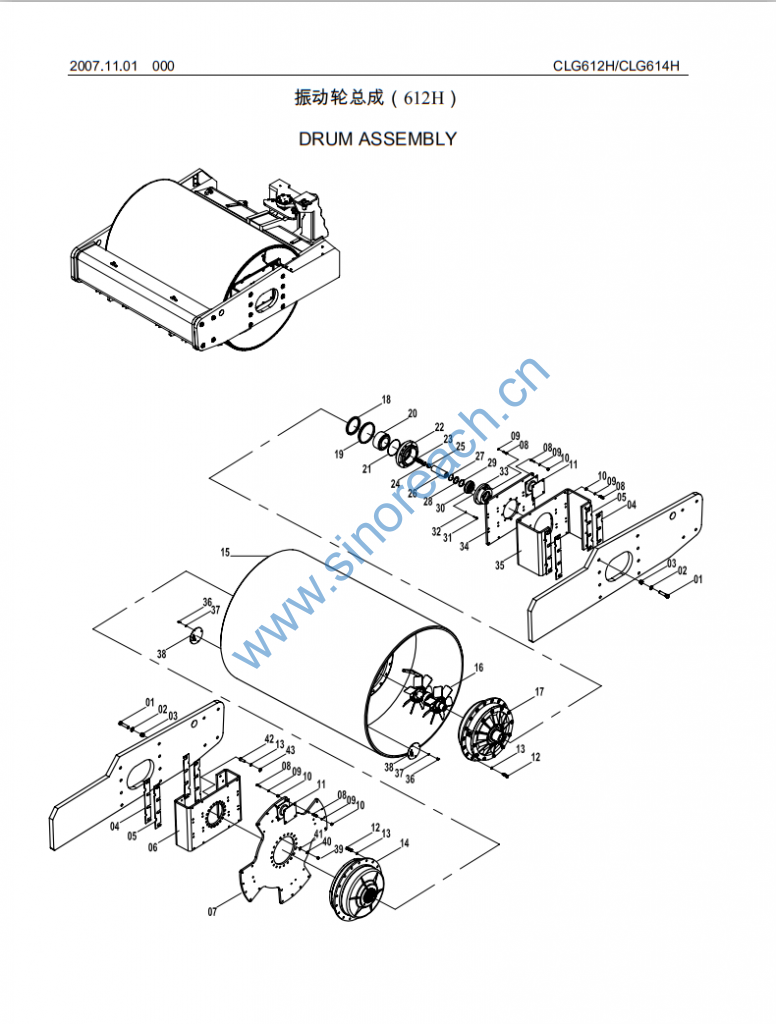

CLG612H/CLG614H 振动轮总成（612H）DRUM ASSEMBLY

28 13V0209 密封圈 SEAL
1
29 07B0003 挡圈 CIRCLIP
1
30 53U0030 端盖 COVER
1
31 04V0280 螺钉 SCREW
8
32 06B0002
垫圈
SPRING
WASHER
8
33 71U0030 振动马达支座 BASE
1
34 14U0044 支撑板 BRACKET
1
35 22U0082
连接板
JUNCTION
PLATE
1
36 00B0007 螺栓 BOLT
8
37 06B0006
垫圈
SPRING
WASHER
8
38 11U0002 盖板 COVER PLATE
2

39 03B0139 螺母 NUT
10
40 00B0042
垫圈
SPRING
WASHER
10
41 06B0067 垫圈 WASHER
10
42 00B0045 螺栓 BOLT
17
43 06B0012 垫圈 WASHER
17
